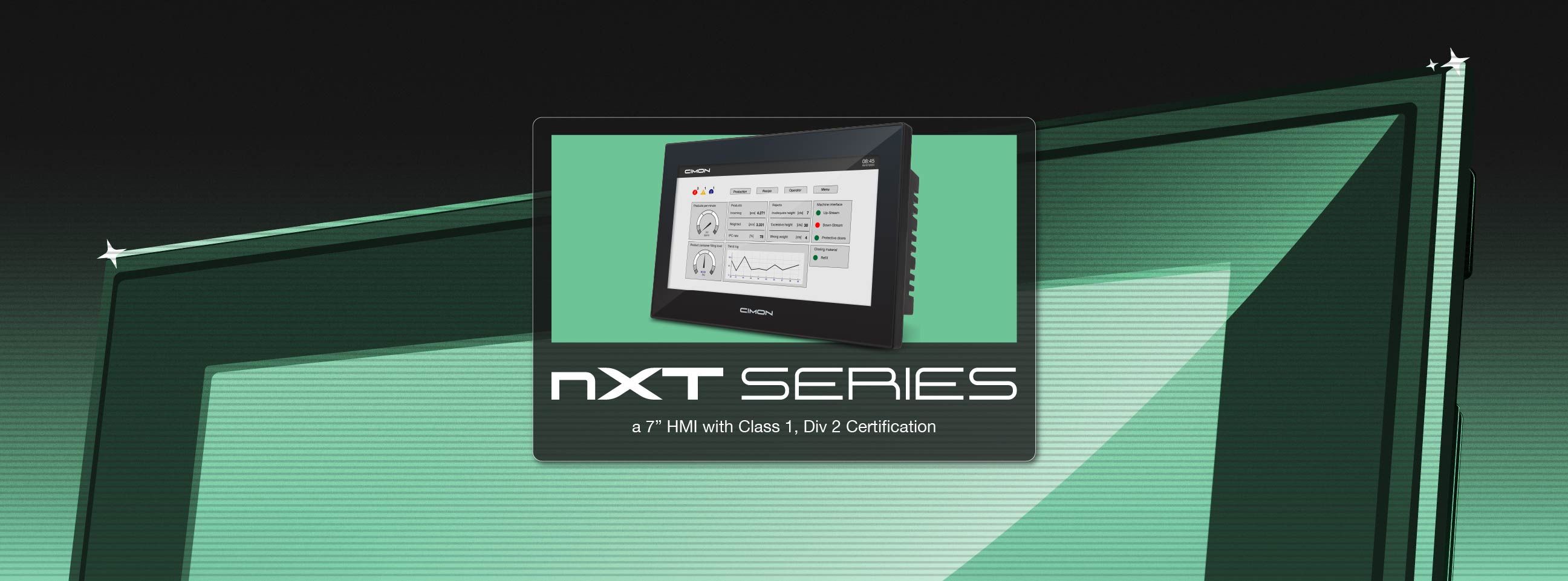

nXT SERIES HMI

Built for performance in harsh environments.

Class 1 Div 2 Certified

UL-rated for hazardous locations - the only HMI certified for explosive atmospheres.

High-Brightness Capacitive Touch

1000 nits brightness with 5-point multi-touch for clear visibility and responsive operation.

Extreme -20°C to 65°C Operation

Widest temperature range in its class for reliable performance in any environment.

Maximum Environmental Protection

IP68 front panel plus UL Type 4X (outdoor) and Type 12 (indoor) certifications ensure reliable operation anywhere.

Dual Ethernet with MQTT Support

Connect to control network while publishing data to cloud/IT systems via MQTT protocol.

Free Canvas Software Included

Complete HMI development environment with unlimited tags and screens - no licensing fees.

Product Filter

Find the right HMI for you.

Show Previous Models

CM-nXT07-D

7" Display, Class 1 Div 2 Rated, Capacitive Touch, 800×480 Resolution, 24 VDC, 2x Ethernet, 1x Serial, 1x USB-A, 1x USB mini-B, 1x SD/MMC Card, 1x Audio, -20–+65°C Operating Temperature

Compare Products

Powerful, Flexible, Complimentary HMI visualization software

Download for Windows

Seamless Device Connectivity

Effortlessly connect to various PLCs and devices using built-in drivers for Modbus, EtherNet/IP, OPC UA, MQTT, and more.

Real-Time Data Logging & Trends

Track digital and analog data over time with built-in logging tools and CSV exporting, ideal for diagnostics, audits, and performance monitoring.

Custom Automation with JavaScript ES5

Define intelligent, automated behavior for any object using an embedded JavaScript scripting environment.

Built-In Security and Audit Trail

Manage user roles and permissions, track all system changes, and ensure compliance with features like electronic audit logs, compliant with the FDA 21 CFR Part 11.

Built-In Offline & Online Simulators

Test and debug HMI projects in real time with Canvas’ integrated simulators.

Flexible Design for Any Application

Design dynamic interfaces with drag-and-drop objects, scalable vector graphics, multi-language support, and custom font integration.

Learn More

PRODUCT FAQ

Is the nXT series certified for use in hazardous environments?

Yes, the nXT is UL-approved for use in Class 1, Division 2 locations.

Does the nXT HMI have a wide operating temperature range?

Yes, it can operate in temperatures from -20°C to 65°C (-4°F to 149°F).

What type of touch panel does the nXT HMI have, and how does its display perform in bright conditions?

The nXT features a 5-point capacitive touch panel and has a high luminance of 1000 cd/m², which provides excellent visibility.
