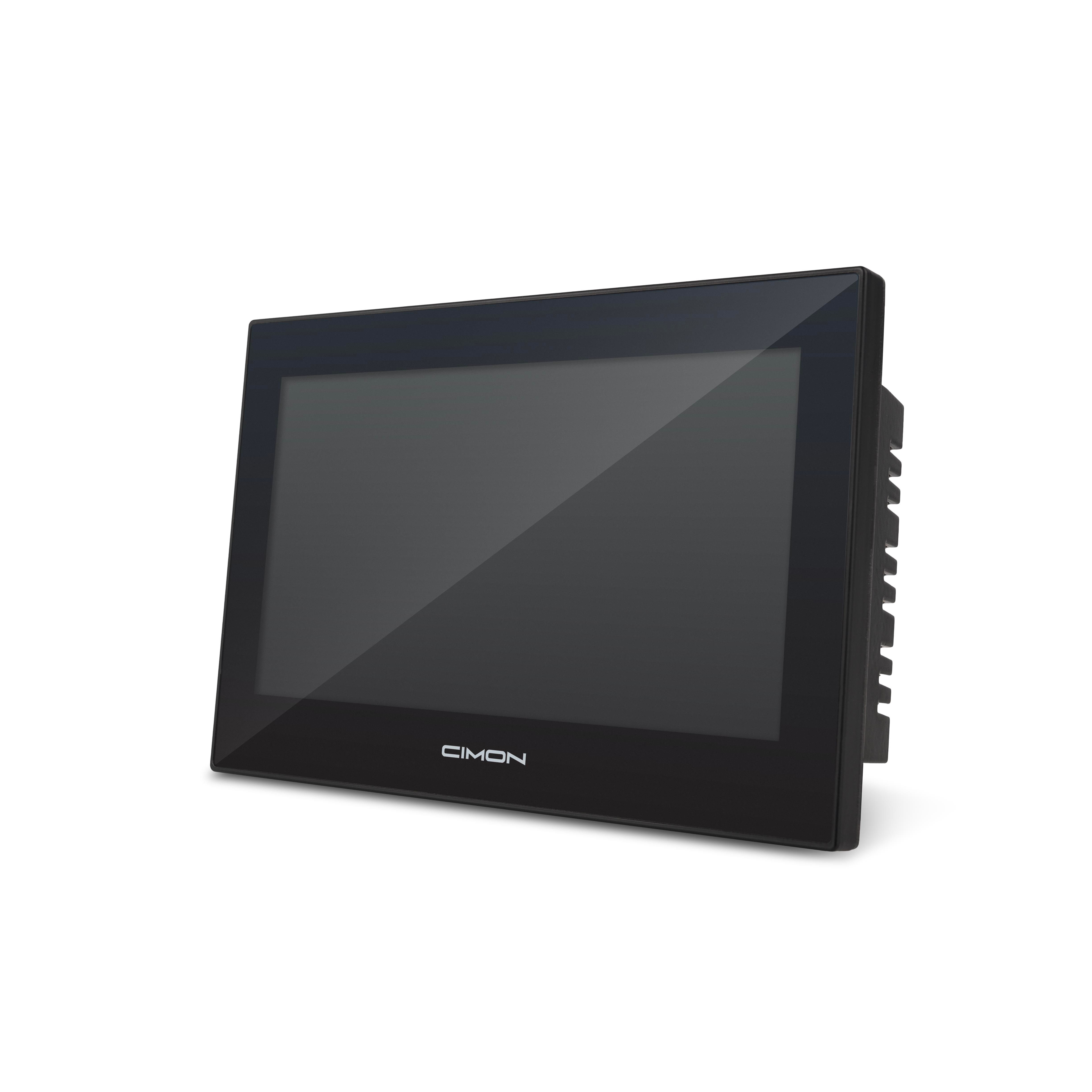

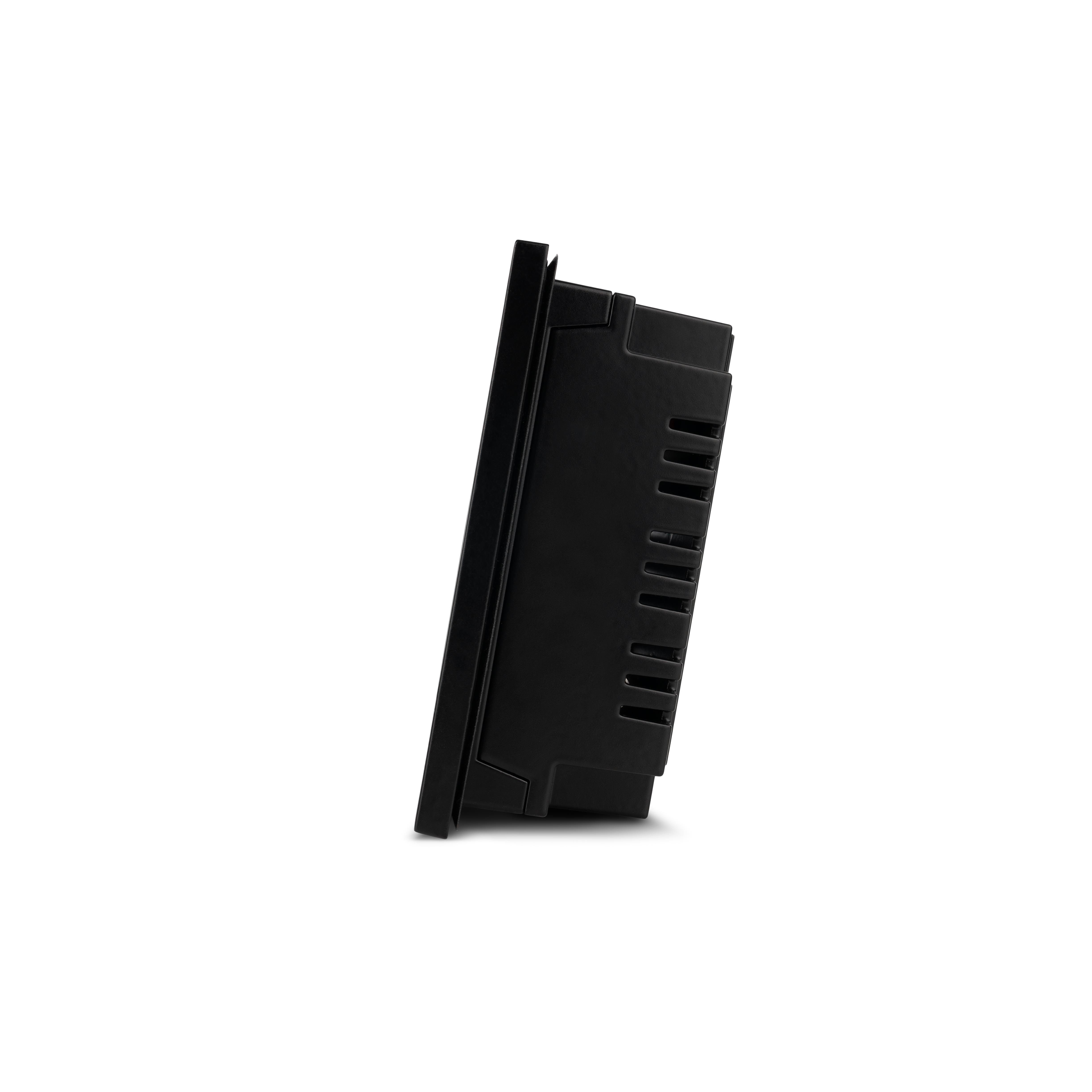

CM-nXT07-D

7 Inch, nXT Xpanel, Extreme HMI

7-inch Display
Aluminum Front Enclosure
Aluminum Rear Enclosure
Capacitive Multi Touch
800 x 480 Resolution
1,000 cd/m² Luminance
1 GB RAM
8 GB eMMC Storage
24 VDC Rated Voltage

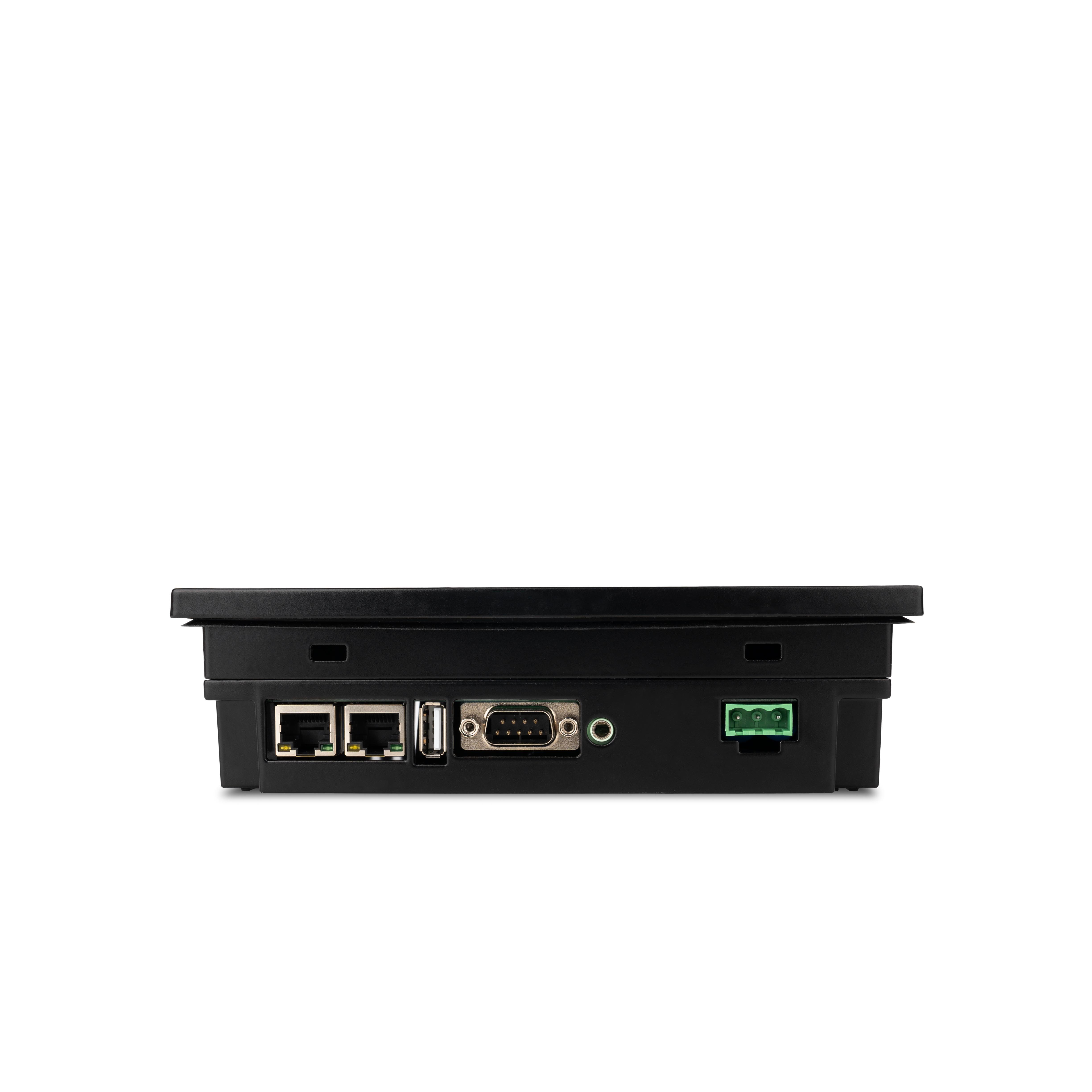

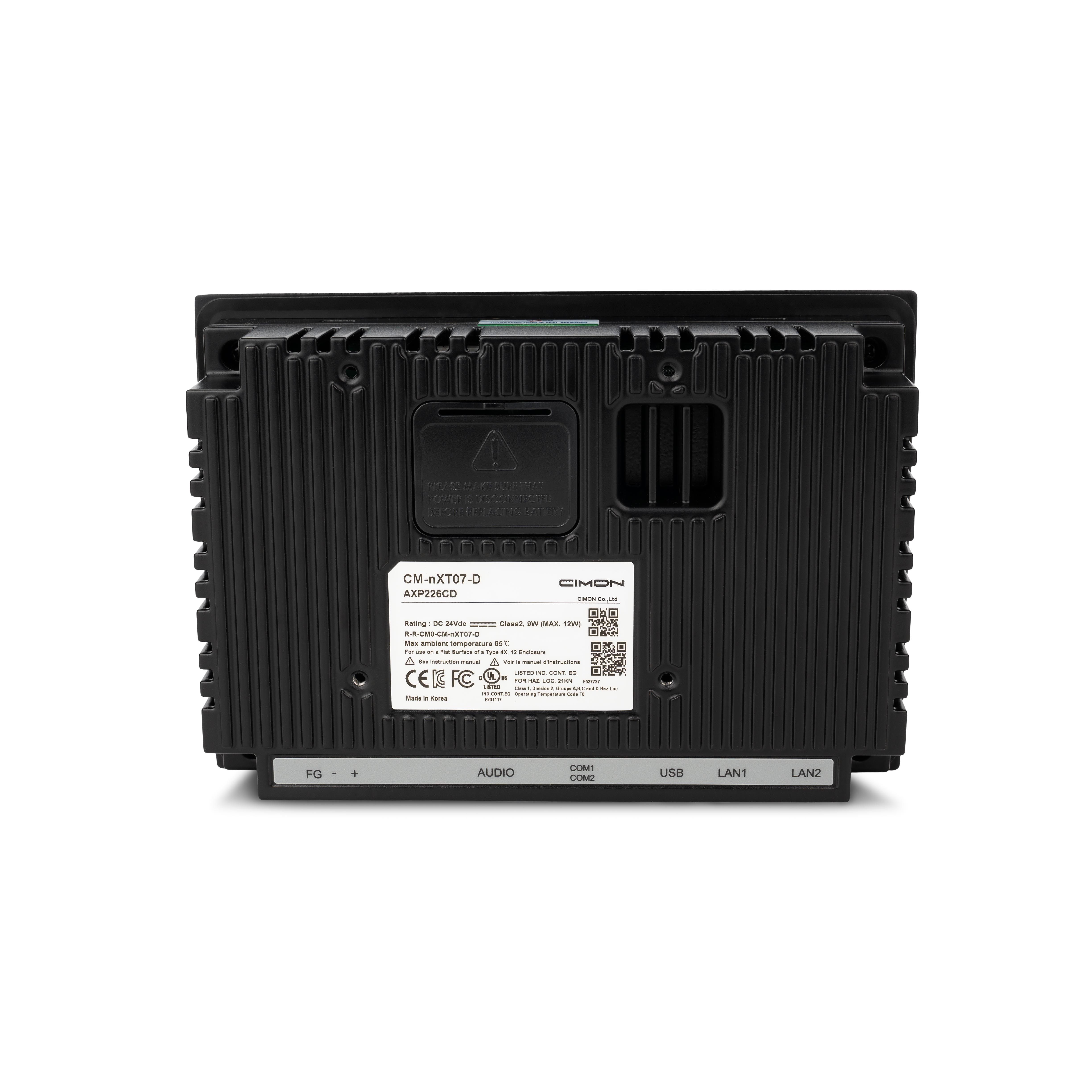

2x Ethernet
1x Serial
1x USB Type A

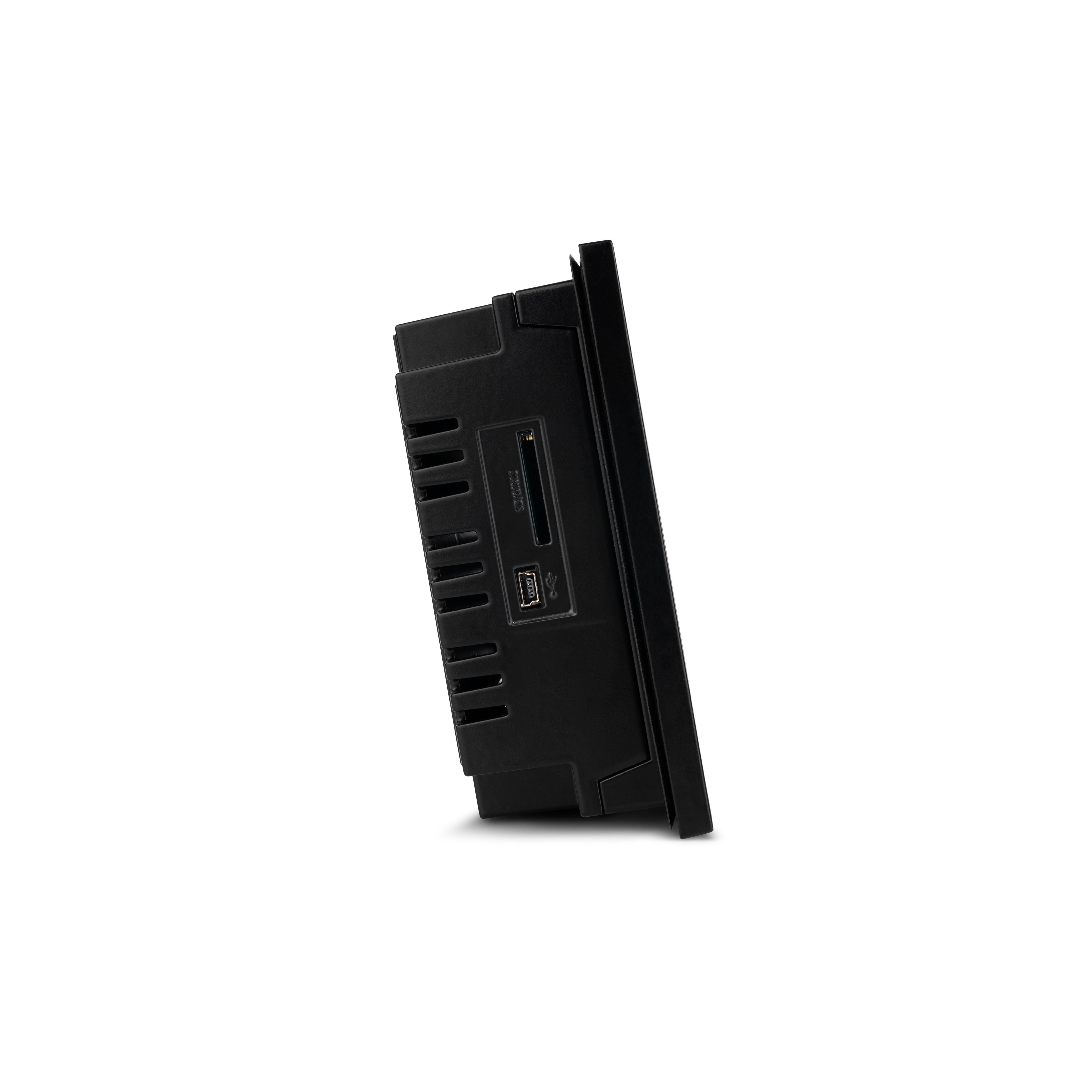

1x USB mini-B Slot [Tool Port]
1x SD/MMC Card
1x Audio
-20 – +65°C Operating Temperature
UL, UL Hazardous, CE, FCC, KC Agency Approvals
IP68 (Front) & IP20(Rear) Protection Class

Purchase Contact Us

CM-nXT07-D

7 Inch, nXT Xpanel, Extreme HMI

7-inch Display
Aluminum Front Enclosure
Aluminum Rear Enclosure
Capacitive Multi Touch
800 x 480 Resolution
1,000 cd/m² Luminance
1 GB RAM
8 GB eMMC Storage
24 VDC Rated Voltage
2x Ethernet
1x Serial
1x USB Type A
1x USB mini-B Slot [Tool Port]
1x SD/MMC Card
1x Audio
-20 – +65°C Operating Temperature
UL, UL Hazardous, CE, FCC, KC Agency Approvals
IP68 (Front) & IP20(Rear) Protection Class

Purchase Contact Us

Specifications

Enclosure - Front

Aluminum

Enclosure - Rear

Aluminum

LCD Size

7 inch TFT Color

Colors

16.7M

Resolution

WVGA 800 x 480

Effective Display Area

154.08(H) x 85.92(V) mm

PPI

Backlight

LED

Luminance

1,000 cd/m²

Contrast Ratio

500:1

Backlight Life

50,000 hours

Touch Panel

Capacitive (5 points)

Touch Panel Accuracy

Active Area Length(X)±2%, Width(Y)±2%

Display Orientation

Landscape (Standard, 180°), Portrait (90°, 270°)

Memory

1 GByte DDR3

Storage

8 GByte eMMC

SD Card

1 x SD/MMC slot

COM1

RS-422/485

COM2

RS-232

Ethernet

2 x 10/100/1000 ports

USB Host

1 x Type A

Tool Port

1 x USB mini-B

Audio

1 x port

Rated Voltage

24 VDC, Class 2

Inrush Current

30 A maximum

Power Consumption

9W (MAX: 12W)

Operating System

Embedded Linux

Project Memory

250 MB

User Memory

4 GB

Realtime Clock

Built-in

Acknowledgement Sound

Electronic buzzer

Agency Approvals - UL

UL61010-1 / UL61010-2-201 (E231117)

Agency Approvals - UL Hazardous

UL 121201 (E527727)

Agency Approvals - CE

Electromagnetic Compatibility Directive 2014/30/EU (EMC)

Agency Approvals - FCC

The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement

Agency Approvals - KC

Registration of Broadcasting and Communication Equipment

Agency Approvals - Protection Class

IP68 (front), IP20 (rear)
Type : 4X, 12

Operating Temperature

-20°C – 65°C (-4°F – 149°F)

Storage Temperature

-20°C – 65°C (-4 - 149°F)

Operating Humidity

10 – 90% RH (below 29°C, not condensed)

Storage Humidity

10 – 90% RH (below 39°C, not condensed)

Altitude (Air Pressure)

800 hPa – 1114 hPa (2000 m/6,500 ft or less)

Dust Exposure Allowance

≤ 0.1 mg/m³ (No conductive dust allowed)

Pollution Degree

≤ 2

Corrosion Immunity

No corrosive gas or dust

Vibration Protection

JIS B 3502, IEC/EN 61131-2 compliant
5–9 Hz Single amplitude: 3.5 mm
9–150 Hz Fixed acceleration: 9.8 m/s²
X, Y, Z directions for 10 cycles (approx. 100 min)

Shock Protection

JIS B 3502, IEC/EN 61131-2 compliant
147 m/s², X, Y, Z directions for ±3 times (Total 18 times)

Noise Protection

Impulse, EFT/Burst, Surge, ±2 kV, 1 us

Electrostatic Discharge

4 kV (Contact Discharge) (IEC 61000-4-2)
8 kV (Air Discharge) (IEC 61000-4-2)

Dimensions

189 x 131 x 53.4 mm (7.44 x 5.16 x 2.10 in)

Panel Cut

177 x 119 mm (6.97 x 4.69 in)

Weight

0.879 kg (1.94 lbs)
