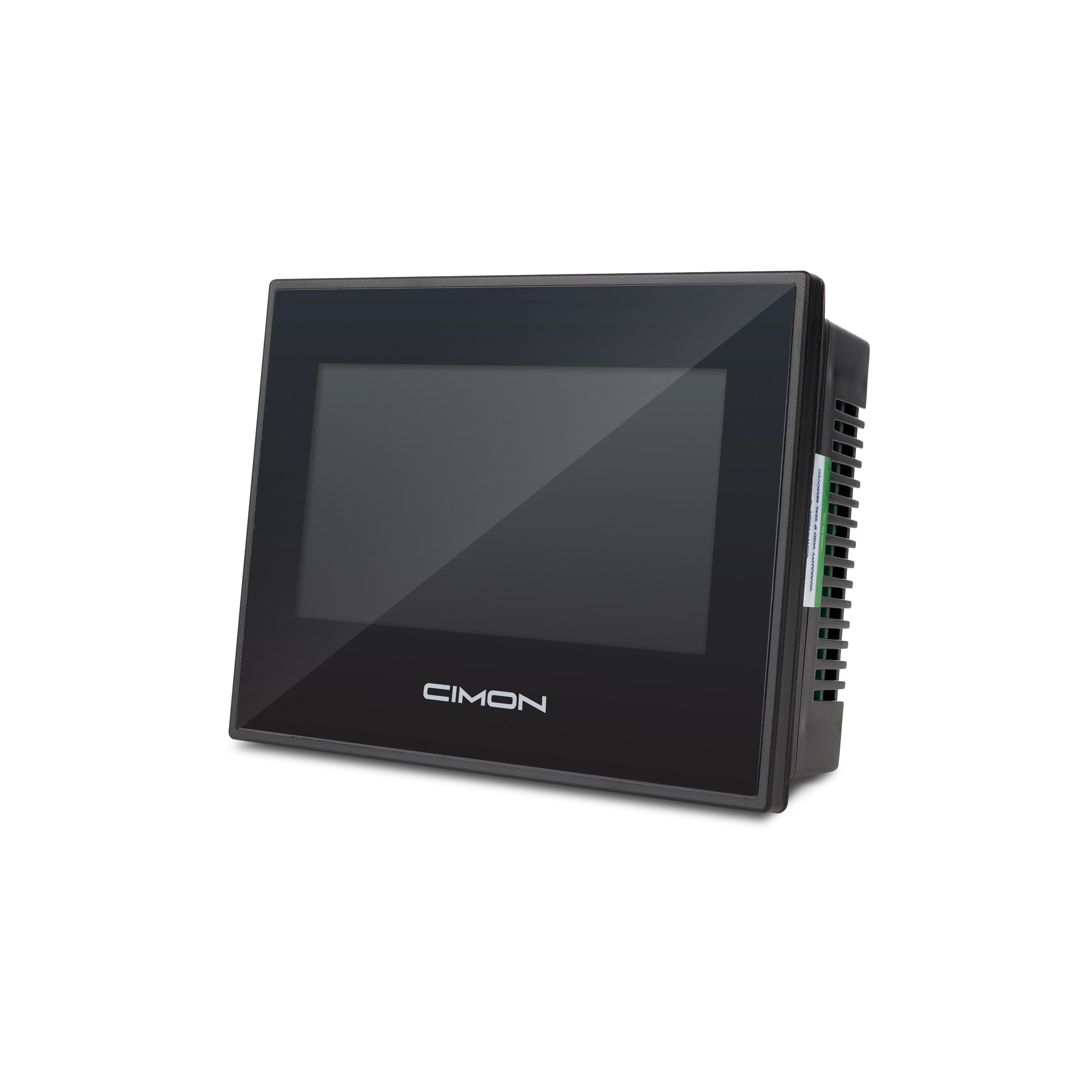

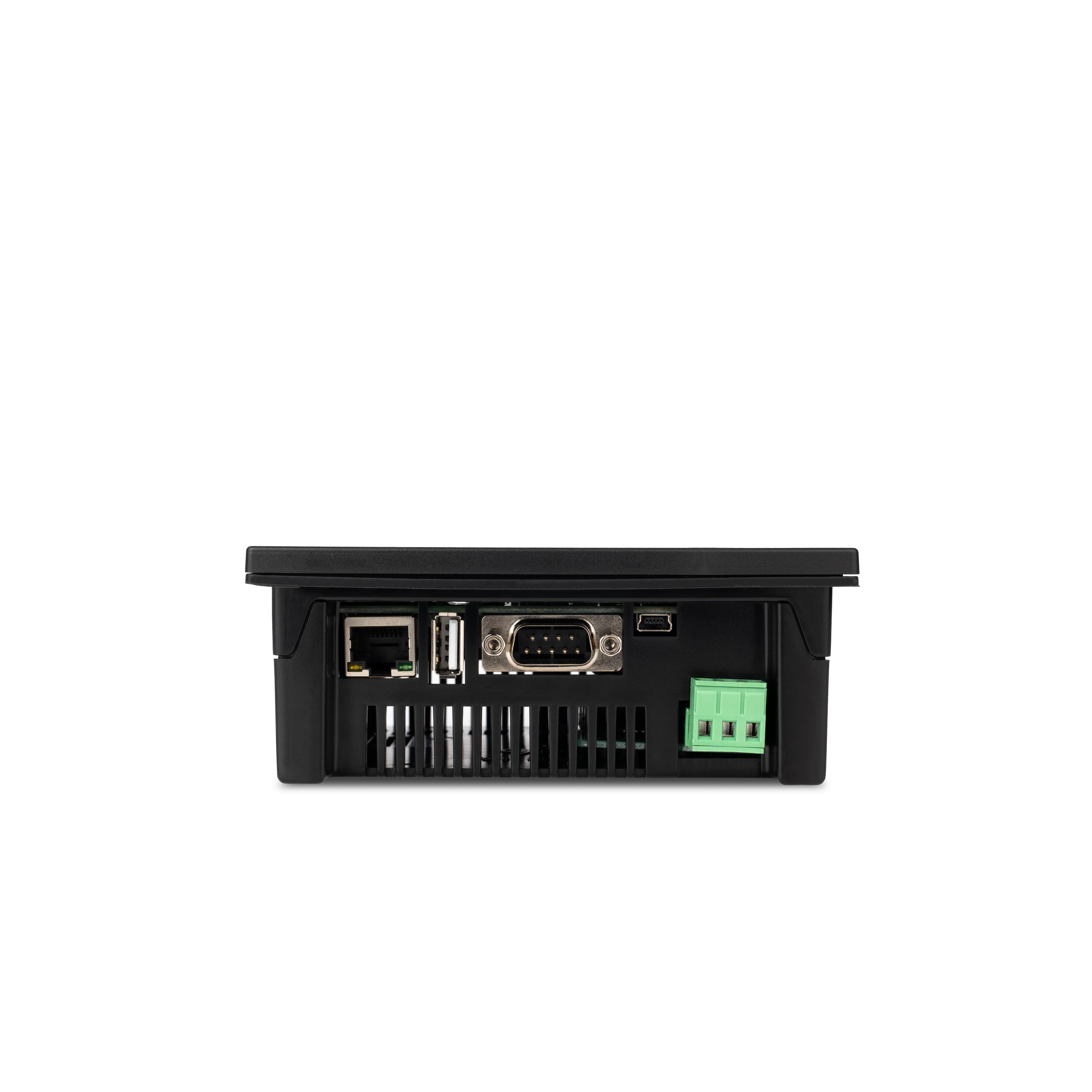

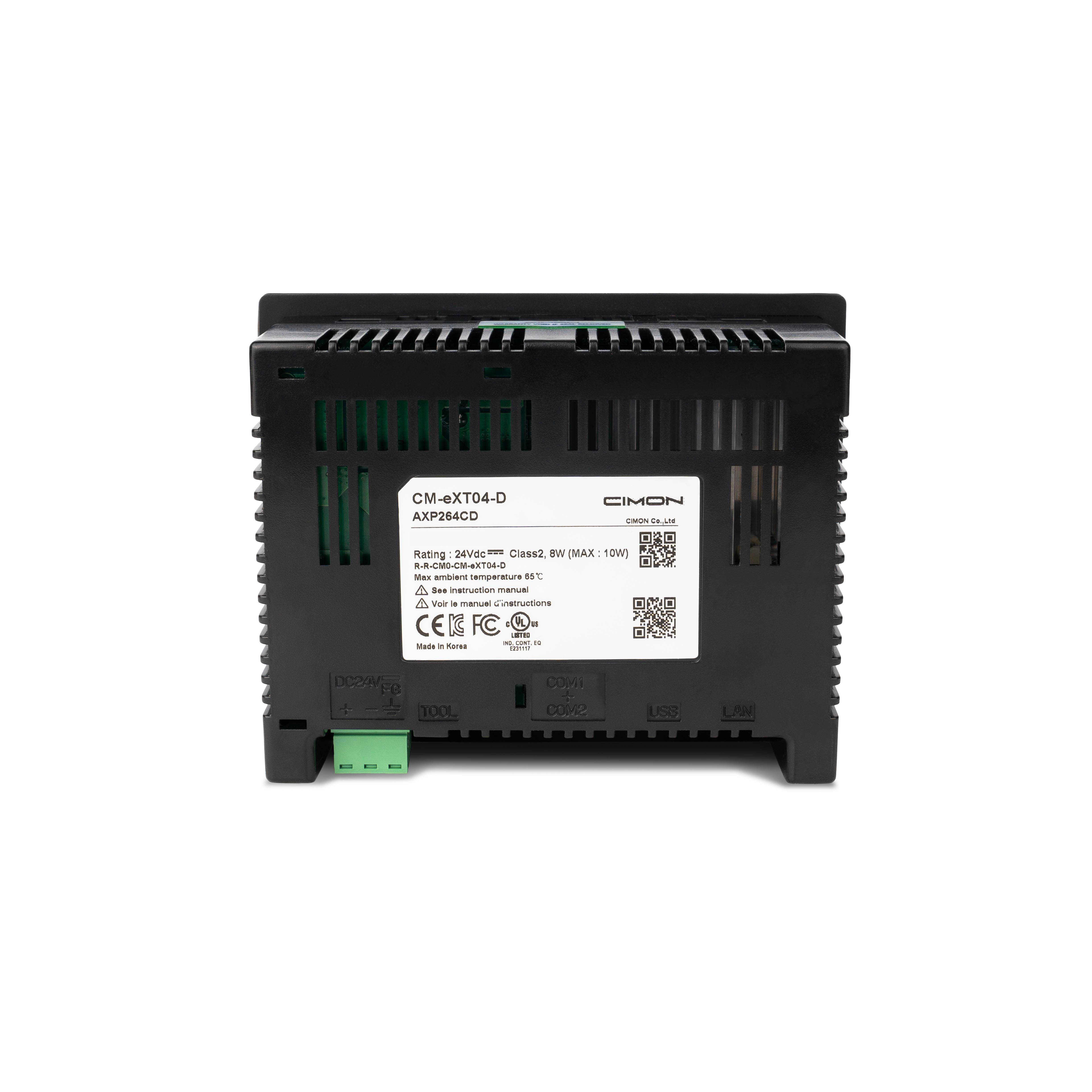

CM-eXT04-D
4.3 inch, eXT Xpanel, Base HMI
- 4.3-inch Display
- Plastic Front/Rear Enclosure
- Resistive Single Touch
- 800 x 480 Resolution
- 600 cd/m² Luminance
- 8 GB eMMC Storage
- 24 VDC Rated Voltage
- 1x Ethernet
- 1x Serial
- 1x USB Type A
- 1x USB mini-B Slot [Tool Port]
- 0 – 65°C Operating Temperature
- UL, CE Agency Approvals
- IP65 (Front) Protection Class
PrintCM-eXT04-D
4.3 inch, eXT Xpanel, Base HMI
Print- 4.3-inch Display
- Plastic Front/Rear Enclosure
- Resistive Single Touch
- 800 x 480 Resolution
- 600 cd/m² Luminance
- 8 GB eMMC Storage
- 24 VDC Rated Voltage
- 1x Ethernet
- 1x Serial
- 1x USB Type A
- 1x USB mini-B Slot [Tool Port]
- 0 – 65°C Operating Temperature
- UL, CE Agency Approvals
- IP65 (Front) Protection Class
Specifications
Functional
Enclosure - Front
Plastic
Enclosure - Rear
Plastic
LCD Size
4.3 inch TFT Color
Colors
16.7M
Resolution
WVGA 800 x 480
Effective Display Area
95.04 (H) x 53.86 (V) mm
PPI
217
Backlight
LED
Luminance
600 cd/m²
Contrast Ratio
1200:1
Backlight Life
50,000 hours
Touch Panel
4 Wire Resistive
Touch Panel Accuracy
Active Area Length(X)±2%, Width(Y)±2%
Display Orientation
Landscape (Standard, 180°), Portrait (90°, 270°)
Memory
512 MByte DDR3
Storage
8 GByte eMMC
SD Card
-
COM1
RS-422/485
COM2
RS-232
Ethernet
1 x 10/100/1000 Mbps port
USB Host
1 x Type A
Tool Port
1 x USB mini-B
Audio
-
Rated Voltage
24 VDC, Class 2
Inrush Current
30 A maximum
Power Consumption
9 W (MAX: 10 W)
Operating System
Embedded Linux
Project Memory
250 MB
User Memory
4 GB
Realtime Clock
Built-in
Acknowledgement Sound
Electronic buzzer
Agency Approvals - UL
UL61010-1 / UL61010-2-201 (E231117)
Agency Approvals - CE
Electromagnetic Compatibility Directive 2014/30/EU (EMC)
Agency Approvals - FCC
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement
Agency Approvals - KC
Registration of Broadcasting and Communication Equipments
Agency Approvals - Protection Class (Front)
IP65, NEMA Type 4X, 12
Environmental
Operating Temperature
0 – 65°C (32 –149°F)
Storage Temperature
-20°C – 65°C (-4 - 149°F)
Operating Humidity
10 – 90% RH (below 29°C, not condensed)
Storage Humidity
10 – 90% RH (below 39°C, not condensed)
Altitude (Air Pressure)
800 hPa – 1114 hPa (2000 m/6,500 ft or less)
Dust Exposure Allowance
≤ 0.1mg/m³ (No conductive dust allowed)
Pollution Degree
≤ 2
Corrosion Immunity
No corrosive gas or dust
Vibration Protection
JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)
Shock Protection
JIS B 3502, IEC/EN 61131-2 compliant 147 m/s², X, Y, Z directions for ±3 times (Total 18 times)
Noise Protection
Impulse, EFT/Burst, Surge, ±0.5 kV
Electrostatic Discharge
4 kV (Contact Discharge) 8 kV (Air Discharge) (IEC 61000-4-2)
Physical
Dimensions
128 x 102 x 50 mm (5 x 4 x 2 in)
Panel Cut
120 x 94 mm (4.7 x 3.7 in)
Weight
0.3 kg (0.66 lb)
