CM-IM-15W-CH-D

15.6 Inch High-Brightness Capacitive Touch Industrial Monitor

  • 15.6-inch Display
  • 10-Point Capacitive Touch
  • 1920 x 1080 Resolution
  • 1,200 cd/m² Luminance
  • 800:1 Contrast Ratio
  • 9~36 VDC Rated Voltage
  • 1x HDMI
  • 1x DP
  • 1x DVI
  • 1x VGA
  • -20 – +70°C Operating Temperature
  • CE, FCC, KC Agency Approvals
  • IP68 (Front) Protection Class
PrinterPrint

CM-IM-15W-CH-D

15.6 Inch High-Brightness Capacitive Touch Industrial Monitor

PrinterPrint
  • 15.6-inch Display
  • 10-Point Capacitive Touch
  • 1920 x 1080 Resolution
  • 1,200 cd/m² Luminance
  • 800:1 Contrast Ratio
  • 9~36 VDC Rated Voltage
  • 1x HDMI
  • 1x DP
  • 1x DVI
  • 1x VGA
  • -20 – +70°C Operating Temperature
  • CE, FCC, KC Agency Approvals
  • IP68 (Front) Protection Class

Specifications

Functional

Enclosure - Front
Aluminum
Enclosure - Rear
Aluminum
LCD Size
15.6 inch
Resolution
1920X1080 FHD (16:9)
Backlight
LED
Luminance
1,200 cd/m²
Display Colors
16.7M Colors
Contrast Ratio
800:1
View Angles (R/L/U/D)
89° / 89° / 89° / 89°
Active Area (mm)
344.16 (H) x 193.59 (V)
Backlight Life
50,000 hours
Touch
10-Point Capacitive
Touch Interface
USB

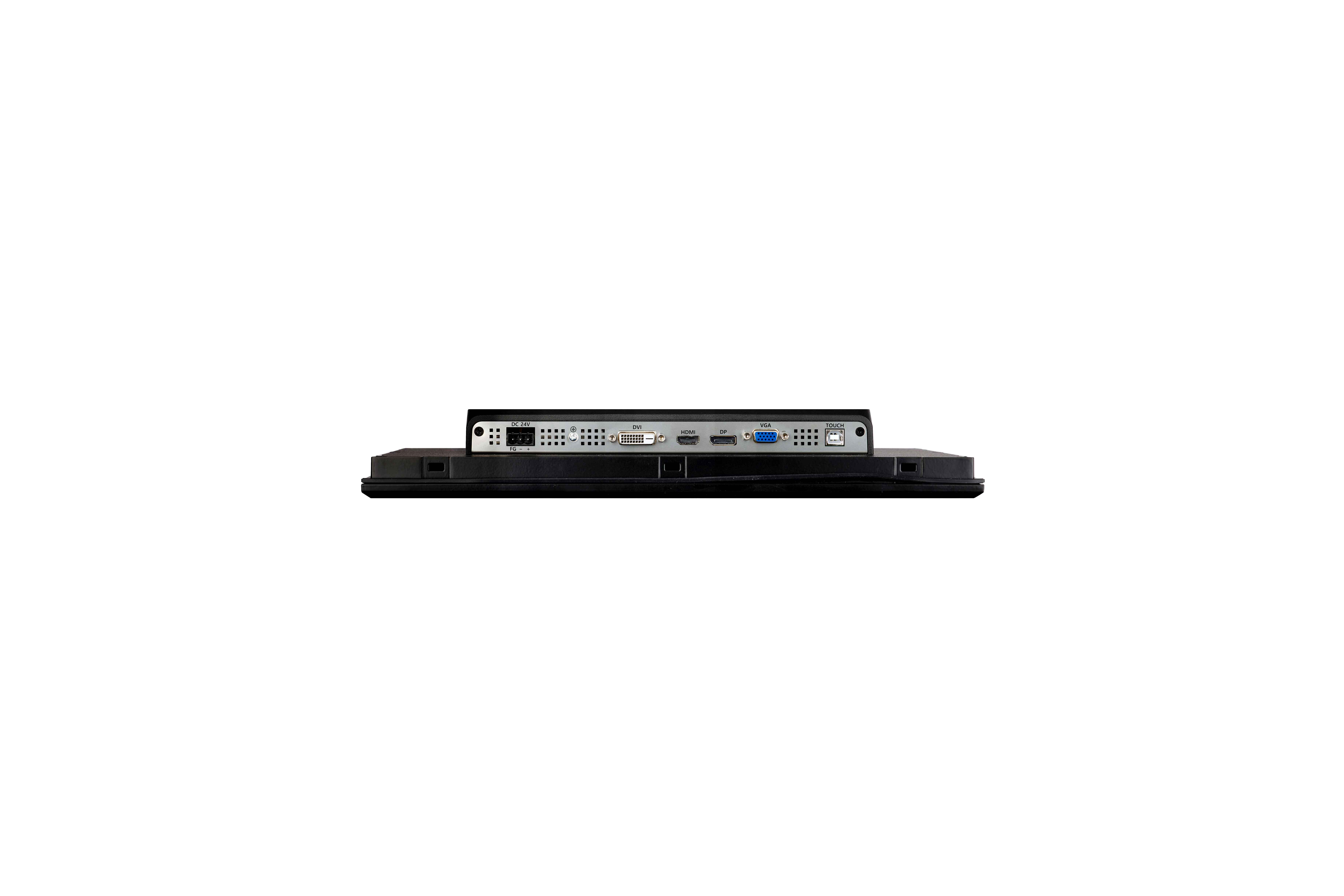

Display Ports
1x HDMI
1x DP
1x DVI
1x VGA
Power Supply
DC 9~36V
Power Consumption
Max 30.8 W
Agency Approvals
KC, CE, FCC
Agency Approvals - Protection Class
IP68 (front)

Environmental

Operating Temperature
-20°C – +70°C (-4 – +158°F)
Storage Temperature
-20°C – +80°C ( -4 – +176 °F)
Operating Humidity
10–90% RH (below 29℃, not condensation)
Storage Humidity
10–90% RH (below 39℃, not condensation)
Environment Condition
800 hPa–1114 hPa (2000 m or less)
Dust
≤ 0.1 mg/m³
Pollution Degree
≤ Pollution degree 2
Operating ambience
No corrosive gas and dust
Vibration Resistance
5–9 Hz Single amplitude: 3.5 mm
9–150 Hz Fixed acceleration: 9.8 m/s² (1G)
X, Y, Z directions for 10 times
Shock Resistance
Max. Shock acceleration : 147m/s² (15G)
Duration : 11ms
Pulse Waveform : Half-sine pulse (X,Y,Z directions for 3 times)
Noise Resistance
Impulse, EFT/Burst, Surge, ±0.5 KV
Electrostatic Discharge
Contact Discharge ±4 kV
Air Discharge ±8 kV

Physical

Dimensions
393.6 x 247.9 x 55.6 mm (15.49 x 9.76 x 2.19 in)
Panel Cut
385 x 239 mm (15.16 x 9.41 in)
Weight
3.7 kg (8.16 lb)
VESA Mount
75 x 75 mm (2.95 x 2.95 in)
