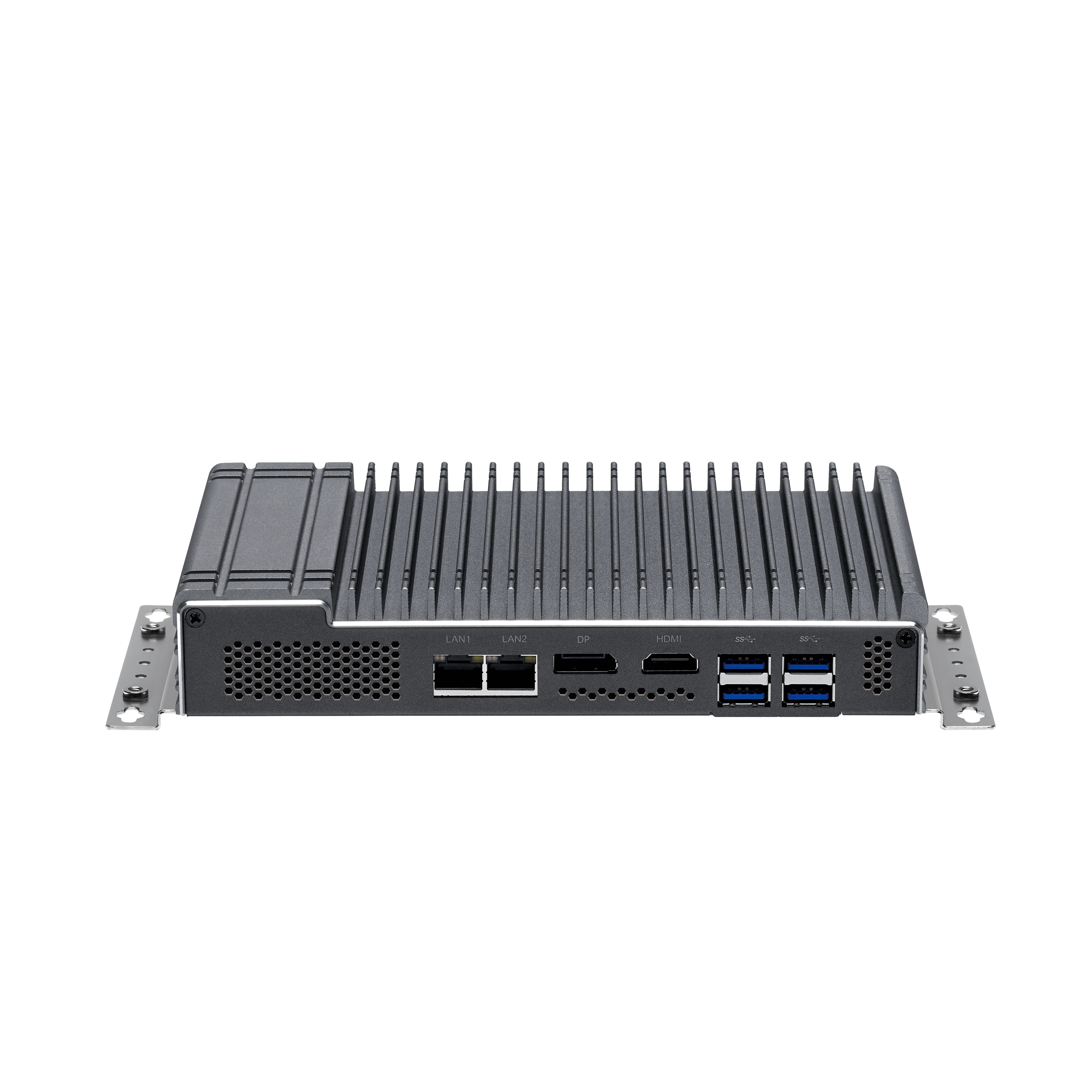

CM-NB5011-D
Intel 11th Gen Core i5 Fanless Industrial Box PC
- 11th Intel® Core™ i5-1145G7E Quad Core, Fanless CPU
- ThinManager Compatible
- 8 GB RAM
- 500 GB SSD
- 24 VDC Rated Voltage
- 2x Ethernet
- 1x Serial
- 4x USB 3.0
- 1x HDMI
- 1x DP
- 1x Audio Line-Out
- -20 – +60°C Operating Temperature
- UL, CE, FCC, KC Agency Approvals
PrintCM-NB5011-D
Intel 11th Gen Core i5 Fanless Industrial Box PC
Print- 11th Intel® Core™ i5-1145G7E Quad Core, Fanless CPU
- ThinManager Compatible
- 8 GB RAM
- 500 GB SSD
- 24 VDC Rated Voltage
- 2x Ethernet
- 1x Serial
- 4x USB 3.0
- 1x HDMI
- 1x DP
- 1x Audio Line-Out
- -20 – +60°C Operating Temperature
- UL, CE, FCC, KC Agency Approvals
Specifications
Functional
CPU
11th Intel® Core™ i5-1145G7E Quad Core, 1.5 GHz, 8M Cache (15W)
Memory
260-pin DDR4 SO-DIMM (Max. 32GB) (Default 8GB)
Storage
1 x M.2 2280 Key M 500 GB (PCIe x4 only)
Operating System
Windows 11 IoT Enterprise (Default) / Windows 11 Pro / Linux
Graphics
Intel® Iris® Xe graphics
Display Ports
1 x DP++, support 4096 x 2304 @ 60Hz 1 x HDMI 2.0, support 4096 x 2160 @ 60Hz
COM 1
1 x RS232/422/485 port (default: RS232)
Ethernet
2 x Gigabit Ethernet (10/100/1000BaseTX) ports
USB
4 x USB 3.0 ports
Audio
1 x Line-out port
Power Supply
DC 24 V (MAX: DC 28.8 V)
Power Consumption
36 W (Max : 67 W)
Utility Program
UWF, Winclon 6.0 (Recovery System)
Agency Approvals - UL
UL61010-1 / UL61010-2-201 (E231117)
Agency Approvals - CE
Electromagnetic Compatibility Directive 2014/30/EU (EMC)
Agency Approvals - FCC
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement
Agency Approvals - KC
Registration of Broadcasting and Communication Equipment
Agency Approvals - Protection Class
IP20
Environmental
Operating Temperature
-20 – + 60°C (-4 – +140°F)
Storage Temperature
-20 – + 80°C (-4 – +176°F)
Operating Humidity
10%–90% RH (Below 29°C, No dew condensation)
Storage Humidity
10%–90% RH (Below 39°C, No dew condensation)
Environment Condition
800–1114 hPa (2000 m/6,500 ft or less)
Dust
≤ 0.1 mg/m³
Pollution Degree
≤ Pollution Degree 2
Operating ambience
No corrosive gas and dust
Vibration Resistance
JIS B 3502, IEC/EN 61131-2 compliant 5–9 Hz Single amplitude: 3.5 mm 9–150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min)
Shock Resistance
JIS B 3502, IEC/EN 61131-2 compliant 147m/s², X, Y, Z directions for ±3 times (Total 18 times)
Noise Resistance
Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance
Contact Discharge 4 kV (IEC 61000-4-2) Air Discharge 8 kV (IEC 61000-4-2)
Physical
Dimensions
227.6 x 132.6 x 42.0 mm (9.0 x 5.2 x 1.7 in)
Weight
1.27 kg (2.80 lbs)
Mounting
DIN rail
