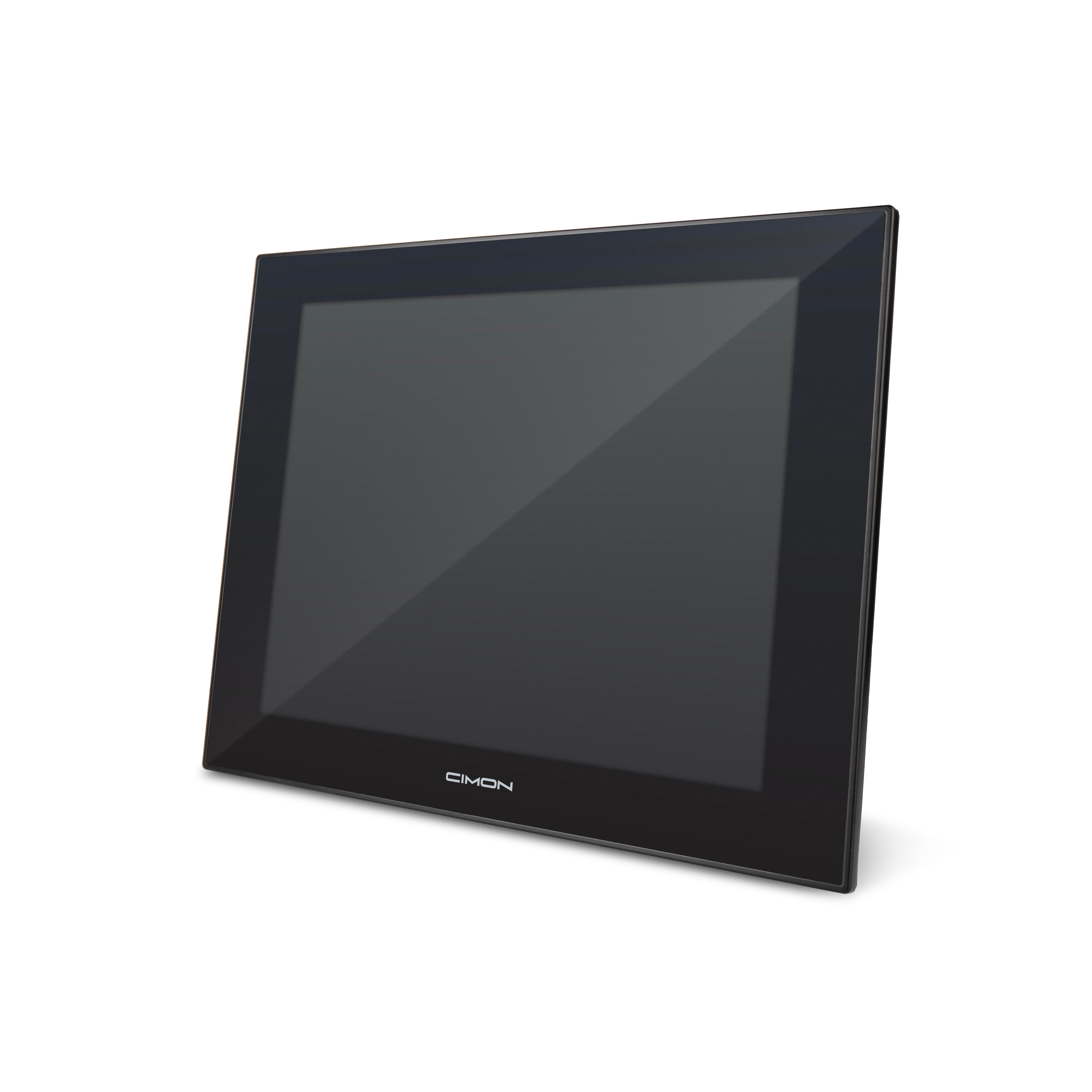

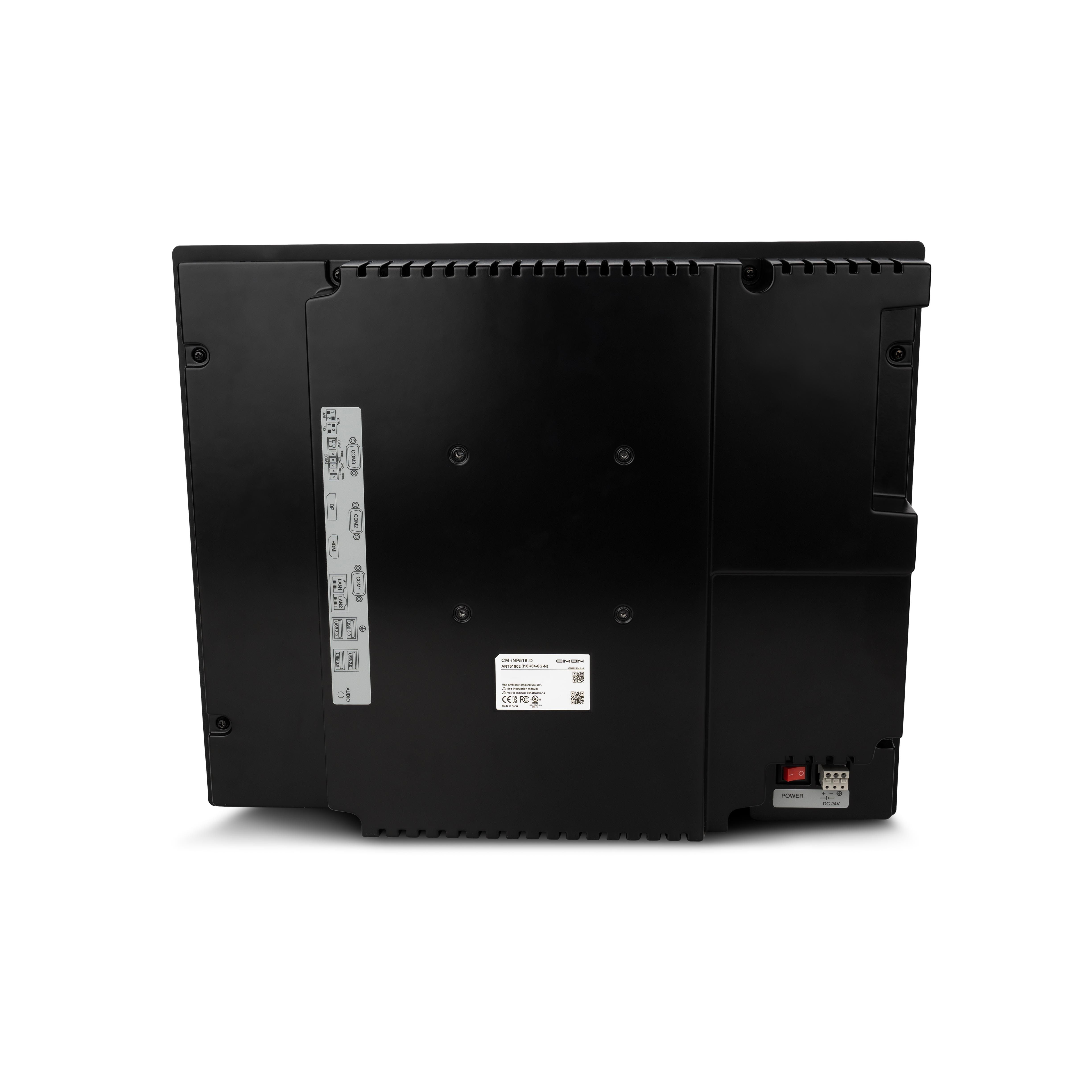

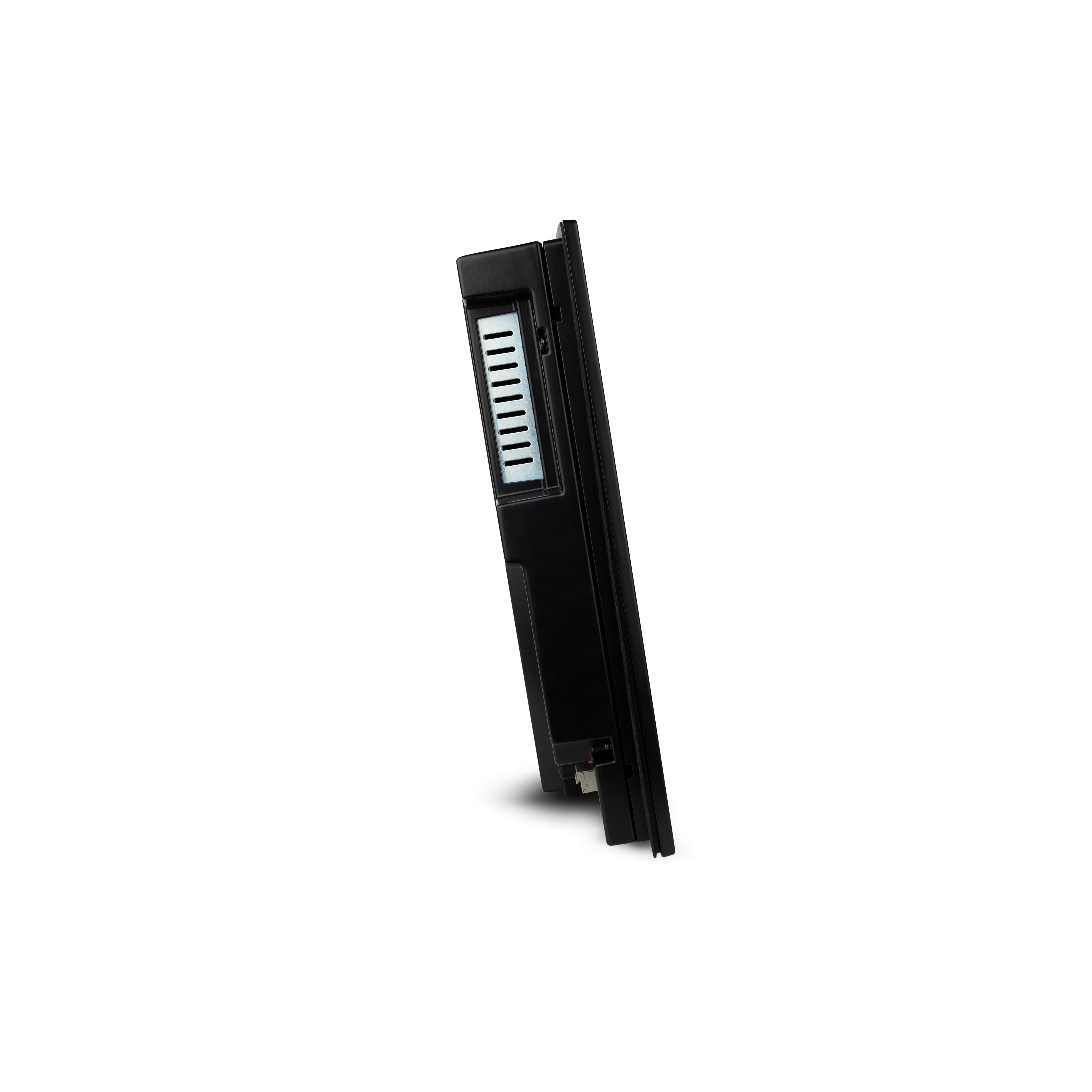

CM-iNP519-D
19 Inch Intel Celeron J6412 Fanless Industrial Panel PC
- 19-inch Display
- Intel® Celeron® Quad-Core J6412 SoC (FANLESS)
- Resistive Single Touch
- 1280 x 1024 Resolution
- 400 cd/m² Luminance
- 8 GB RAM
- 250 GB SSD
- 24 VDC Rated Voltage
- 2x Ethernet
- 4x Serial
- 3x USB 3.0
- 1x USB 2.0
- 1x HDMI
- 1x DP
- 1x Audio Line-Out
- 0 – +50°C Operating Temperature
- UL, CE, FCC, KC Agency Approvals
- IP66 (Front) Protection Class
PrintCM-iNP519-D
19 Inch Intel Celeron J6412 Fanless Industrial Panel PC
Print- 19-inch Display
- Intel® Celeron® Quad-Core J6412 SoC (FANLESS)
- Resistive Single Touch
- 1280 x 1024 Resolution
- 400 cd/m² Luminance
- 8 GB RAM
- 250 GB SSD
- 24 VDC Rated Voltage
- 2x Ethernet
- 4x Serial
- 3x USB 3.0
- 1x USB 2.0
- 1x HDMI
- 1x DP
- 1x Audio Line-Out
- 0 – +50°C Operating Temperature
- UL, CE, FCC, KC Agency Approvals
- IP66 (Front) Protection Class
Specifications
Functional
Enclosure - Front
Aluminum
Enclosure - Rear
Aluminum
Display
19" TFT LCD
CPU
Intel® Celeron® Quad-Core J6412 SoC (FANLESS)
Memory
DDR4 SDRAM 8GB (Max. 32GB)
Storage
SATA × 1 (SSD 250G Byte)
Operating System
Windows 10 IoT Enterprise (Default) / Windows 11 IoT Enterprise / Windows 11 Pro / Linux
Graphics
Integrated Intel HD Graphic
Resolution
1280 x 1024 (SXGA)
Backlight
LED
Luminance
400 cd/m²
Backlight Life
50,000 hours
Touch
Analog Resistive

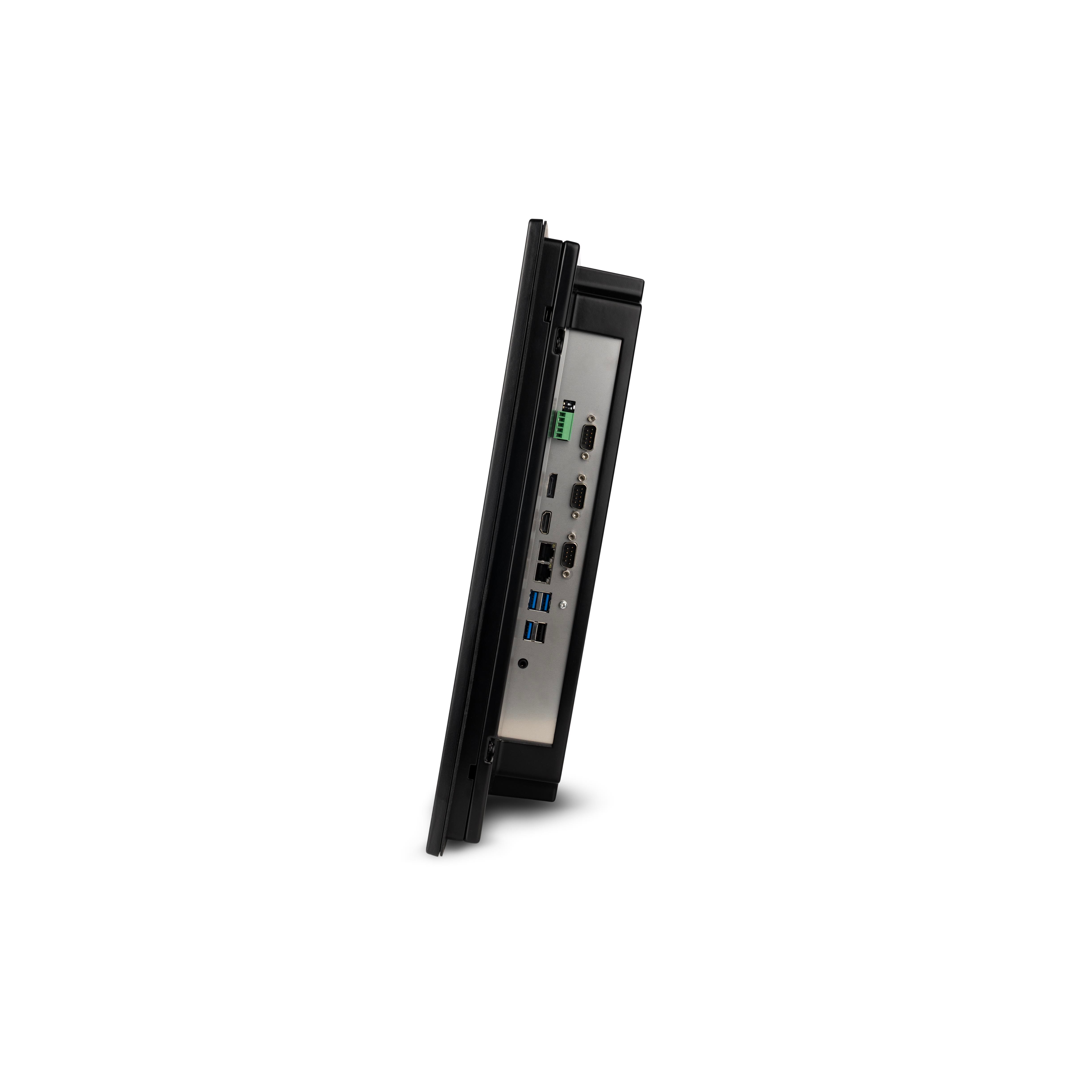

Display Ports
1 x HDMI port 1 x DP port
COM 1
1 x RS232/422/485 port (default: RS232)
COM 2
2 x RS-232 ports
COM 3
2 x RS-232 ports
COM 4
1 x RS-422/485 port
Ethernet
2 x Gigabit Ethernet ports
USB
3 x USB 3.0 ports 1 x USB 2.0 port
Audio
1 x Line-Out port, Line-In port
Power Supply
DC 24V
Power Consumption
44 W (MAX: 57 W)
Utility Program
UWF, Winclon 6.0 (Recovery System)
Agency Approvals - UL
UL61010-1 / UL61010-2-201 (E231117)
Agency Approvals - CE
Electromagnetic Compatibility Directive 2014/30/EU (EMC)
Agency Approvals - FCC
The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement
Agency Approvals - KC
Registration of Broadcasting and Communication Equipment
Agency Approvals - Protection Class
IP66 (front)
Environmental
Operating Temperature
0 – +50°C (32 – +122°F)
Storage Temperature
-20 – +60°C (-4 – +140°F)
Operating Humidity
10%–90% RH (Below 29°C, No dew condensation)
Storage Humidity
10%–90% RH (Below 39°C, No dew condensation)
Environment Condition
800–1114 hPa (2000 m/6,500 ft or less)
Dust
≤ 0.1 mg/m³
Pollution Degree
≤ Pollution Degree 2
Operating Ambience
Free from corrosive gas and excessive dust
Overvoltage Category
Category II
Vibration Resistance
9.8 m/s², 10 Hz–25 Hz in X, Y, Z (80 min)
Noise Resistance
Impulse, EFT/Burst, Surge, ±2 kV, 1 us
Static Discharge Resistance
±4 kV (contact discharge) ±8 kV (air discharge) (IEC 61000-4-2)
Physical
Dimensions
479 x 388 x 77 mm (18.86 x 15.28 x 3.03 in)
Panel Cut
463 x 372 mm (18.23 x 14.65 in)
Weight
7.8 kg (17.20 lbs)
