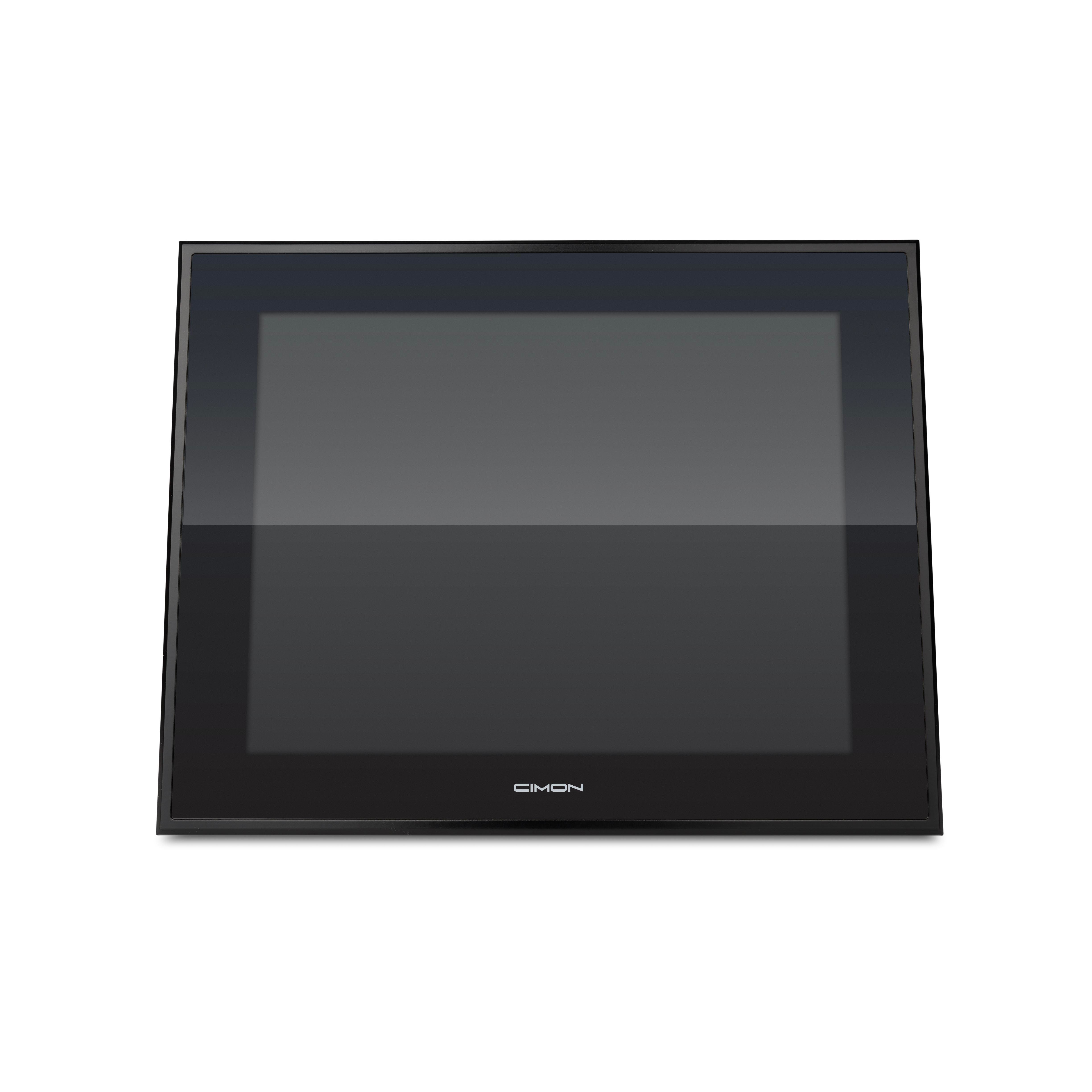

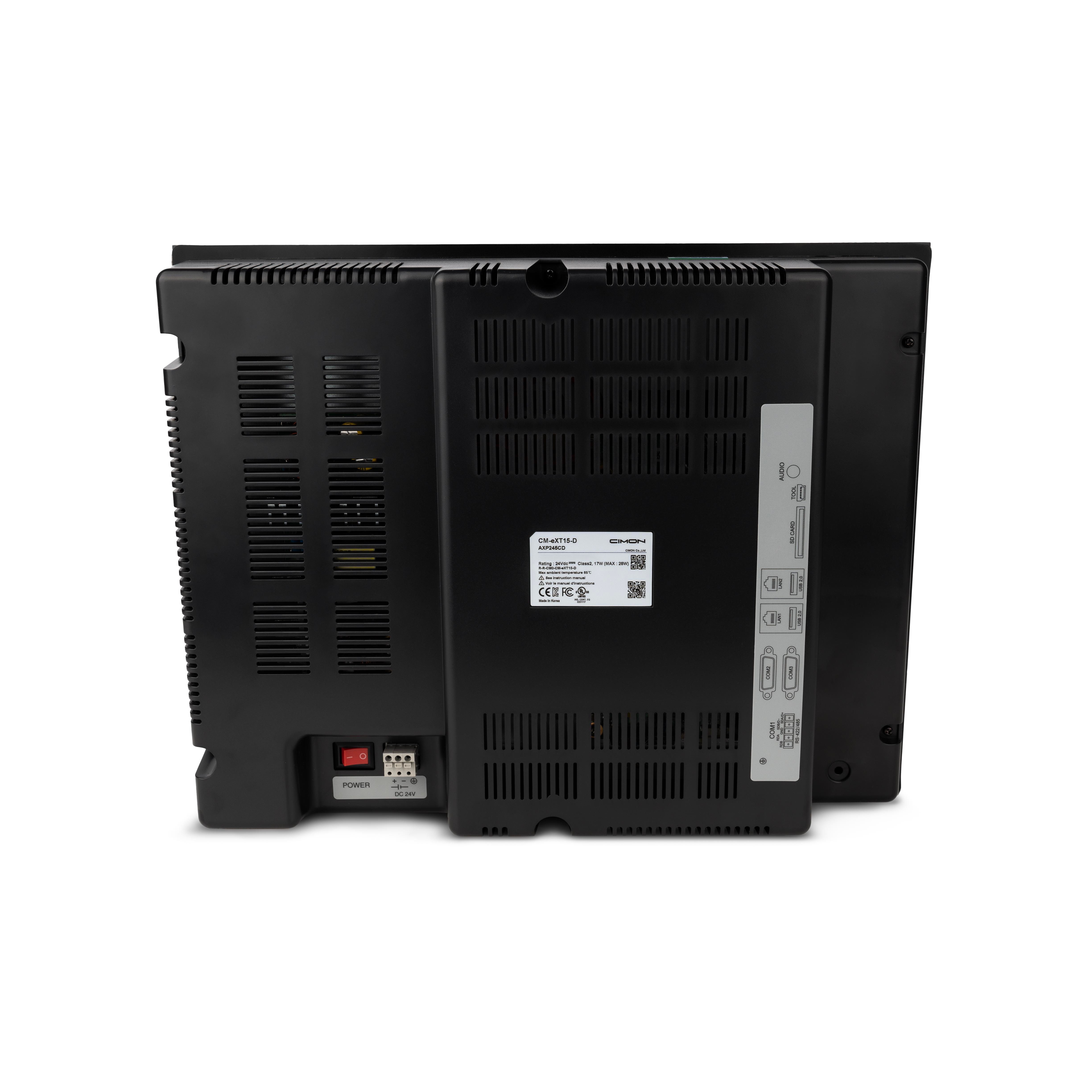

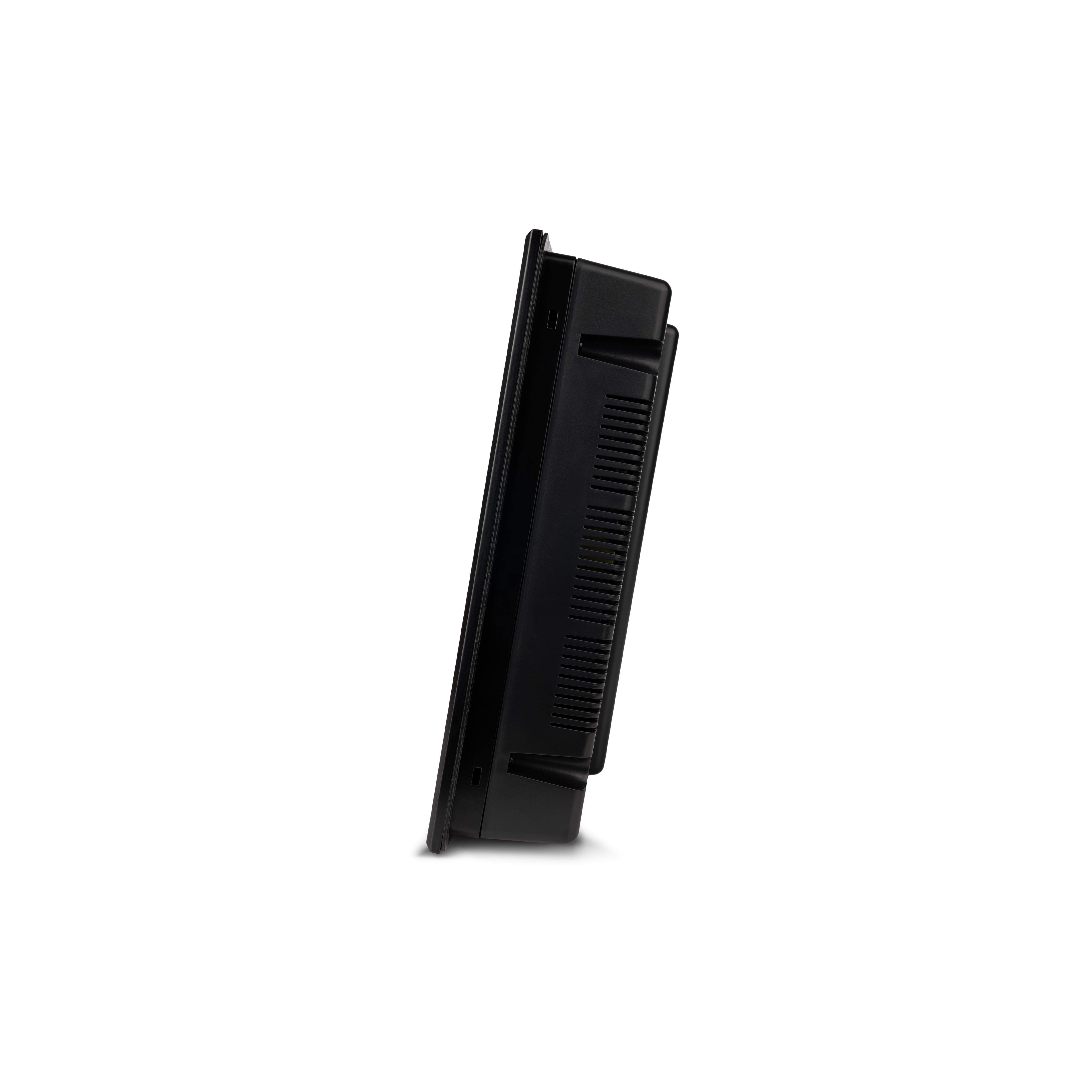

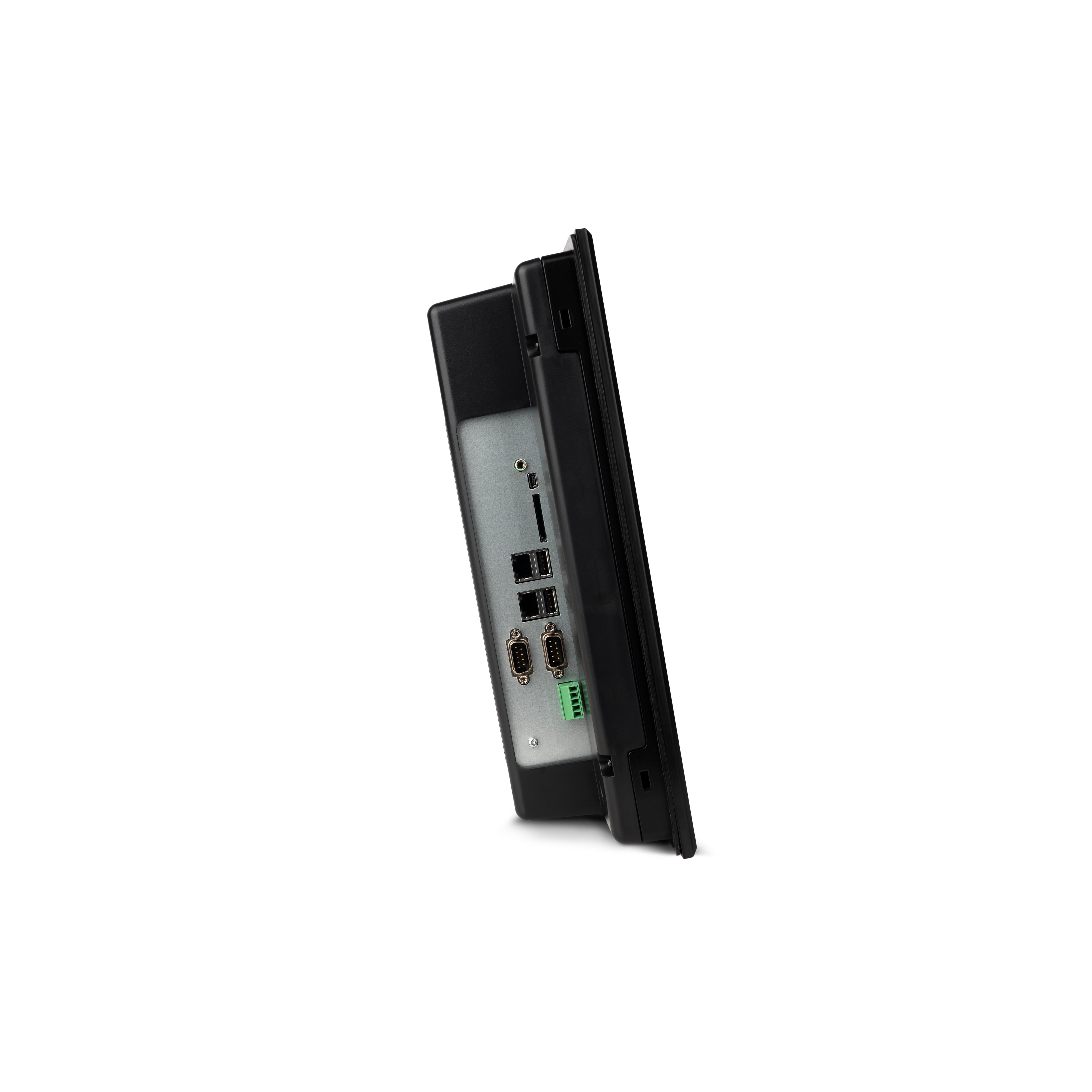

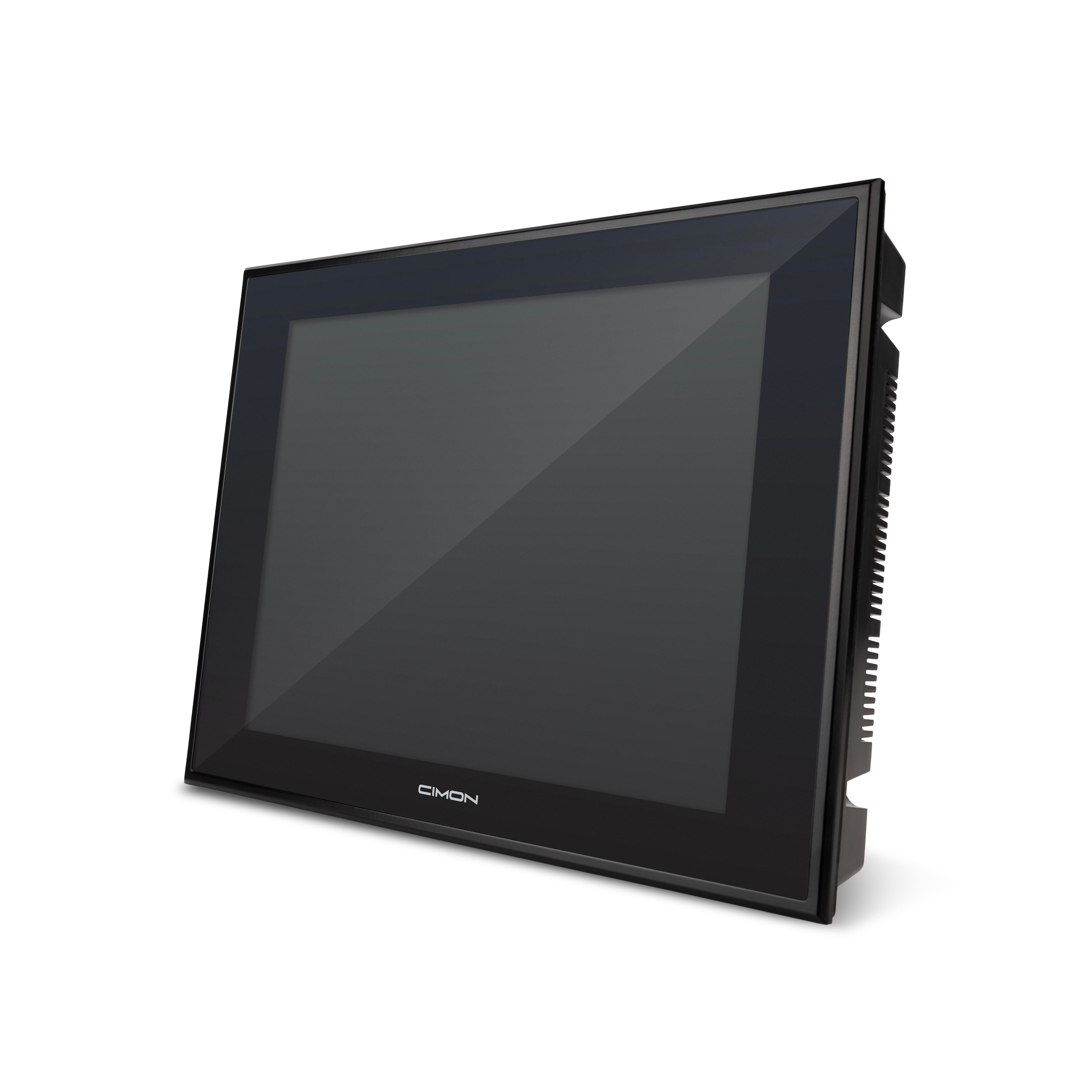

CM-eXT15-D

15 Inch, eXT Xpanel, Base HMI

15-inch Display
Aluminum Front Enclosure
Plastic Rear Enclosure
Resistive Single Touch
1024 x 768 Resolution
500 cd/m² Luminance
1 GB RAM
8 GB eMMC Storage
24 VDC Rated Voltage
2x Ethernet
3x Serial
2x USB Type A
1x USB mini-B Slot [Tool Port]
1x SD Card
1x Audio
0 – 65°C Operating Temperature
UL, CE, FCC, KC Agency Approvals
IP65 (Front) Protection Class

Purchase Contact Us

CM-eXT15-D

15 Inch, eXT Xpanel, Base HMI

15-inch Display
Aluminum Front Enclosure
Plastic Rear Enclosure
Resistive Single Touch
1024 x 768 Resolution
500 cd/m² Luminance
1 GB RAM
8 GB eMMC Storage
24 VDC Rated Voltage
2x Ethernet
3x Serial
2x USB Type A
1x USB mini-B Slot [Tool Port]
1x SD Card
1x Audio
0 – 65°C Operating Temperature
UL, CE, FCC, KC Agency Approvals
IP65 (Front) Protection Class

Purchase Contact Us

Specifications

Enclosure - Front

Aluminum

Enclosure - Rear

Plastic

LCD Size

15 inch TFT Color

Colors

16.7M

Resolution

1024 x 768

Effective Display Area

304.1 (H) x 228.1 (V) mm

PPI

Backlight

LED

Luminance

500 cd/m²

Contrast Ratio

2500:1

Backlight Life

70,000 hours

Touch Panel

4 Wire Resistive

Touch Panel Accuracy

Active Area Length(X)±2%, Width(Y)±2%

Display Orientation

Landscape (Standard, 180°), Portrait (90°, 270°)

Memory

1 GByte DDR3

Storage

8 GByte eMMC

SD Card

1 x SD slot

COM1

RS-422/485

COM2

RS-232C

COM 3

RS-232C

Ethernet

2 x 10/100/1000 ports

USB Host

2 x Type A

Tool Port

1 x USB mini-B

Audio

1 x port

Rated Voltage

24 VDC, Class 2

Inrush Current

30 A maximum

Power Consumption

15W (MAX: 26W)

Operating System

Embedded Linux

Project Memory

250 MB

User Memory

4 GB

Realtime Clock

Built-in

Acknowledgement Sound

Electronic buzzer

Agency Approvals - UL

UL61010-1 / UL61010-2-201 (E231117)

Agency Approvals - CE

Electromagnetic Compatibility Directive 2014/30/EU (EMC)

Agency Approvals - FCC

The 47 CFR, Part2, Part15 and Part 18 Of FCC Requirement

Agency Approvals - KC

Registration of Broadcasting and Communication Equipment

Agency Approvals - Protection Class (Front)

IP65, NEMA Type : 4X, 12

Operating Temperature

0 – 65°C (32 –149°F)

Storage Temperature

-20°C – 65°C (-4 - 149°F)

Operating Humidity

10 – 90% RH (below 29°C, not condensed)

Storage Humidity

10 – 90% RH (below 39°C, not condensed)

Altitude (Air Pressure)

800 hPa – 1114 hPa (2000 m/6,500 ft or less)

Dust Exposure Allowance

≤ 0.1 mg/m³ (No conductive dust allowed)

Pollution Degree

≤ 2

Corrosion Immunity

No corrosive gas or dust

Vibration Protection

JIS B 3502, IEC/EN 61131-2 compliant
5–9 Hz Single amplitude: 3.5 mm
9–150 Hz Fixed acceleration: 9.8 m/s²
X, Y, Z directions for 10 cycles (approx. 100 min)

Shock Protection

JIS B 3502, IEC/EN 61131-2 compliant
147 m/s², X, Y, Z directions for ±3 times (Total 18 times)

Noise Protection

Impulse, EFT/Burst, Surge, ±2 kV, 1 us

Electrostatic Discharge

4 kV (Contact Discharge) (IEC 61000-4-2)
8 kV (Air Discharge) (IEC 61000-4-2)

Dimensions

395 x 310 x 86 mm (15.55 x 12.2 x 3.39 in)

Panel Cut

382 x 297 mm (15.04 x 11.69 in)

Weight

4.4 kg (9.7 lbs)
