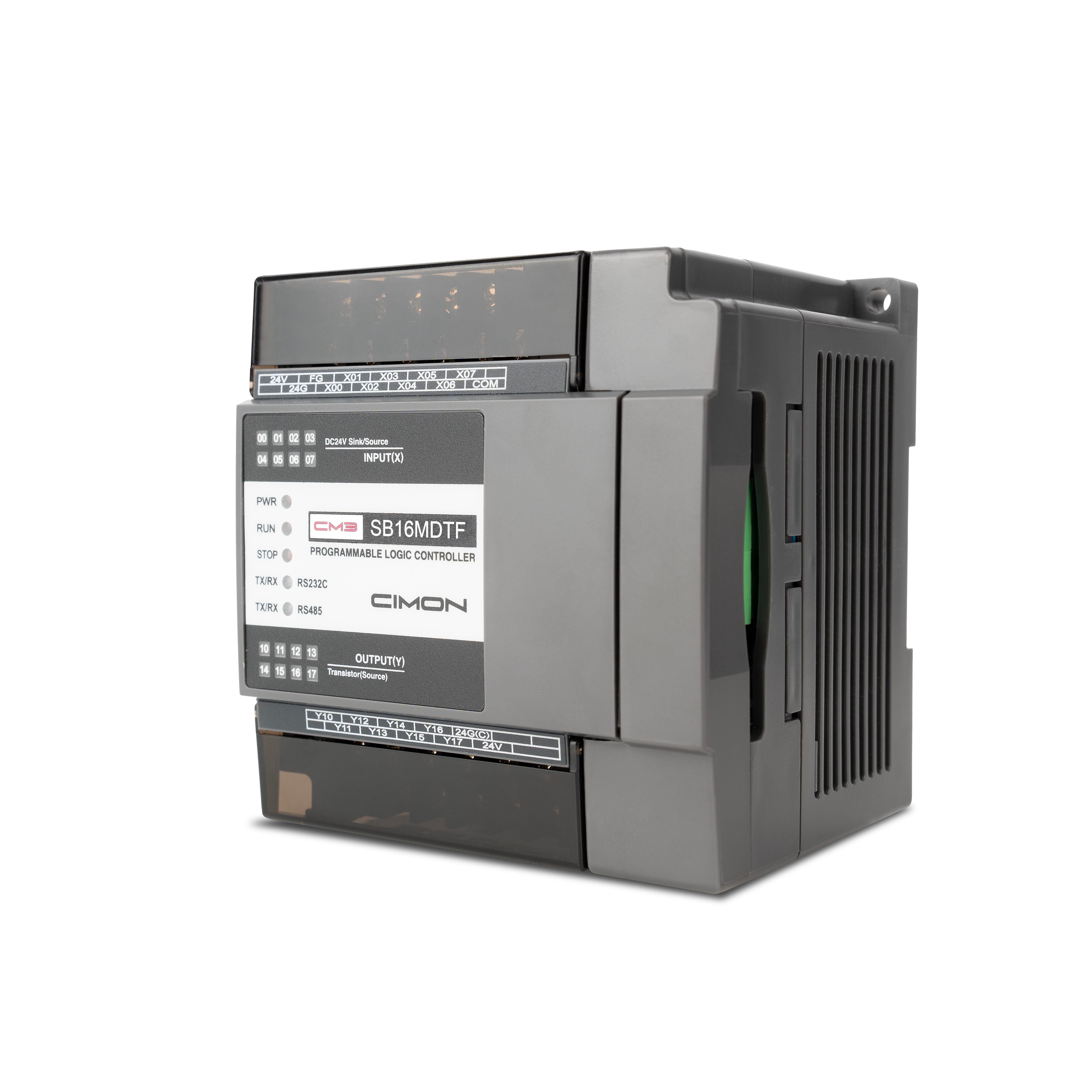

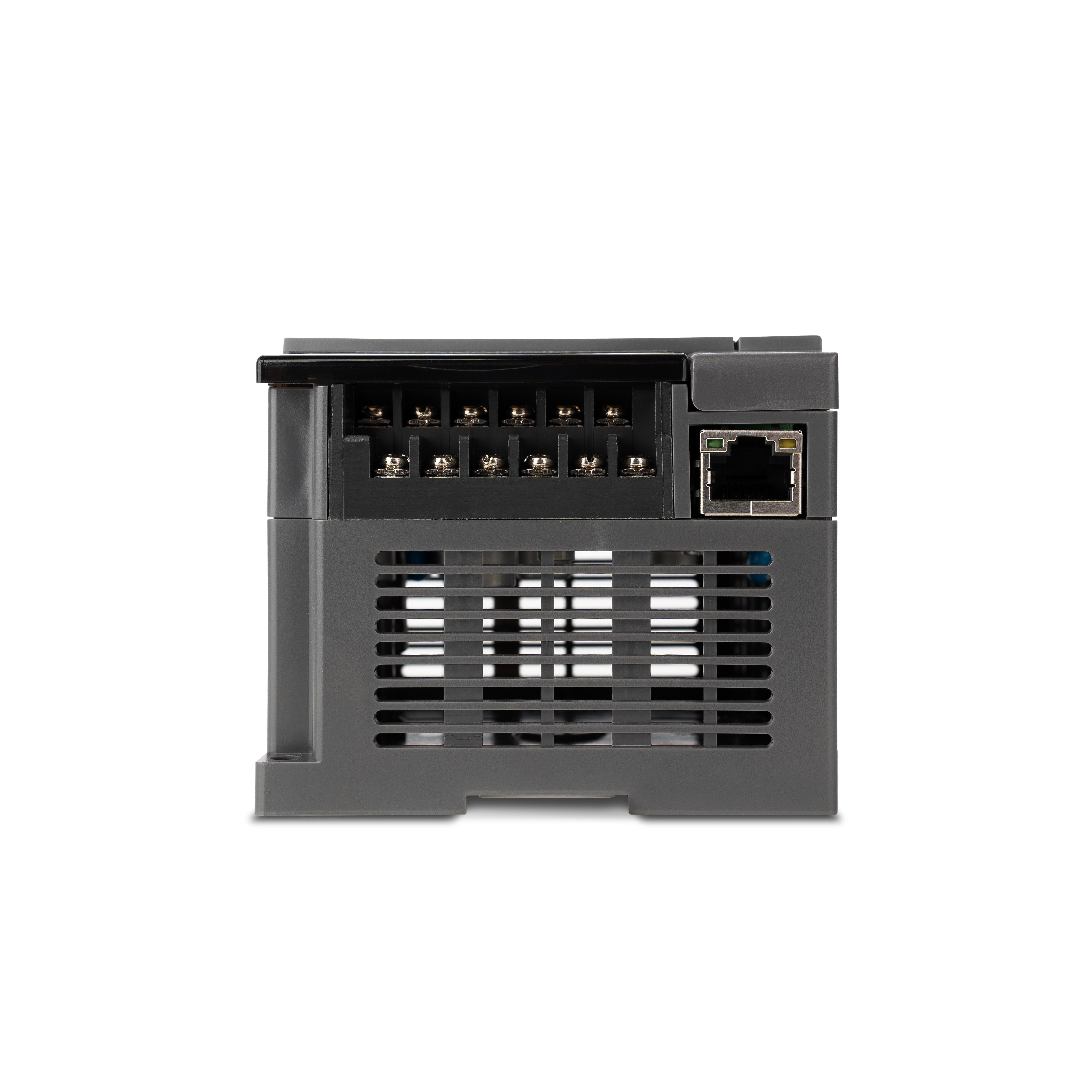

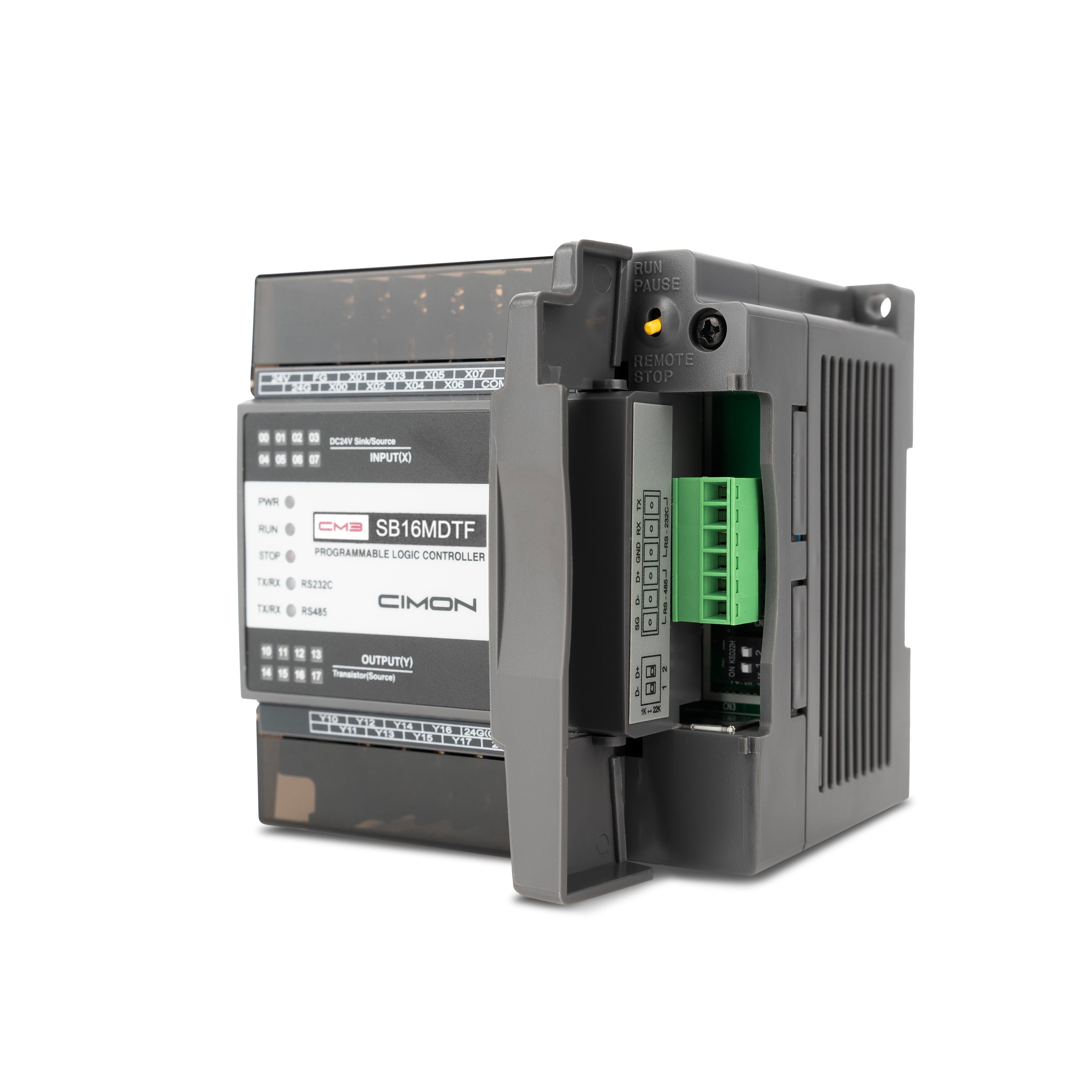

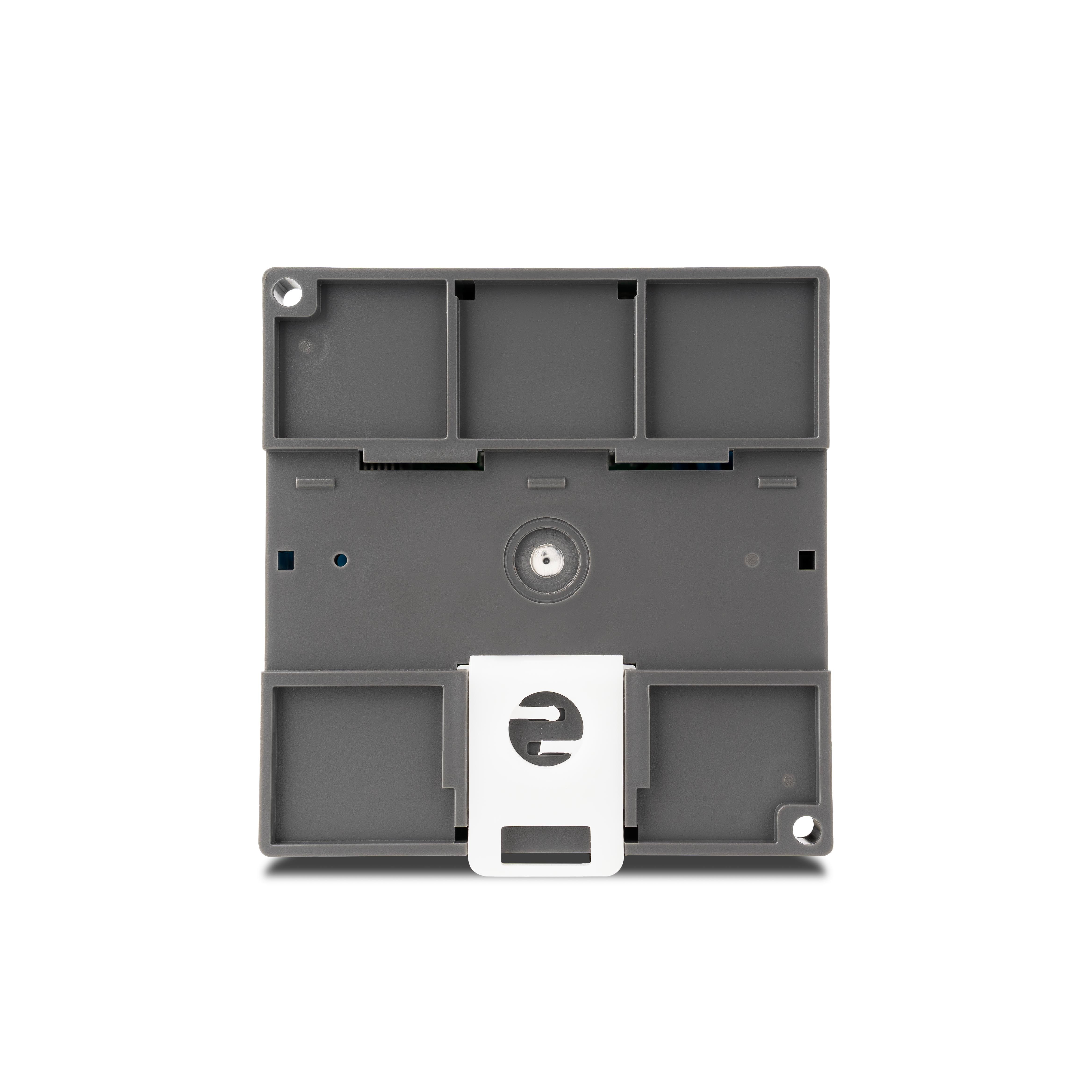

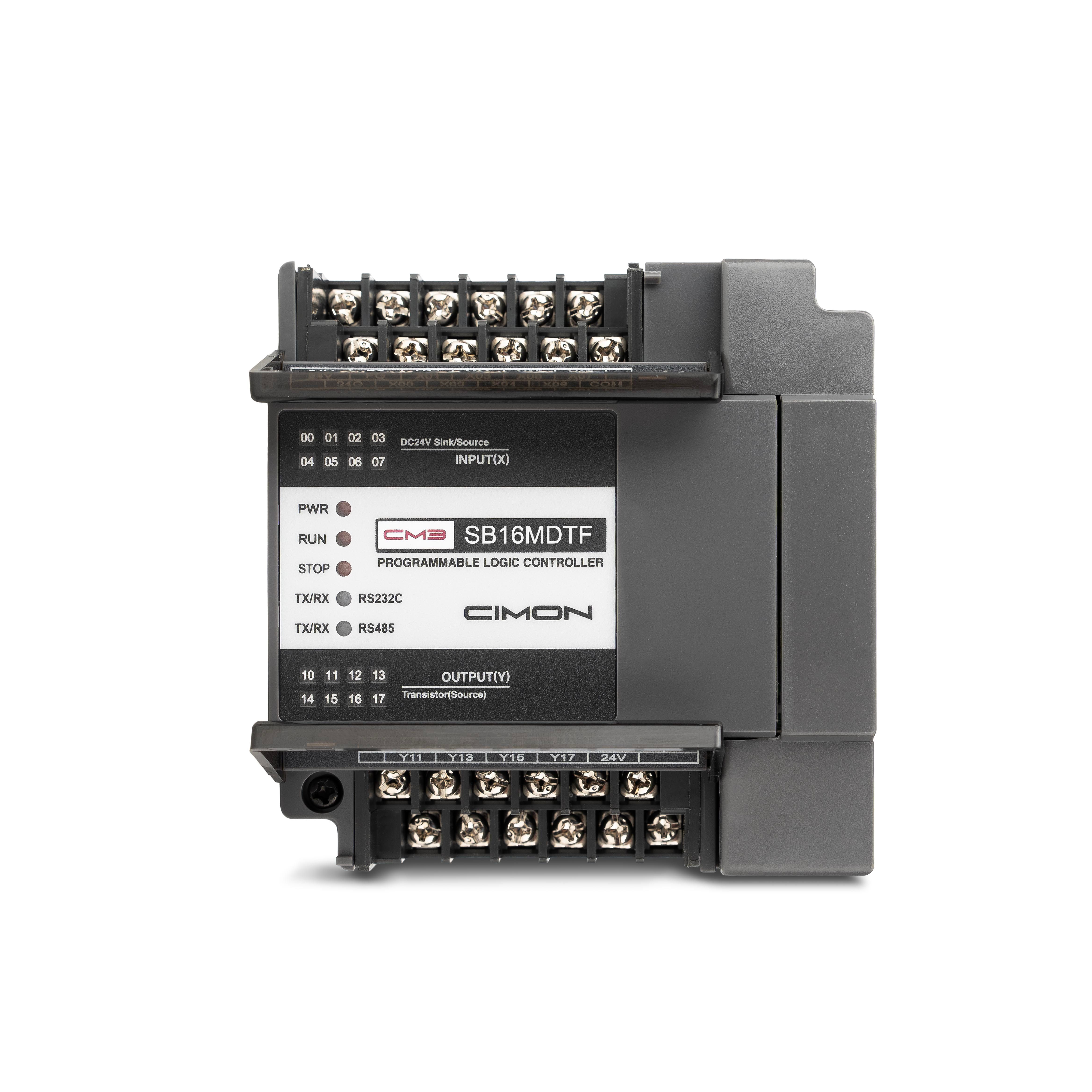

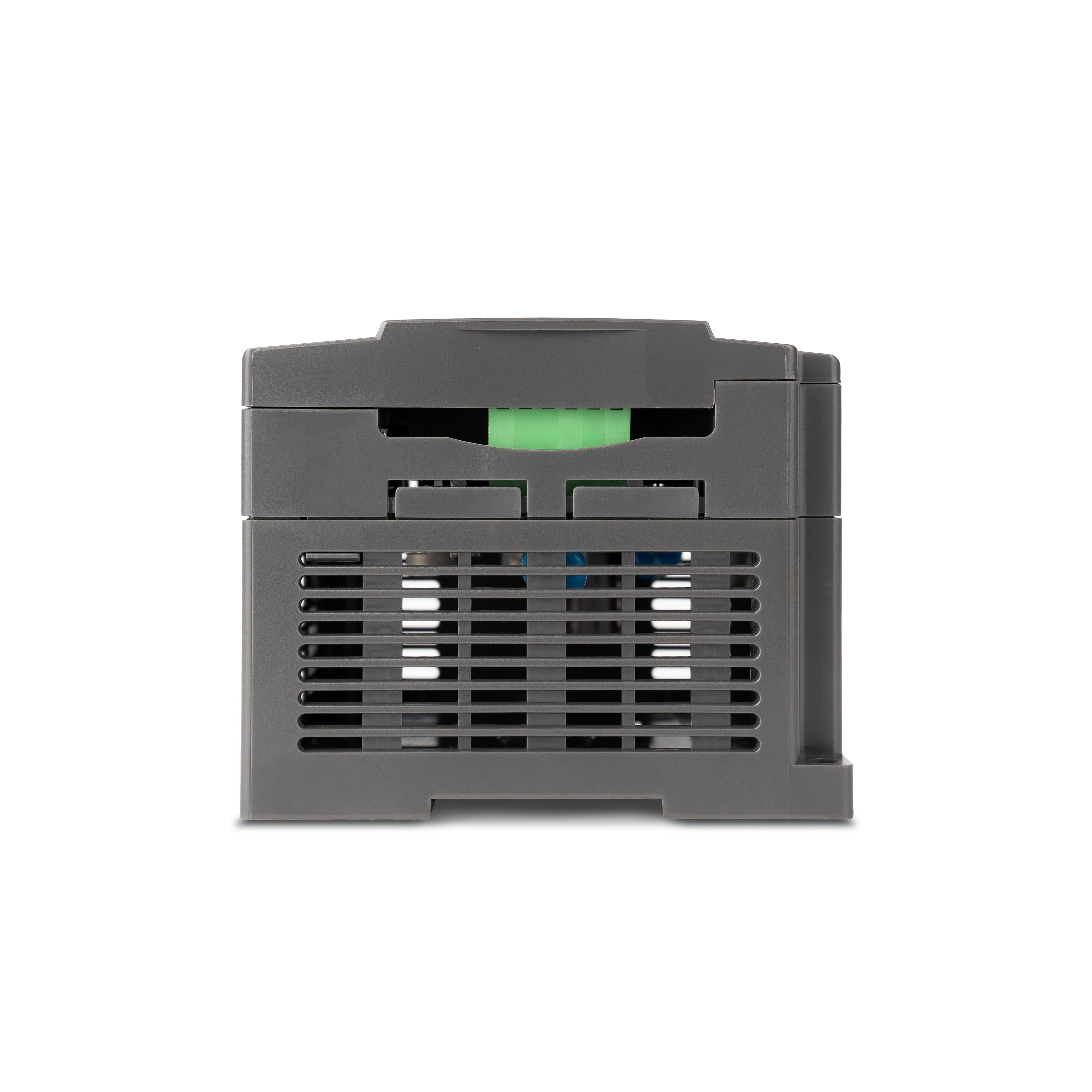

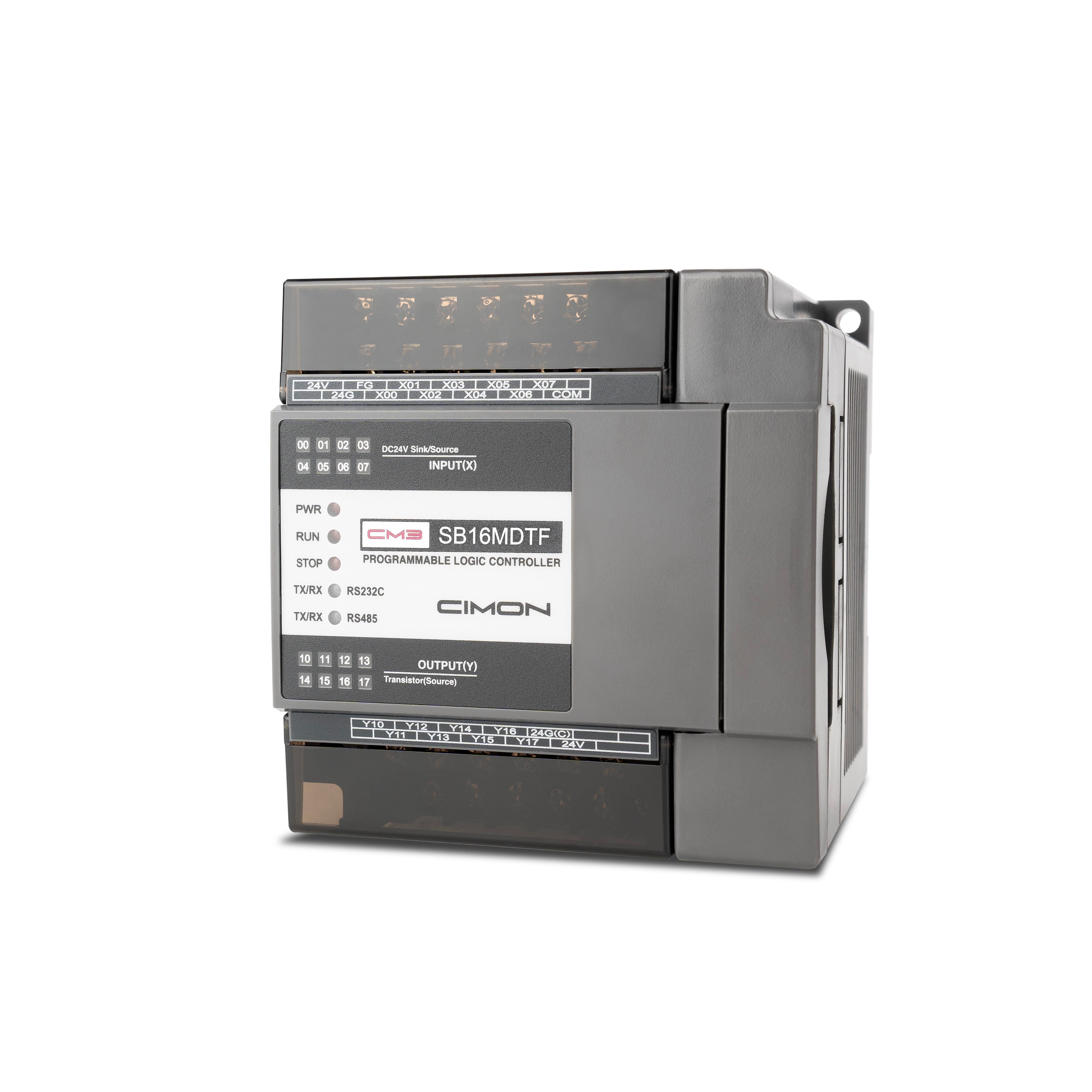

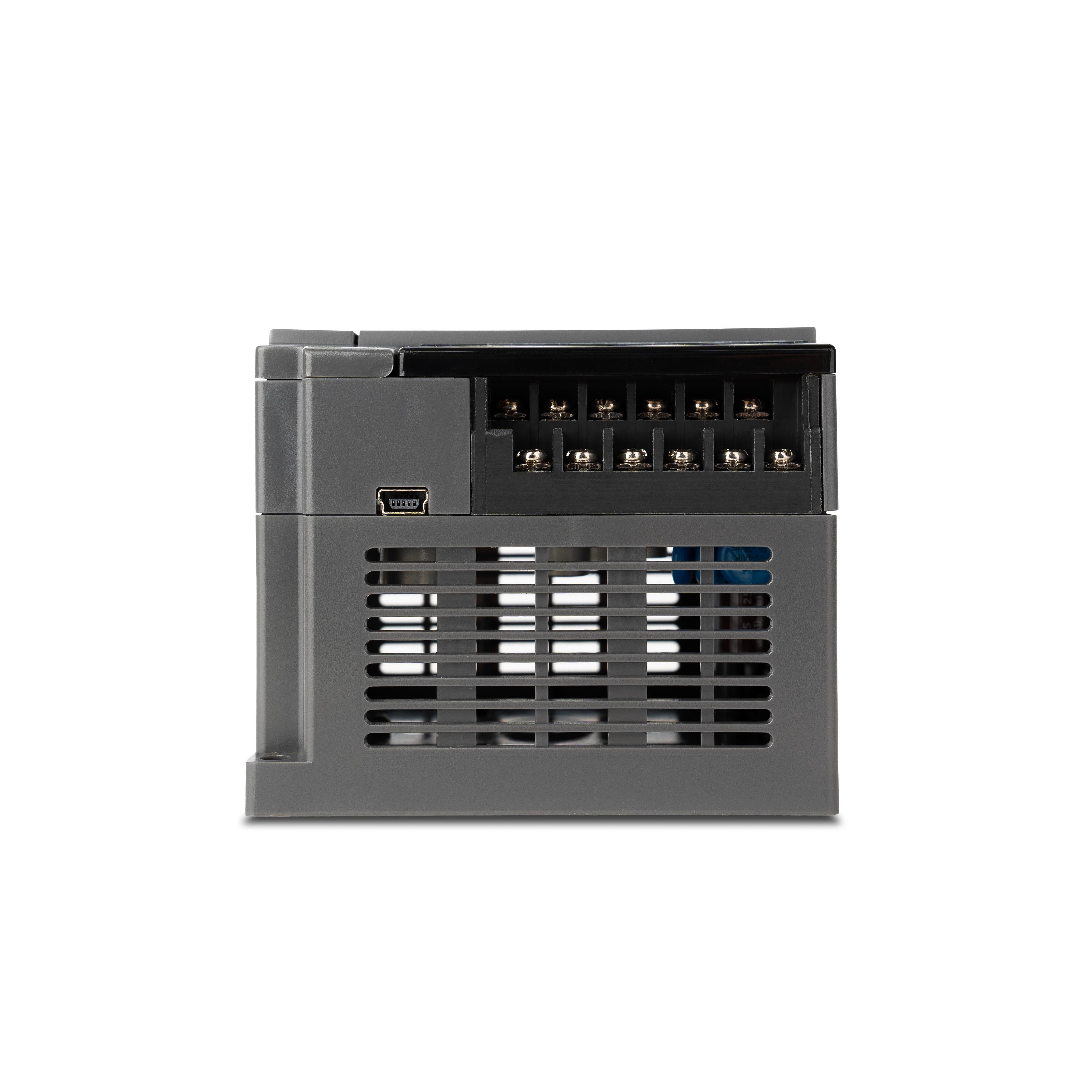

CM3-SB16MDTF
Brick PLC, Digital Sinking/Sourcing Input, Digital Sinking Output, Ethernet
- Power: 12/24 VDC
- Non-Expandable
- 1x Ethernet
- 1x Serial
- 1x USB Mini-B Port
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point
- Screw-based terminals
PrintCM3-SB16MDTF
Brick PLC, Digital Sinking/Sourcing Input, Digital Sinking Output, Ethernet
Print- Power: 12/24 VDC
- Non-Expandable
- 1x Ethernet
- 1x Serial
- 1x USB Mini-B Port
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point
- Screw-based terminals
Specifications
Functional
Power Supply
12–24 VDC, 0.12 A
Discrete Input Type
TR Sink/Source
Discrete Output Type
C = TR Source T = TR Sink
Number of Channels
(16 Total) 8 Discrete Inputs 8 Discrete Outputs
Rated Discrete Input Voltage
12 or 24 VDC Note: 12 VDC is used for the HSC
Rated Discrete Input Current
4 mA
Discrete Input Insulation Method
Photocoupler
Discrete Input Voltage/Current Thresholds
ON CH1-4: 10 VDC/3 mA CH5-8: 14 VDC/3 mA OFF CH1-4: 8 VDC/1 mA CH5-8: 12 VDC/1 mA
Rated Discrete Output Voltage
12, 24 VDC
Rated Discrete Output Current
1 point = 0.2 A 1 COM = 1 A
Discrete Output Insulation Method
Photocoupler
Communication Ports
RS-232, 1 Channel RS-422/485, 1 Channel Ethernet, 1 Port
Utility/ Program Port
Mini-B USB, Ethernet, RS-232/422/485
Environmental
Operating Temperature
-10 – +55°C (+14 – +131°F)
Storage Temperature
-25 – +80°C (-13 – +176°F)
Operating/ Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous 1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
ESD Immunity
±4 kV - Contact Discharges ±8 kV - Air Discharges
ESD Standard
IEC 61131-2 IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2 IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2 IEC 61000-4-4
Physical
Product Dimensions (H x W x D)
93 x 90 x 76 mm (3.7 x 3.5 x 3.0 in)
Product Weight
247 g (0.54 lb)
