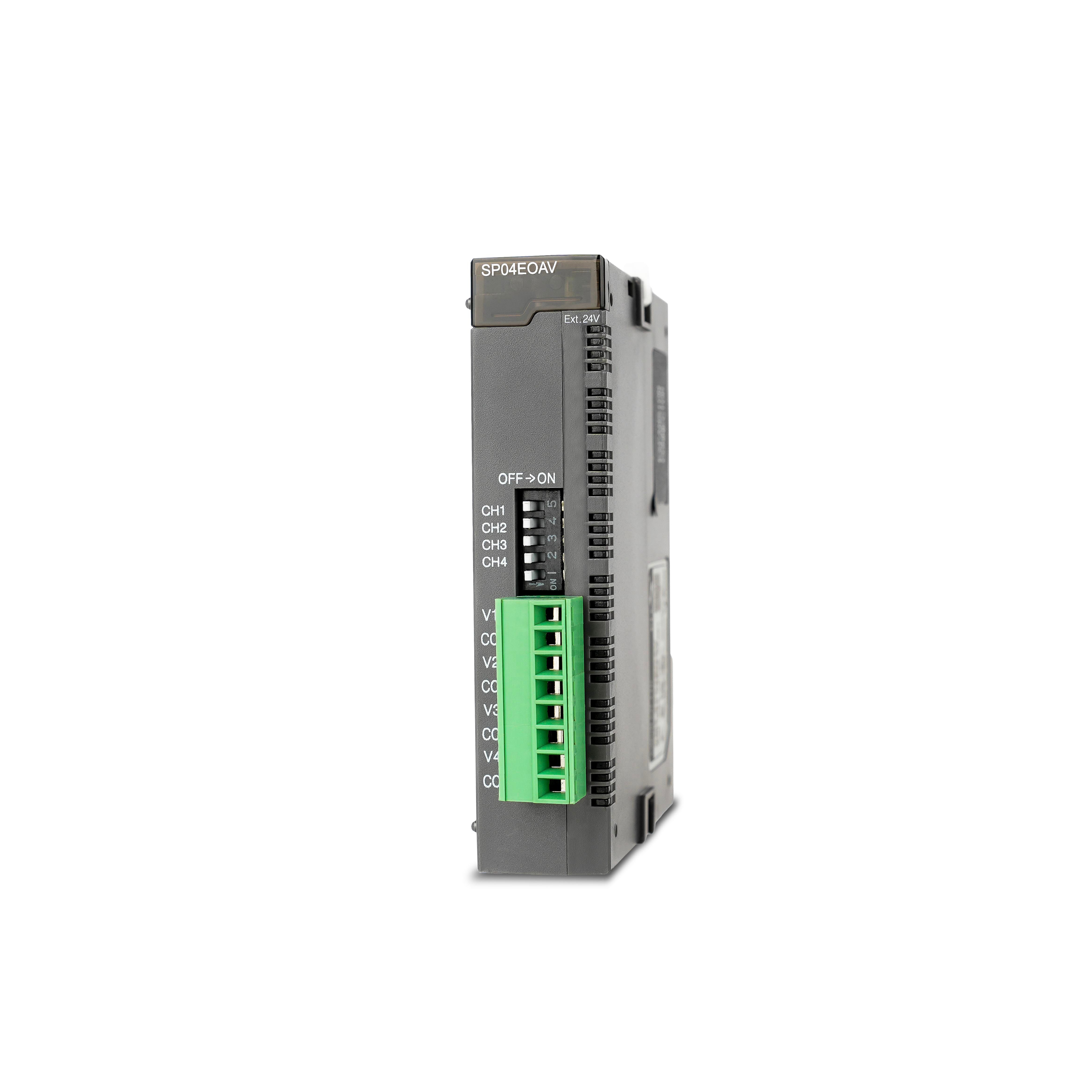

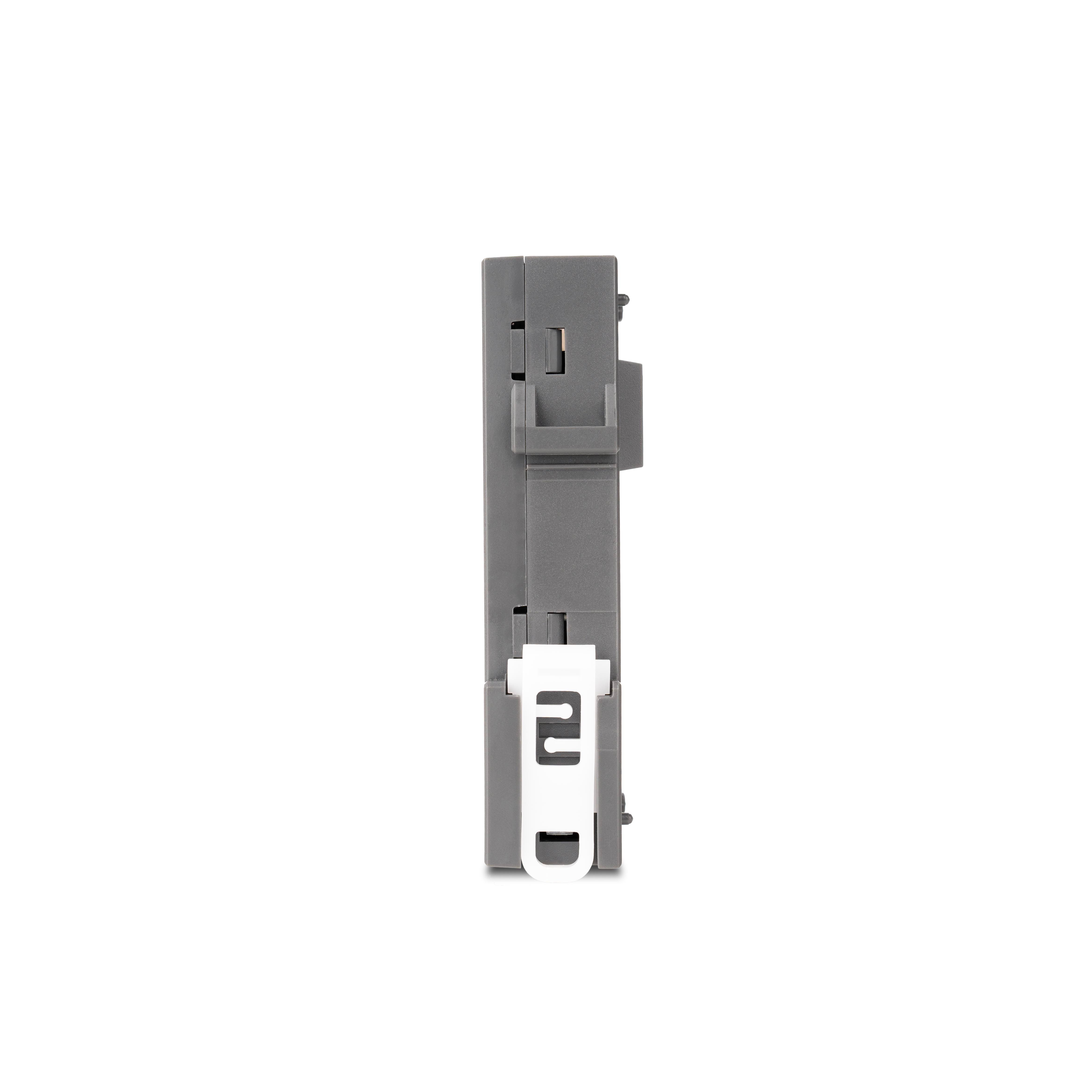

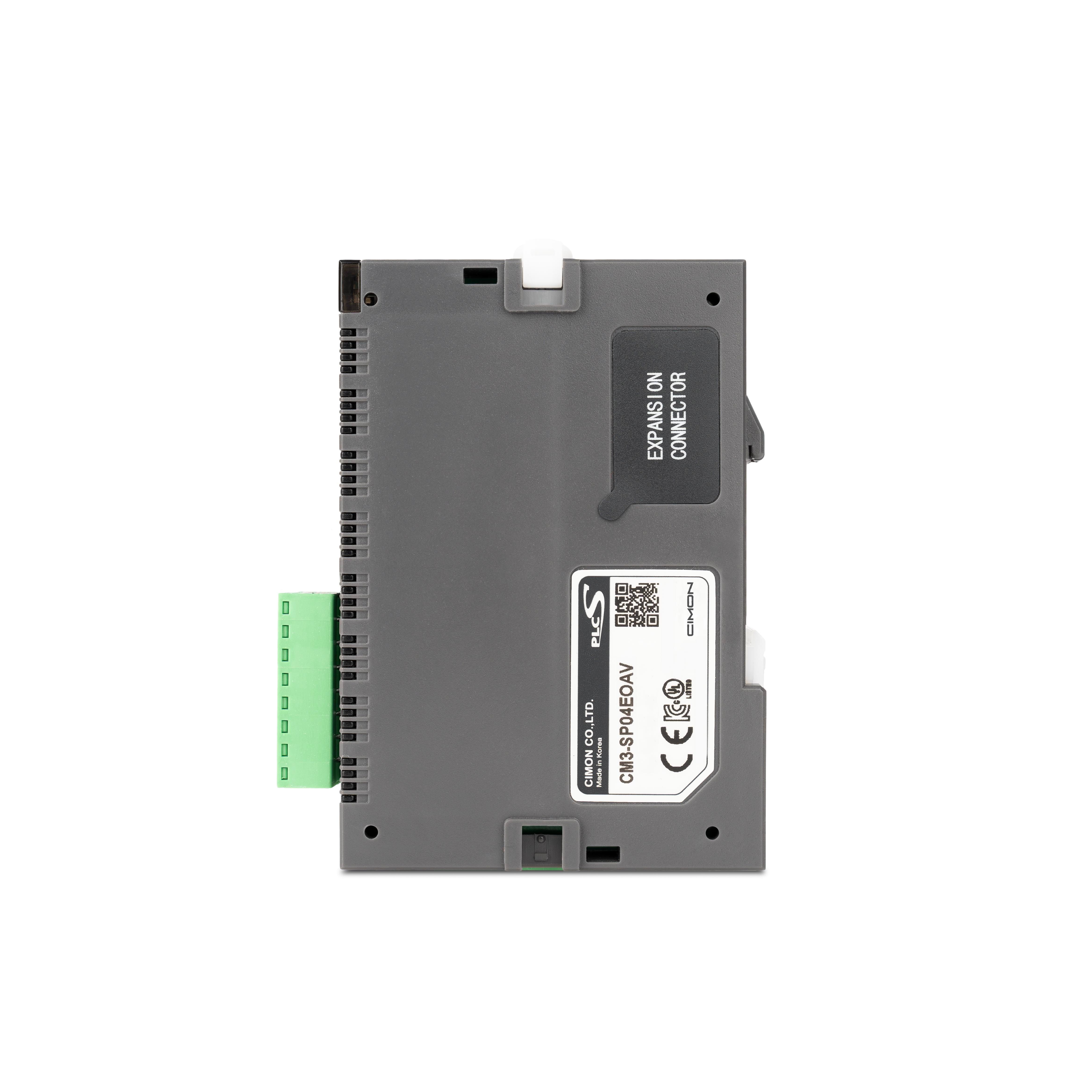

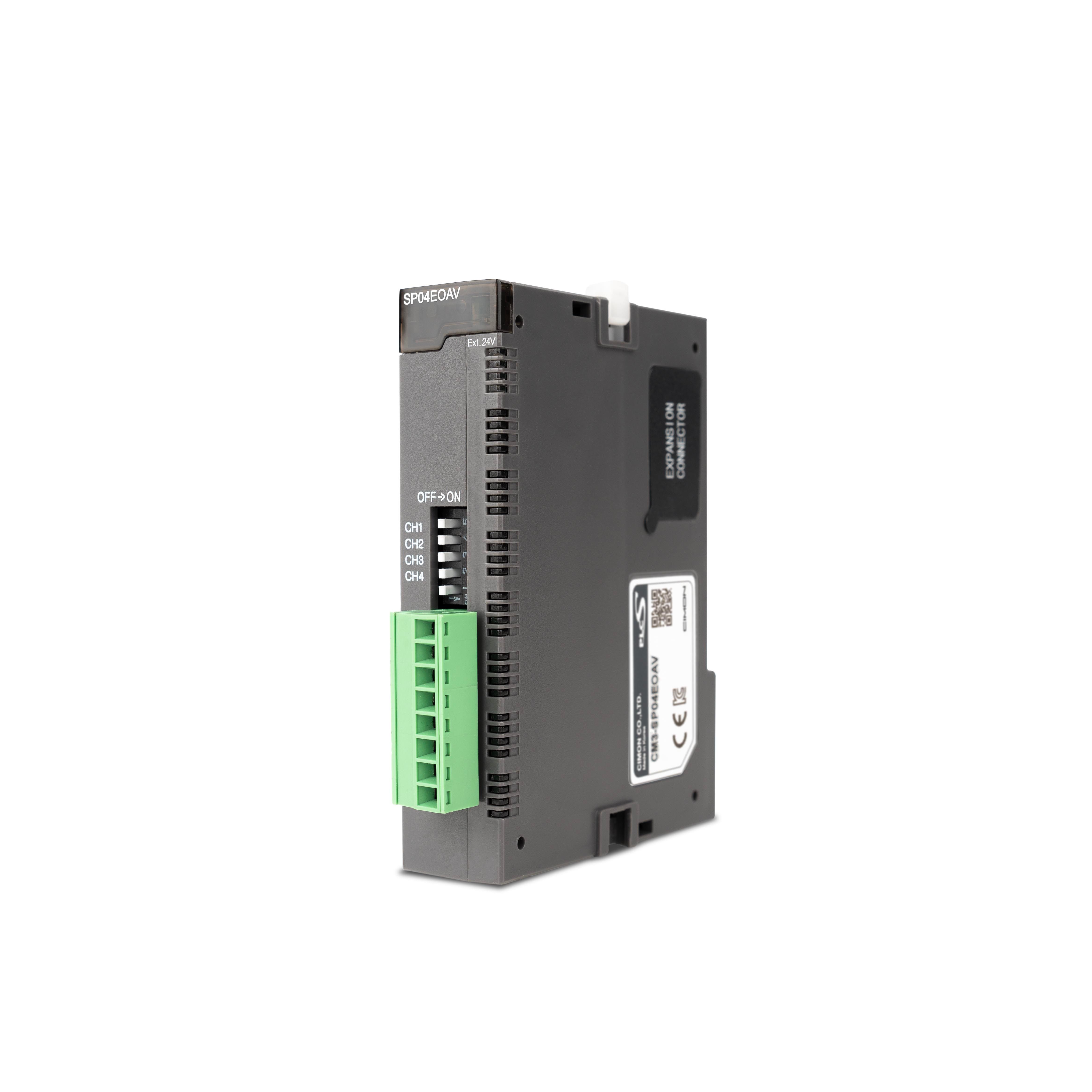

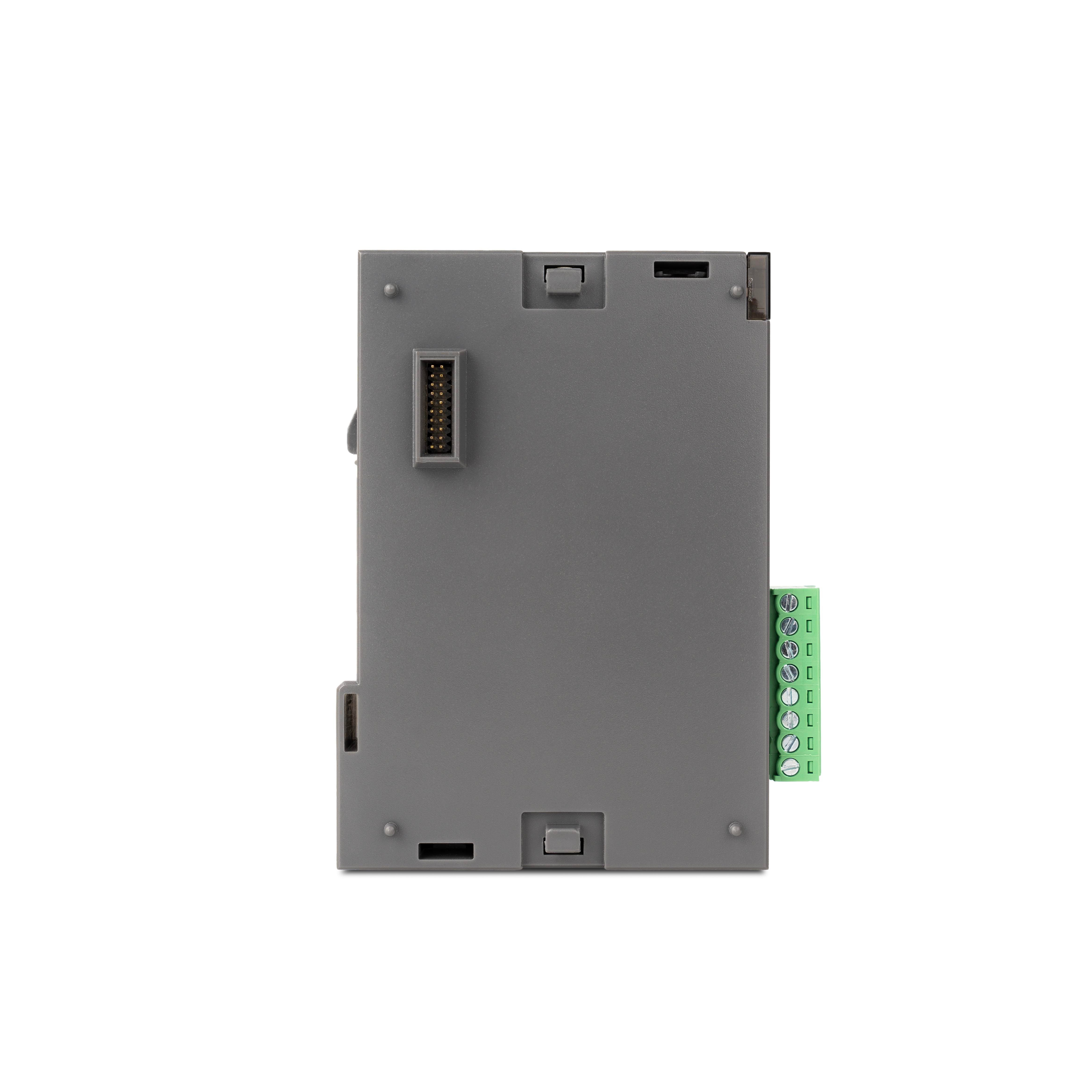

CM3-SP04EOAV
Analog Output Expansion Module, Voltage
- PLC-S Analog Output Module
- 4-Channel
- Voltage
- 0-20 mA
- External 24 VDC Required
- Removable screw-based terminal blocks
PrintCM3-SP04EOAV
Analog Output Expansion Module, Voltage
Print- PLC-S Analog Output Module
- 4-Channel
- Voltage
- 0-20 mA
- External 24 VDC Required
- Removable screw-based terminal blocks
Specifications
Functional
Analog Input Module
CM3-SP04EOAV 4 Voltage Outputs -10 – 10 V Screw-based Connector
Analog Output Points
4 Points
Analog Output
0 – 10 V, -10 – 10 V (Dip Switch)
Minimum Load Impedance
3 kOhm
Resolution
14-bit, 0 – 16000
Accuracy
±0.01% (Full Scale)
Conversion Speed
<2 ms
Insulation Method
Photocoupler

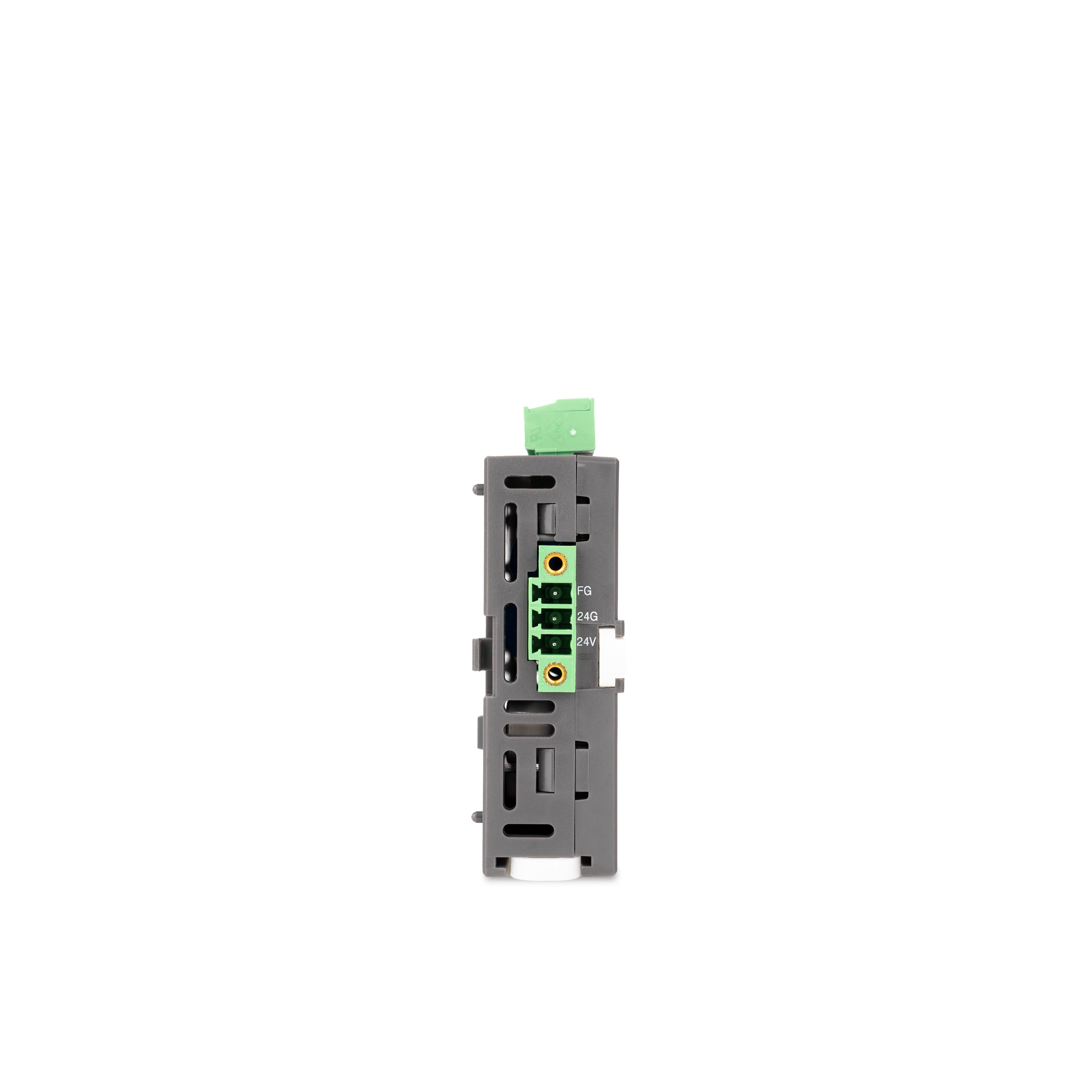

Power Supply
External 24 VDC
Current Consumption (mA) - Internal
@3.3 VDC, 40 mA
Current Consumption (mA) - External
@24 VDC, 50 mA
Environmental
Operating Temperature
-10 – +60 °C (+14 – +140 °F)
Storage Temperature
-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous 1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
Square Wave Impulse Noise Standard
CIMON Standard
ESD Immunity
±4 kV - Contact Discharges ±8 kV - Air Discharges
ESD Immunity Standards
IEC 61131-2 IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2 IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2 IEC 61000-4-4
Physical
Product Dimensions (H x W x D)
90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in)
Product Weight
86 g (0.19 lb)
