CM3-SP16MDTF

PLC-S PLC, Digital Sinking/Sourcing Input, Digital Sinking Output, Ethernet

  • Power: 12/24 VDC
  • Expandable up to 11 + CPU (Total I/O 384)
  • 1x Ethernet
  • 2x Serial
  • 1x USB Mini-B Port
  • Discrete Input: 8 Point, 12/24 VDC, Sink/Source
  • Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point.
  • Removable screw-based terminal blocks.
PurchaseContact Us

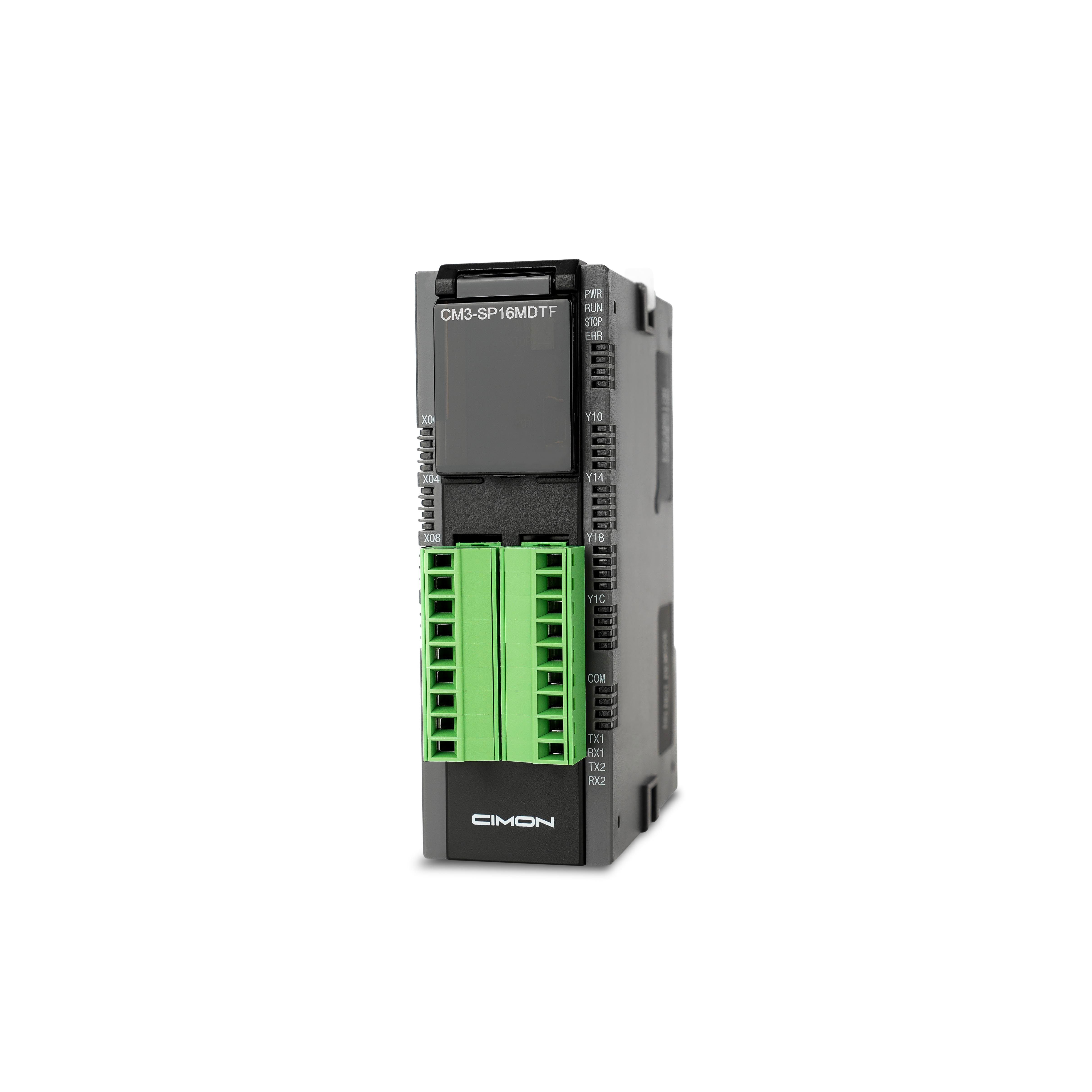

SP16MDTF Front
SP16MDTF Front

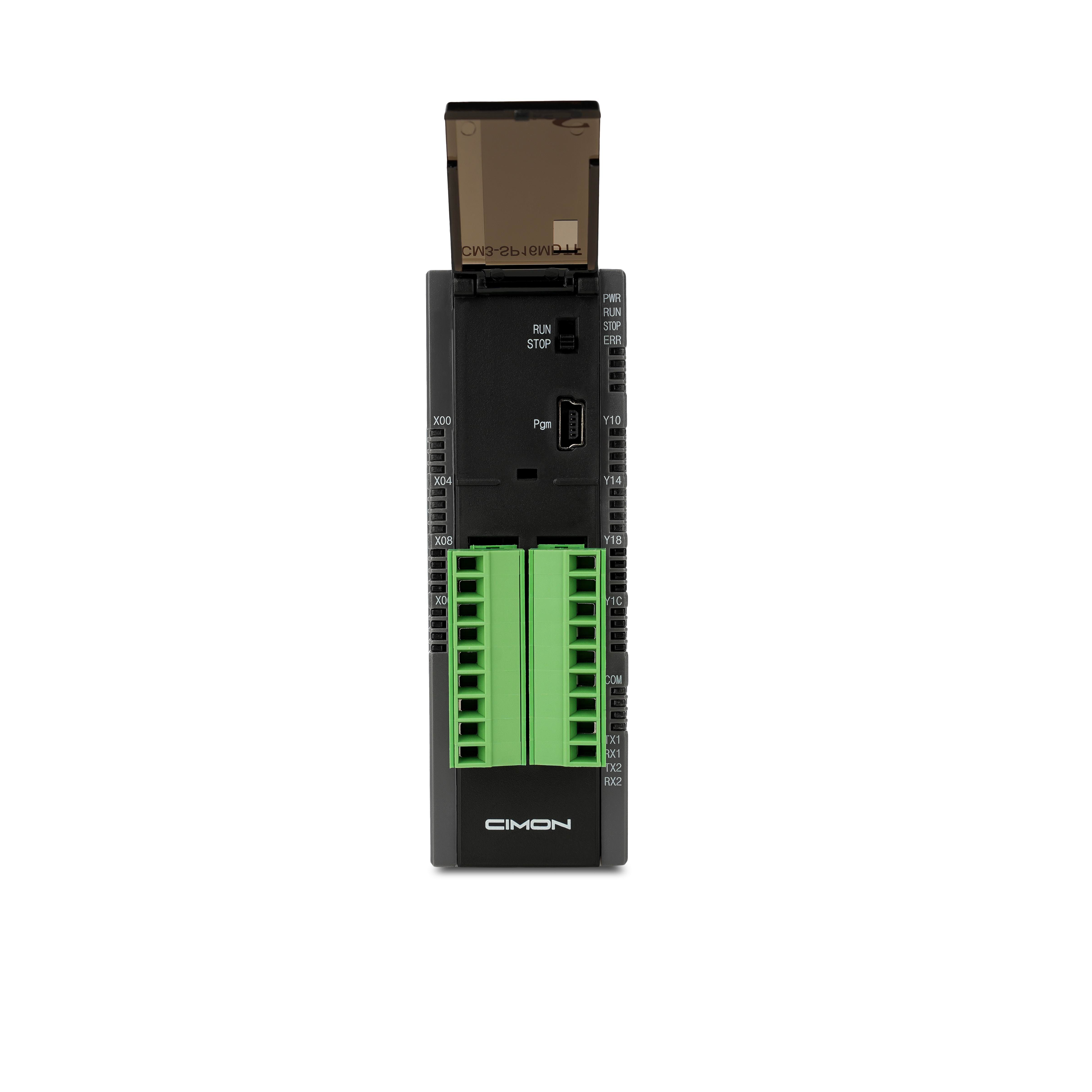

SP16MDTF Front Face

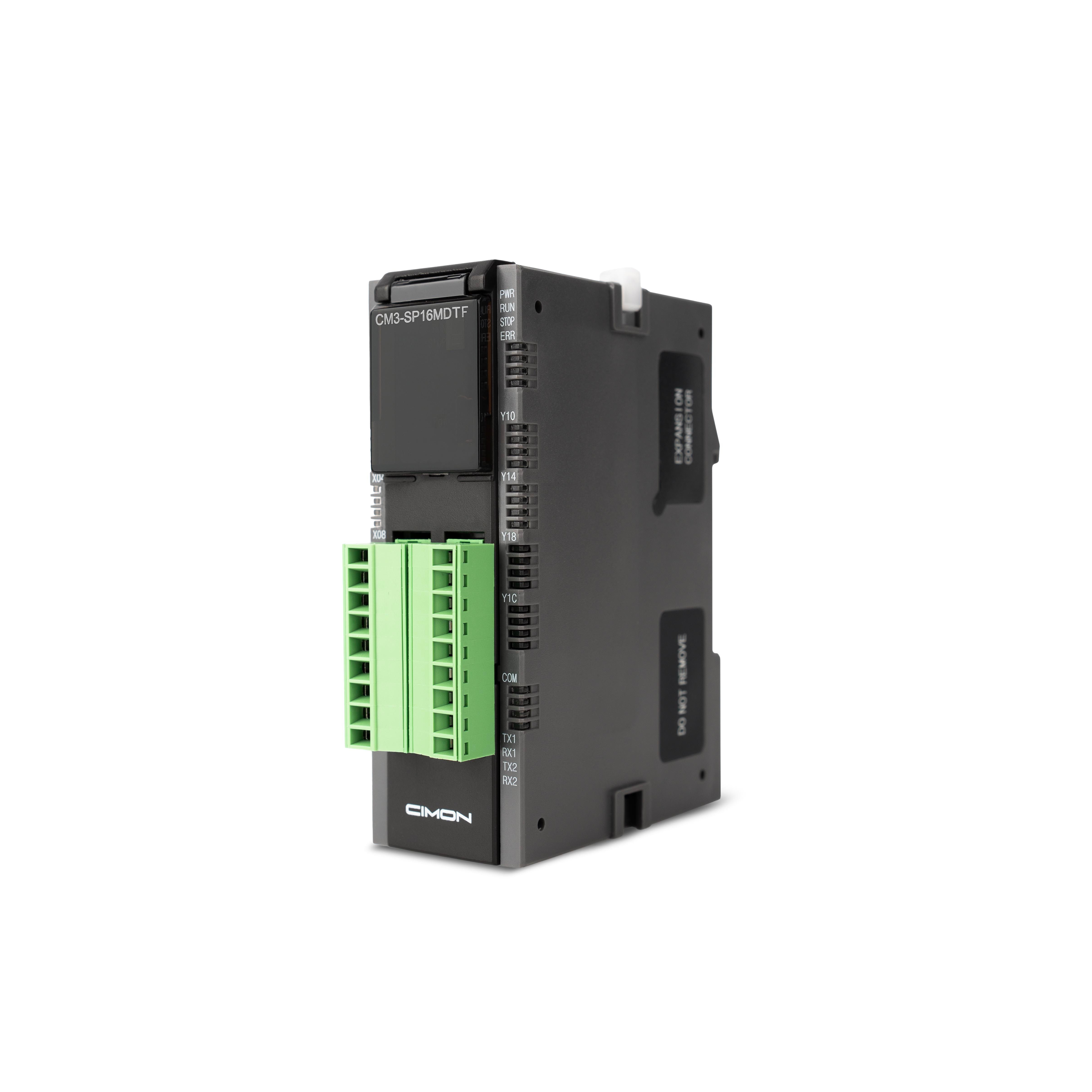

SP16MDTF Front Rotated

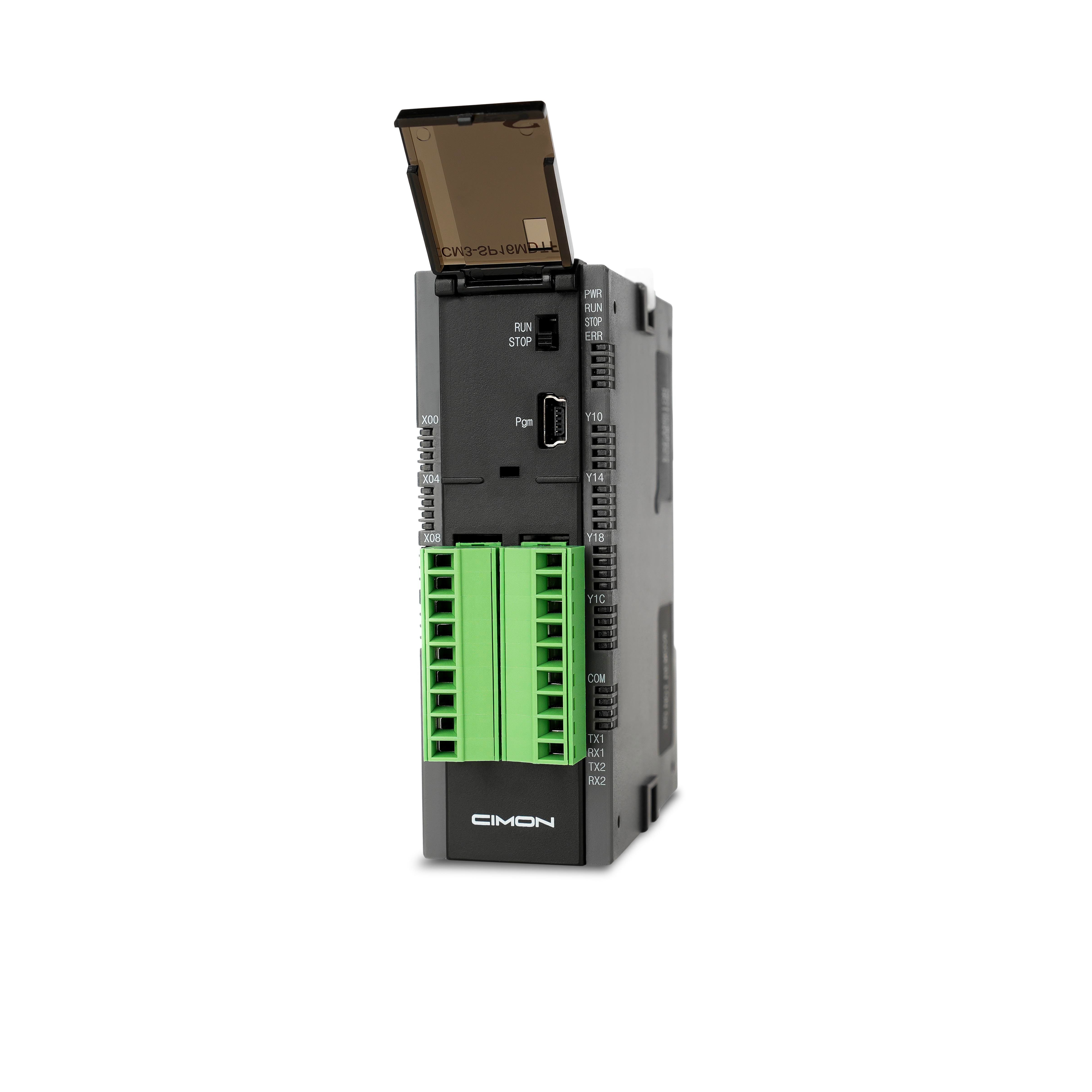

SP16MDTF Front Rotated Face
SP16MDTF Rotated Side

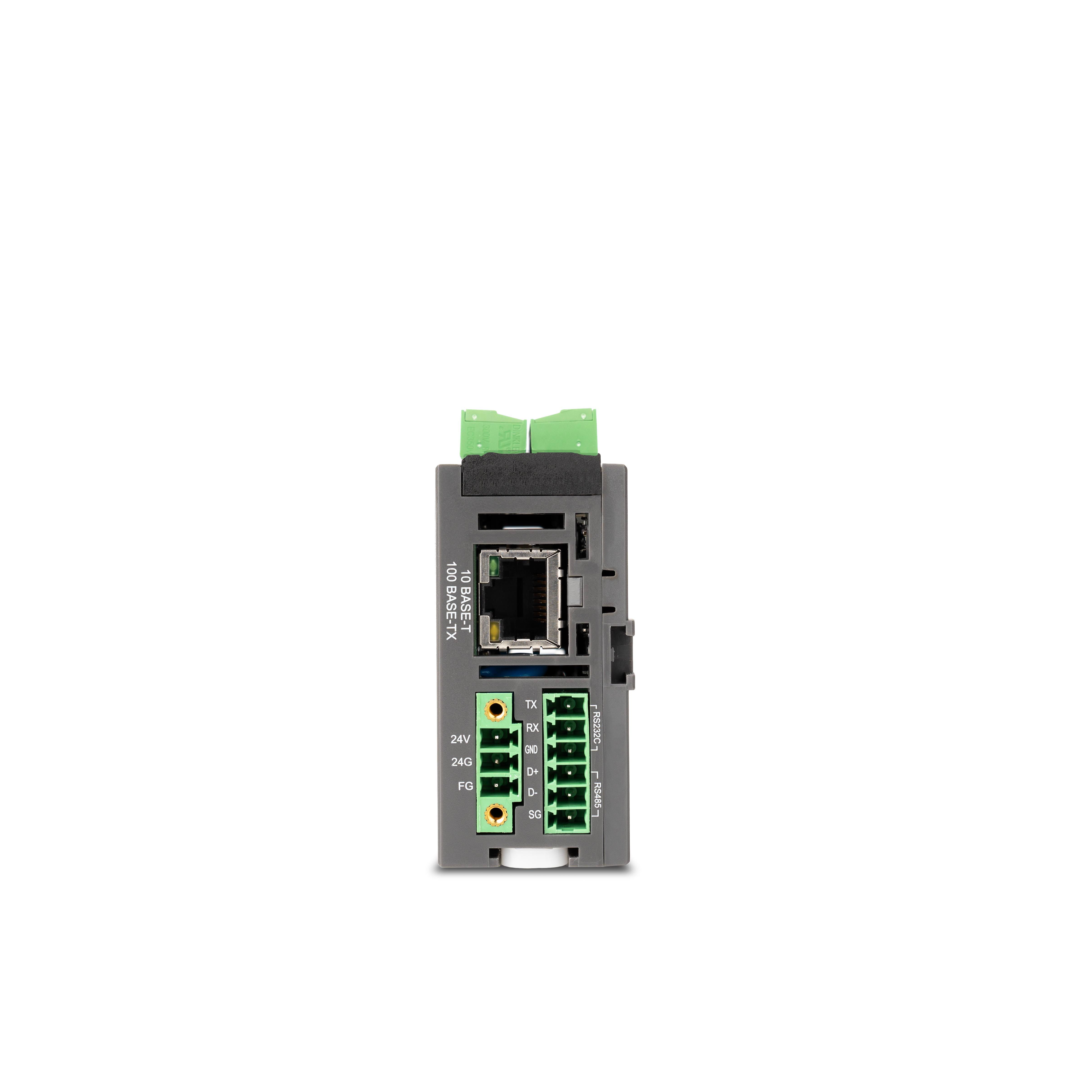

SP16MDTF Bottom

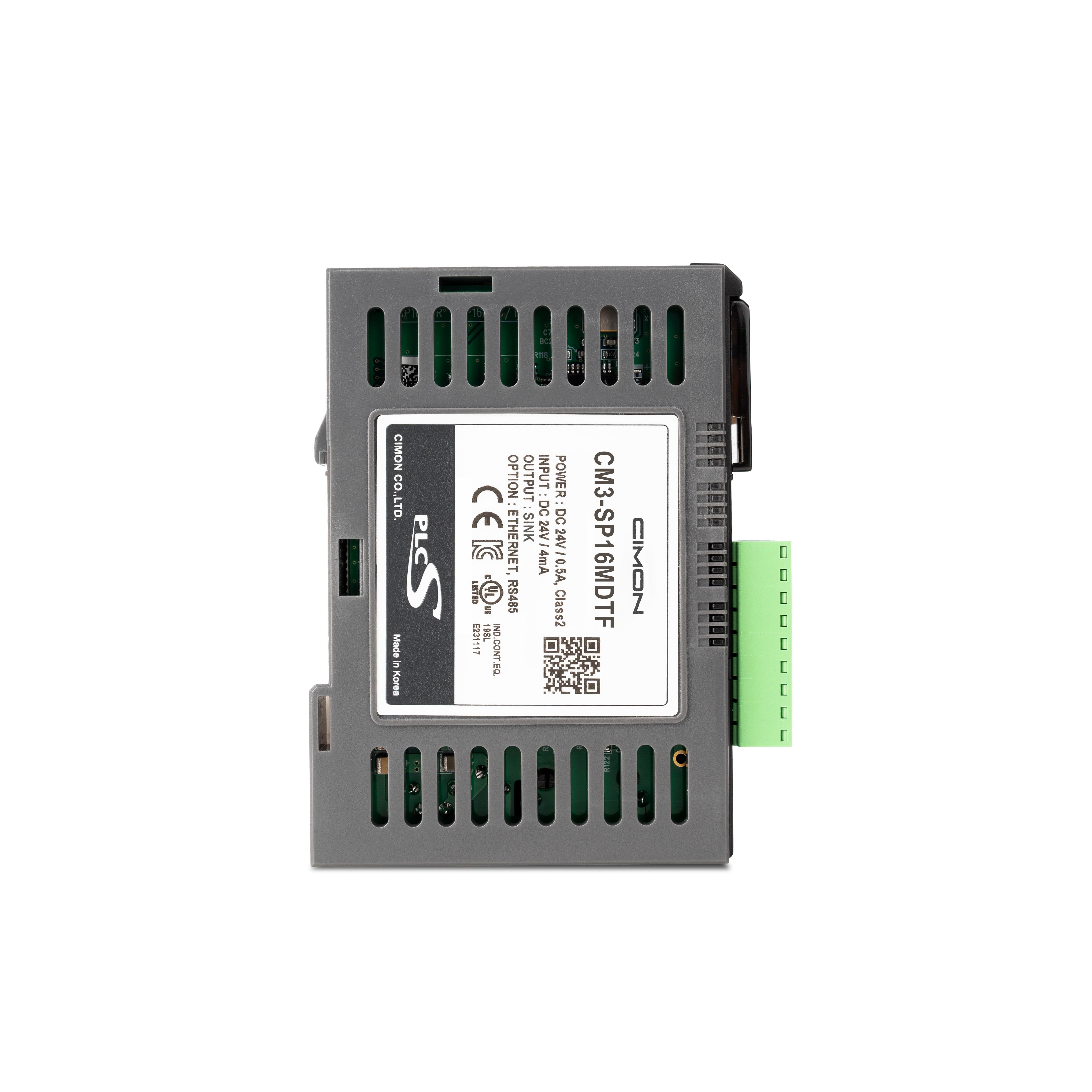

SP16MDTF Right Side

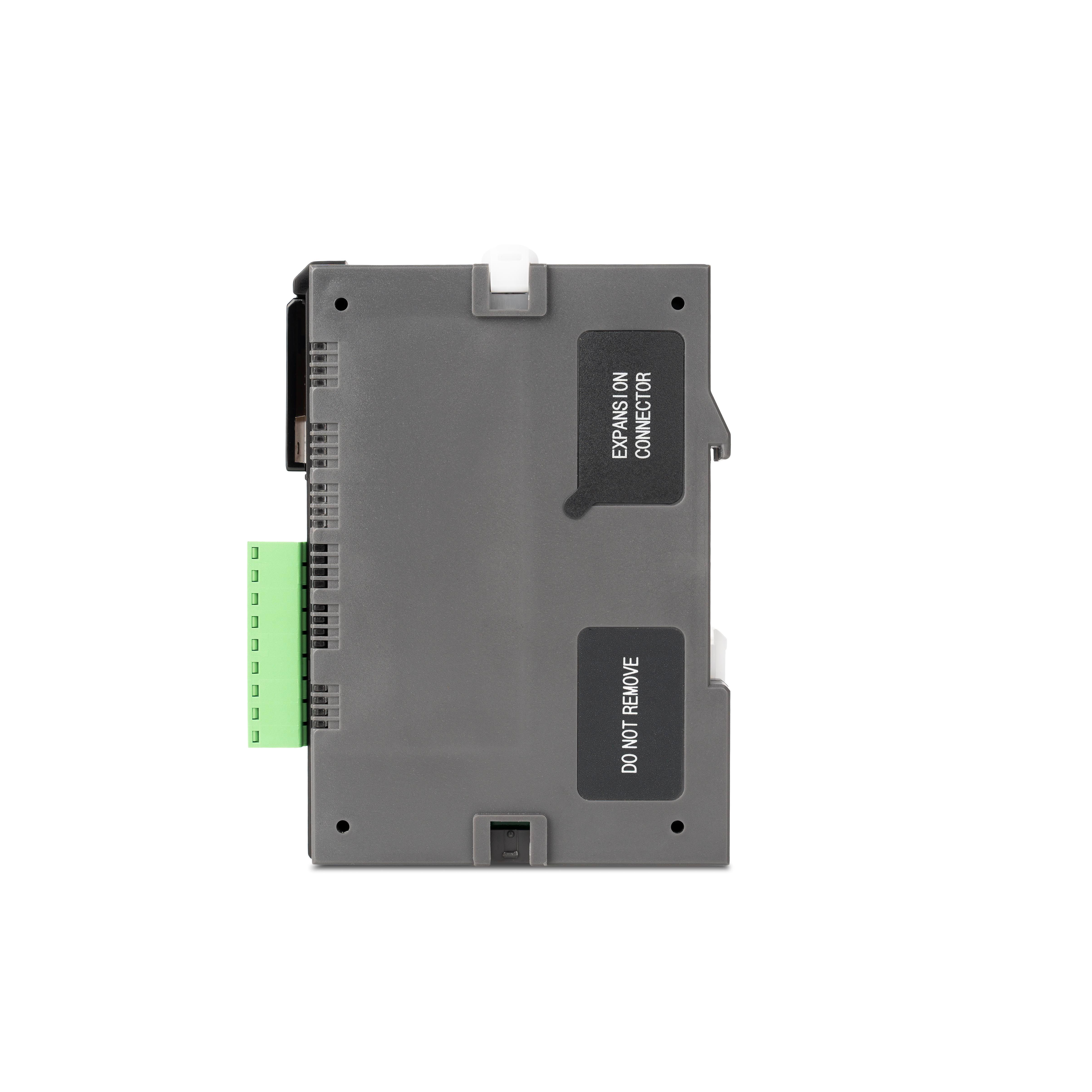

SP16MDTF Left Facing

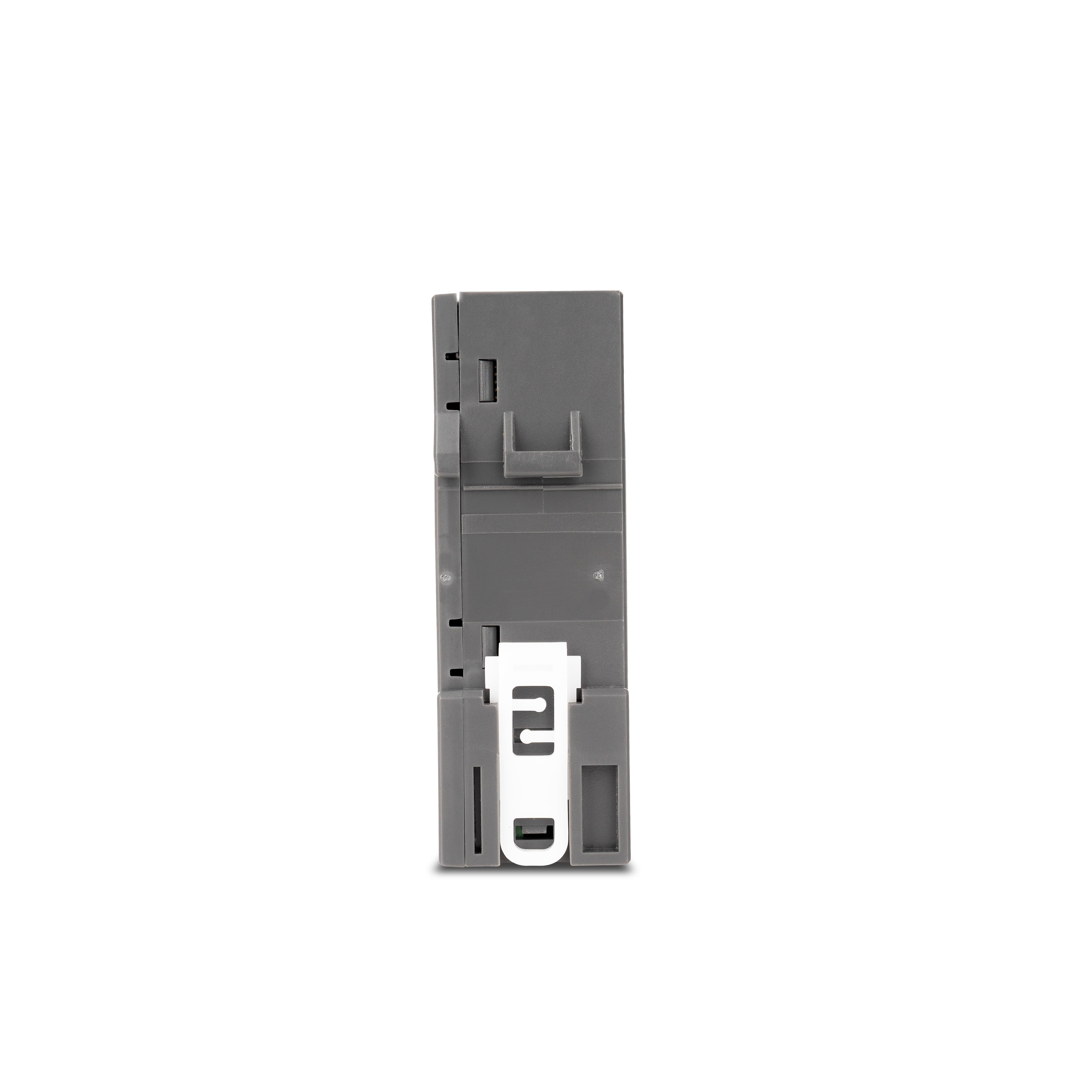

SP16MDTF Back

CM3-SP16MDTF

PLC-S PLC, Digital Sinking/Sourcing Input, Digital Sinking Output, Ethernet

SP16MDTF Front
SP16MDTF Front
SP16MDTF Front Face
SP16MDTF Front Rotated
SP16MDTF Front Rotated Face
SP16MDTF Rotated Side
SP16MDTF Bottom
SP16MDTF Right Side
SP16MDTF Left Facing
SP16MDTF Back
  • Power: 12/24 VDC
  • Expandable up to 11 + CPU (Total I/O 384)
  • 1x Ethernet
  • 2x Serial
  • 1x USB Mini-B Port
  • Discrete Input: 8 Point, 12/24 VDC, Sink/Source
  • Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point.
  • Removable screw-based terminal blocks.
PurchaseContact Us

Specifications

Functional

Power Supply
12-VDC, 0.58 A
Input Type
TR Sink
Output Type
T = TR Sink
Number of Channels
(16 Total)
8 Discrete Inputs,
8 Discrete Outputs
Rated Input Voltage
12 or 24 VDC
Note: 12 VDC is used for the HSC
Rated Input Current
4 mA
Input Insulation Method
Photocoupler
Input Voltage/ Current Thresholds
ON
CH1-4: 10 VDC/4 mA
CH5-8: 14 VDC/4 mA
OFF
CH1-4: 6 VDC/1 mA
CH5-8: 12 VDC/1 mA
Rated Output Voltage
12, 24 VDC
Rated Output Current
1 point = 0.2 A
1 COM = 2 A
Output Insulation Method
Photocoupler
Comm. Ports
RS-232, 1 Channel
RS-422/485, 1 Channel
Ethernet, 1 Port
Utility/ Program Port
Mini-B USB, Ethernet,
RS-232/422/485

Environmental

Operating Temperature
-10 – +60 °C (+14 – +140 °F)
Storage Temperature
-25 – +80 °C (-13 – +176 °F)
Operating/ Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous
1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
ESD Immunity
±4 kV - Contact Discharges
±8 kV - Air Discharges
ESD Standard
IEC 61131-2
IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2
IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power
2 kV - Discrete I/O (VAC)
1 kV - Discrete I/O (VDC)
1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2
IEC 61000-4-4

Physical

Product Dimensions (H x W x D)
91 x 30 x 64 mm (3.6 x 1.2 x 2.5 in)
Product Weight
155 g (0.34 lb)
