CM3-SB32MDCF

Brick PLC, Digital Sinking/Sourcing Input, Digital Sourcing Output, Analog I/O

  • Power: 20/24 VDC
  • Non-Expandable
  • 1x Ethernet
  • 1x Serial
  • 1x USB Mini-B Port
  • Discrete Input: 16 Point, 12/24 VDC, Sink/Source
  • Discrete Output: 16 Point, 12/24 VDC, Source, 0.2 A/Point
  • Analog Input: 2 Point, 0-10 V, 0-20 mA
  • Analog Output: 2 Point, 0-10 V, 4-20 mA
  • Screw-based terminals
PurchaseContact Us

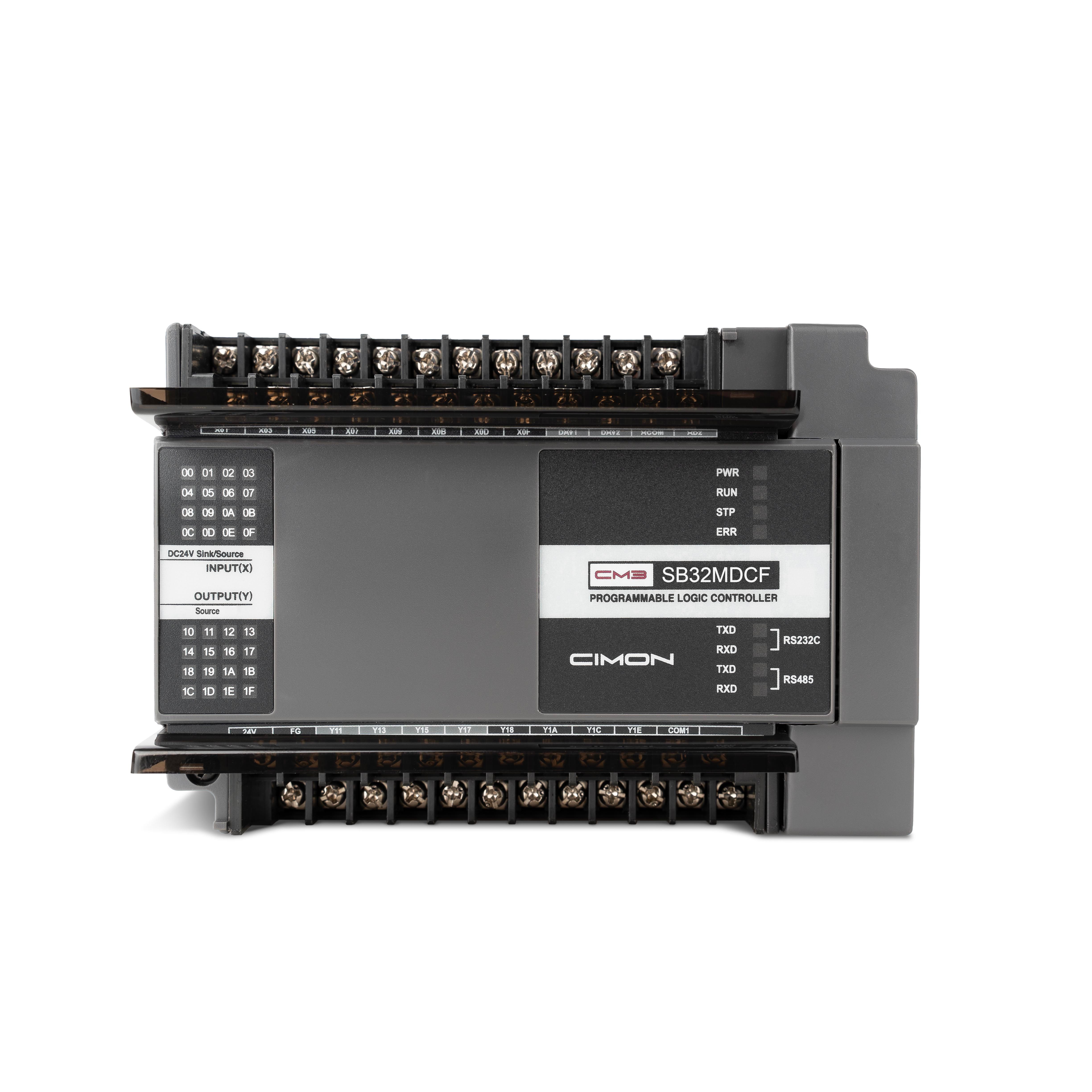

SB32MDCF Front
SB32MDCF Front
SB32MDCF Front Face

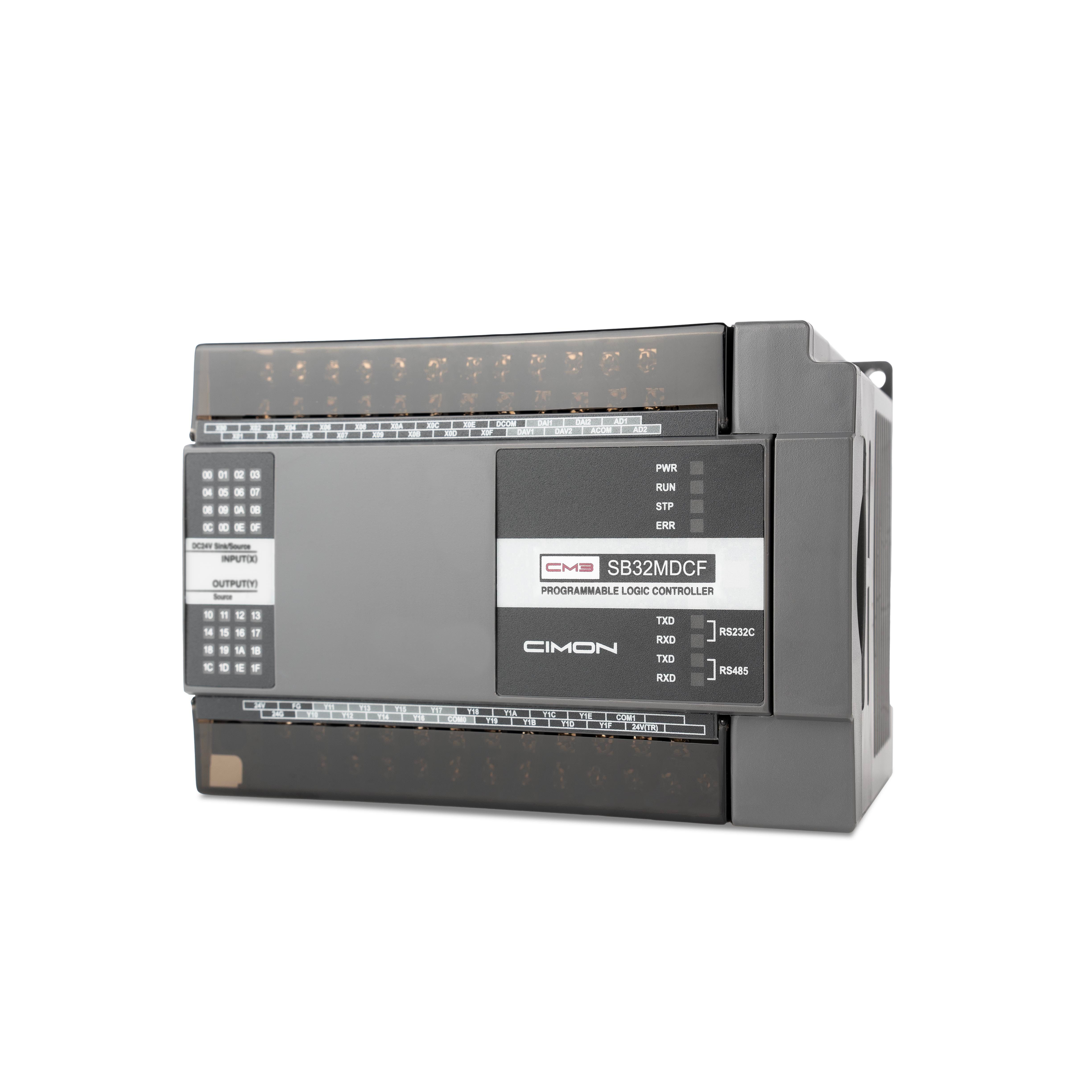

SB32MDCF Front Rotated

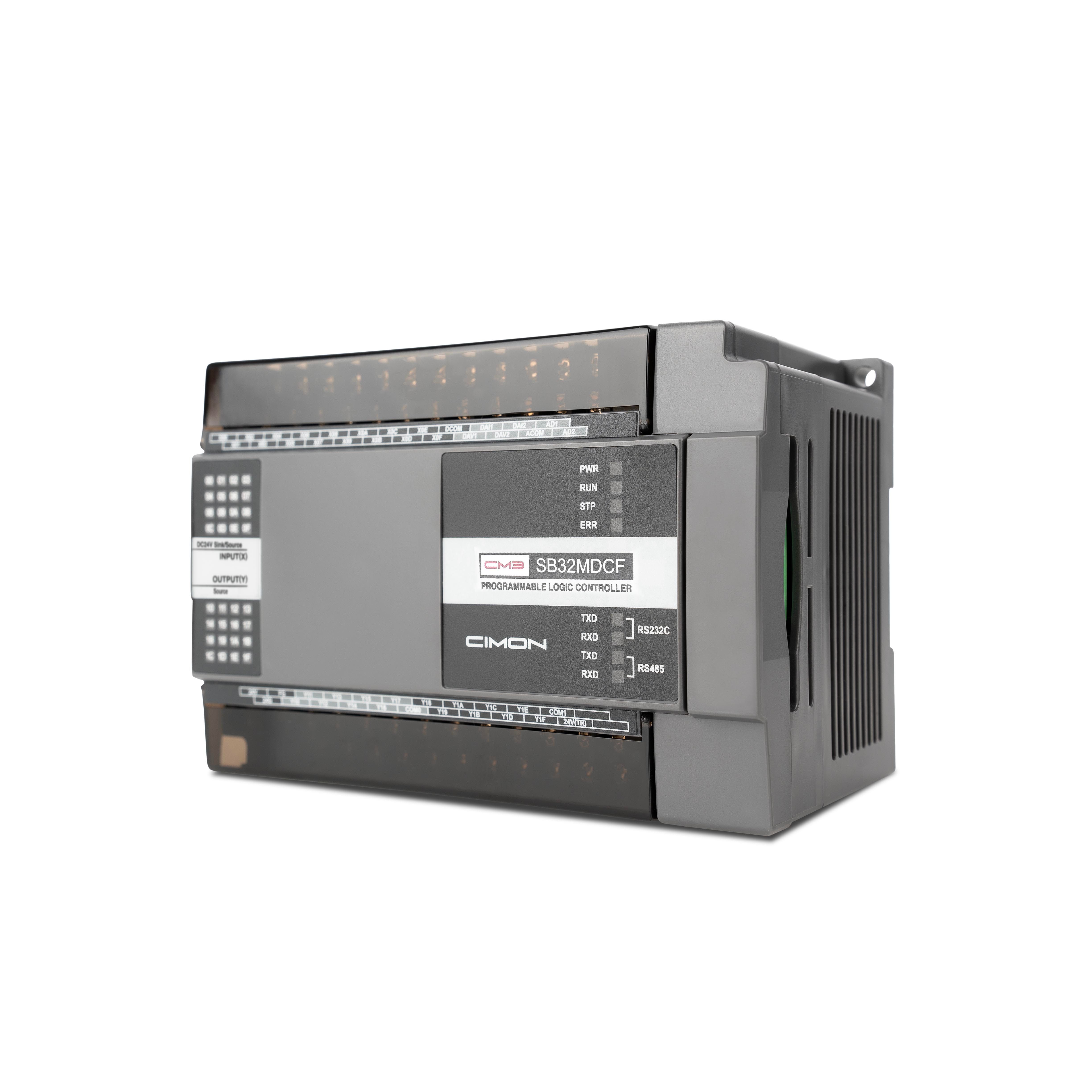

SB32MDCF Front Rotated Side
SB32MDCF Front Rotated Face

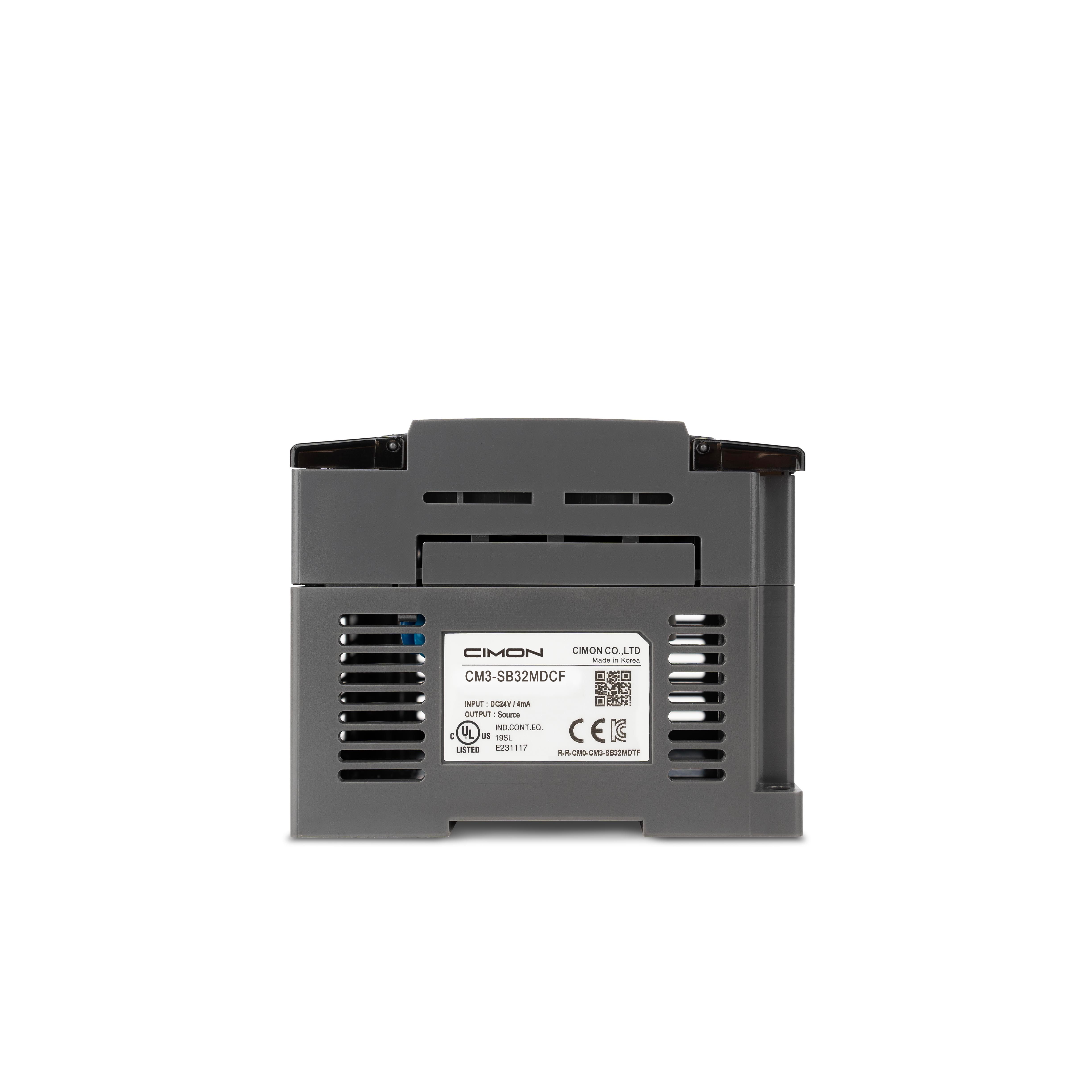

SB32MDCF Right Side

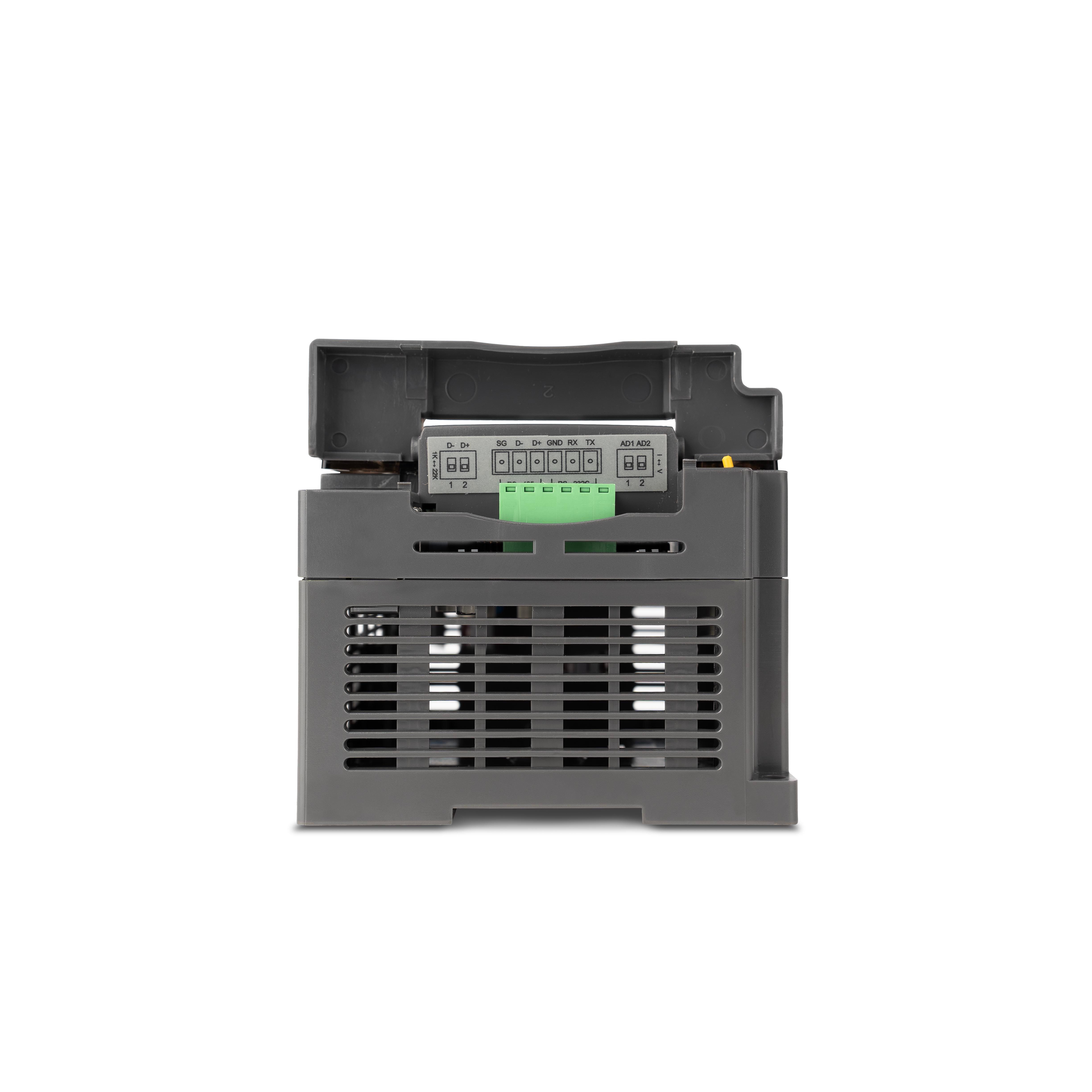

SB32MDCF Left Side
SB32MDCF Side

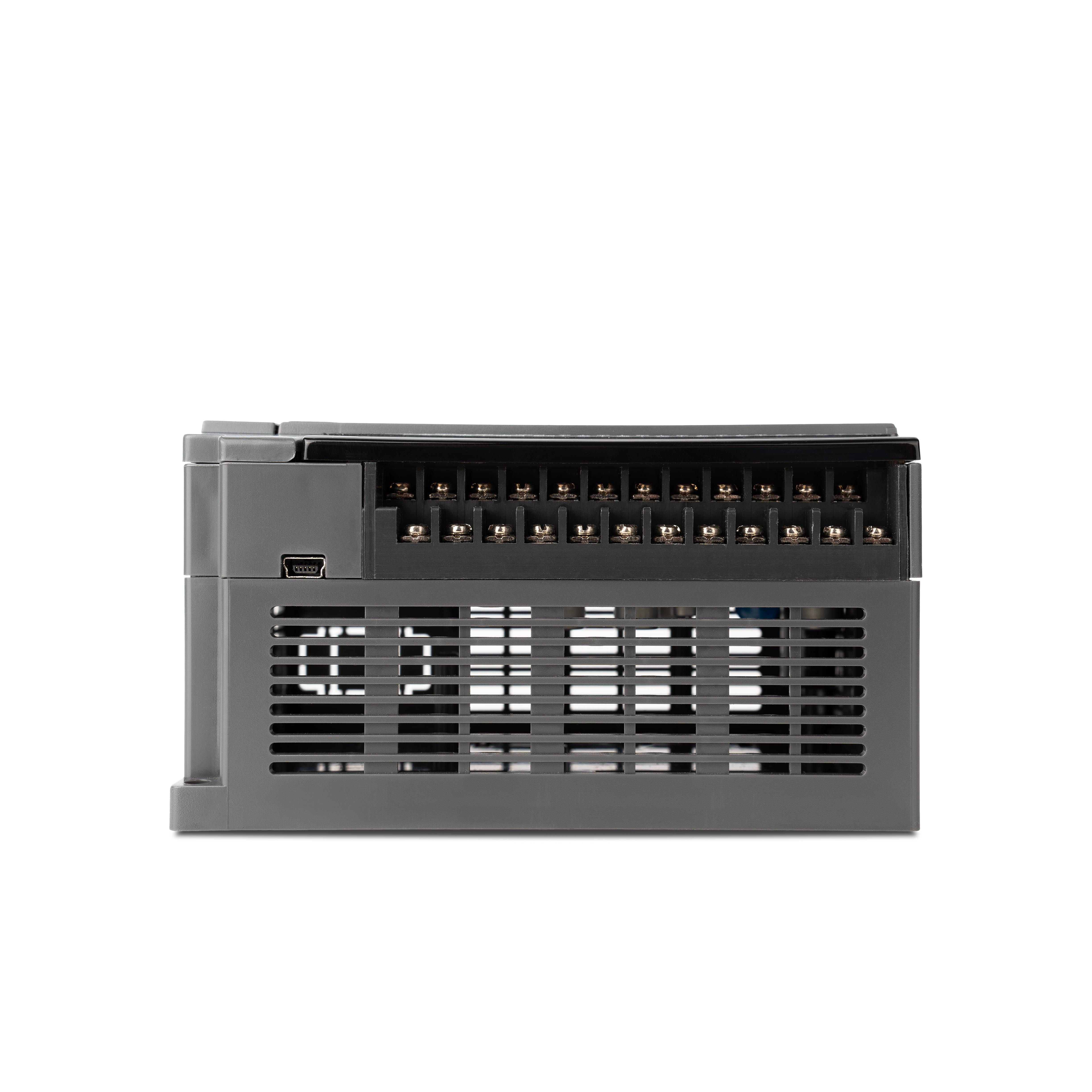

SB32MDCF Top
SB32MDCF Top Face

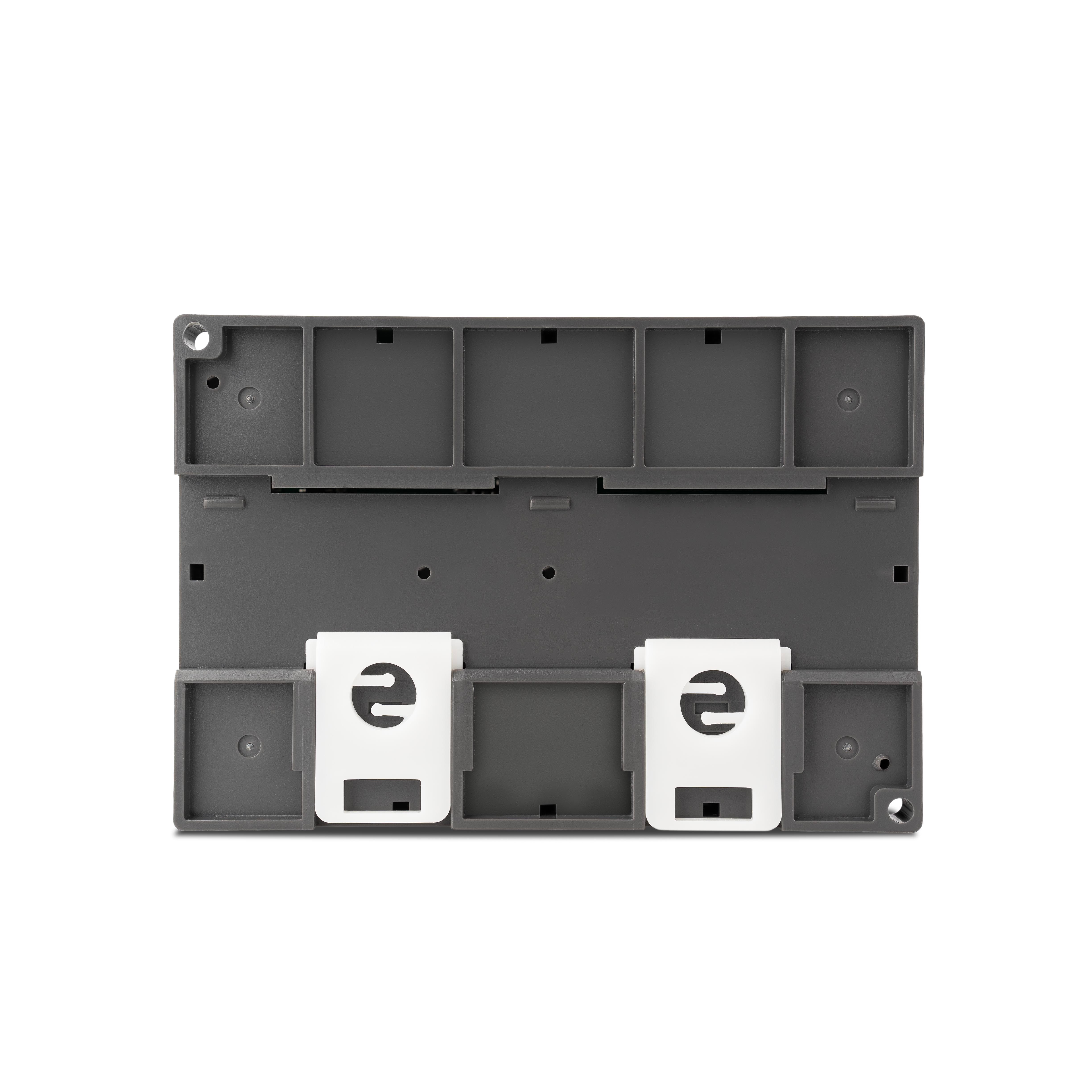

SB32MDCF Bottom

CM3-SB32MDCF

Brick PLC, Digital Sinking/Sourcing Input, Digital Sourcing Output, Analog I/O

SB32MDCF Front
SB32MDCF Front
SB32MDCF Front Face
SB32MDCF Front Rotated
SB32MDCF Front Rotated Side
SB32MDCF Front Rotated Face
SB32MDCF Right Side
SB32MDCF Left Side
SB32MDCF Side
SB32MDCF Top
SB32MDCF Top Face
SB32MDCF Bottom
  • Power: 20/24 VDC
  • Non-Expandable
  • 1x Ethernet
  • 1x Serial
  • 1x USB Mini-B Port
  • Discrete Input: 16 Point, 12/24 VDC, Sink/Source
  • Discrete Output: 16 Point, 12/24 VDC, Source, 0.2 A/Point
  • Analog Input: 2 Point, 0-10 V, 0-20 mA
  • Analog Output: 2 Point, 0-10 V, 4-20 mA
  • Screw-based terminals
PurchaseContact Us

Specifications

Functional

Power Supply
20–24 VDC, 0.33 A
Discrete Input Type
TR Sink/Source
Discrete Output Type
C = TR Source
T = TR Sink
Analog Input Type
Voltage: 0–10 V
Current: 0–20 mA
Analog Output Type
Voltage: 0–10 V (Load resistance > 1 kΩ)
Current: 4–20 mA (Load resistance < 600 Ω)
Number of Channels
(36 Total)
16 Discrete Inputs, 16 Discrete Outputs,
2 Analog Inputs, 2 Analog Outputs
Rated Discrete Input Voltage
12 or 24 VDC
Note: 12 VDC is used for the HSC
Rated Discrete Input Current
4 mA
Discrete Input Insulation Method
Photocoupler
Discrete Input Voltage/Current Thresholds
ON
CH1-4: 10 VDC/3 mA
CH5-16: 14 VDC/3 mA
OFF
CH1-4: 8 VDC/1 mA
CH5-16: 12 VDC/1 mA
Rated Discrete Output Voltage
12, 24 VDC
Rated Discrete Output Current
1 point = 0.2 A
1 COM = 1 A
Discrete Output Insulation Method
Photocoupler
Communication Ports
RS-232, 1 Channel
RS-422/485, 1 Channel
Ethernet, 1 Port
Utility/ Program Port
Mini-B USB, Ethernet, RS-232/422/485

Environmental

Operating Temperature
-10 – +55°C (+14 – +131°F)
Storage Temperature
-25 – +80°C (-13 – +176°F)
Operating/ Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous
1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
ESD Immunity
±4 kV - Contact Discharges
±8 kV - Air Discharges
ESD Standard
IEC 61131-2
IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2
IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power
2 kV - Discrete I/O (VAC)
1 kV - Discrete I/O (VDC)
1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2
IEC 61000-4-4

Physical

Product Dimensions (H x W x D)
93 x 135 x 75 mm (3.7 x 5.3 x 3.0 in)
Product Weight
348 g (0.77 lb)
