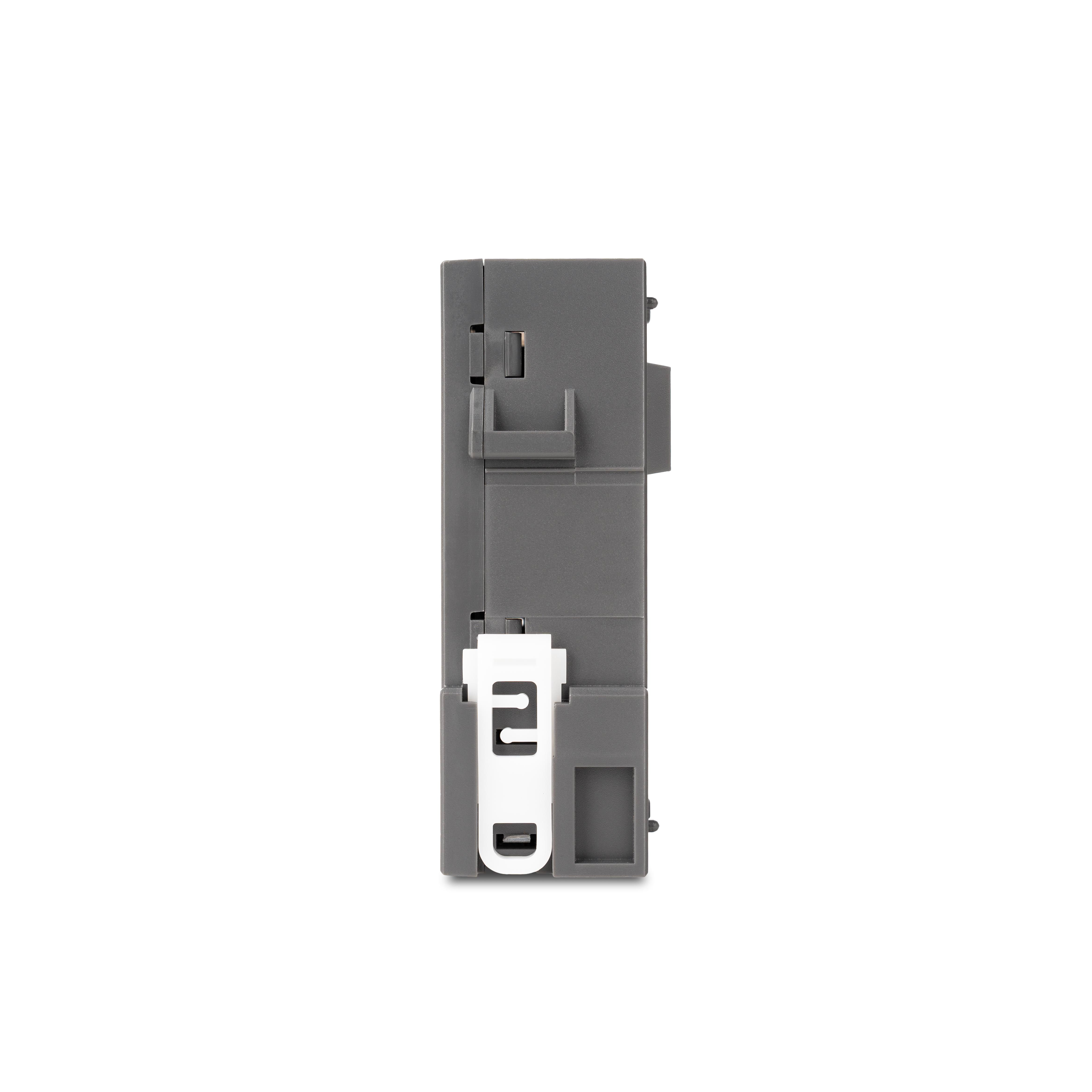

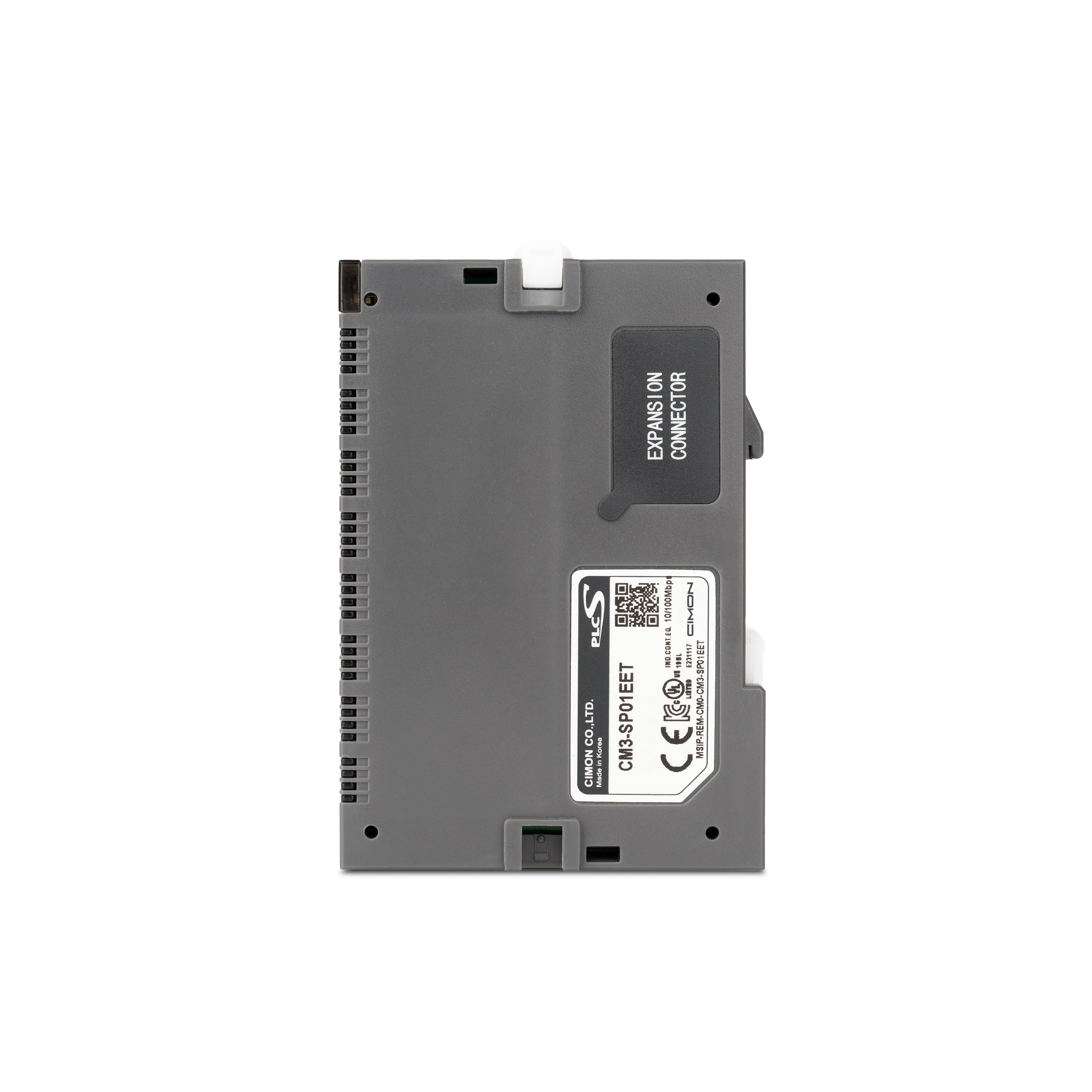

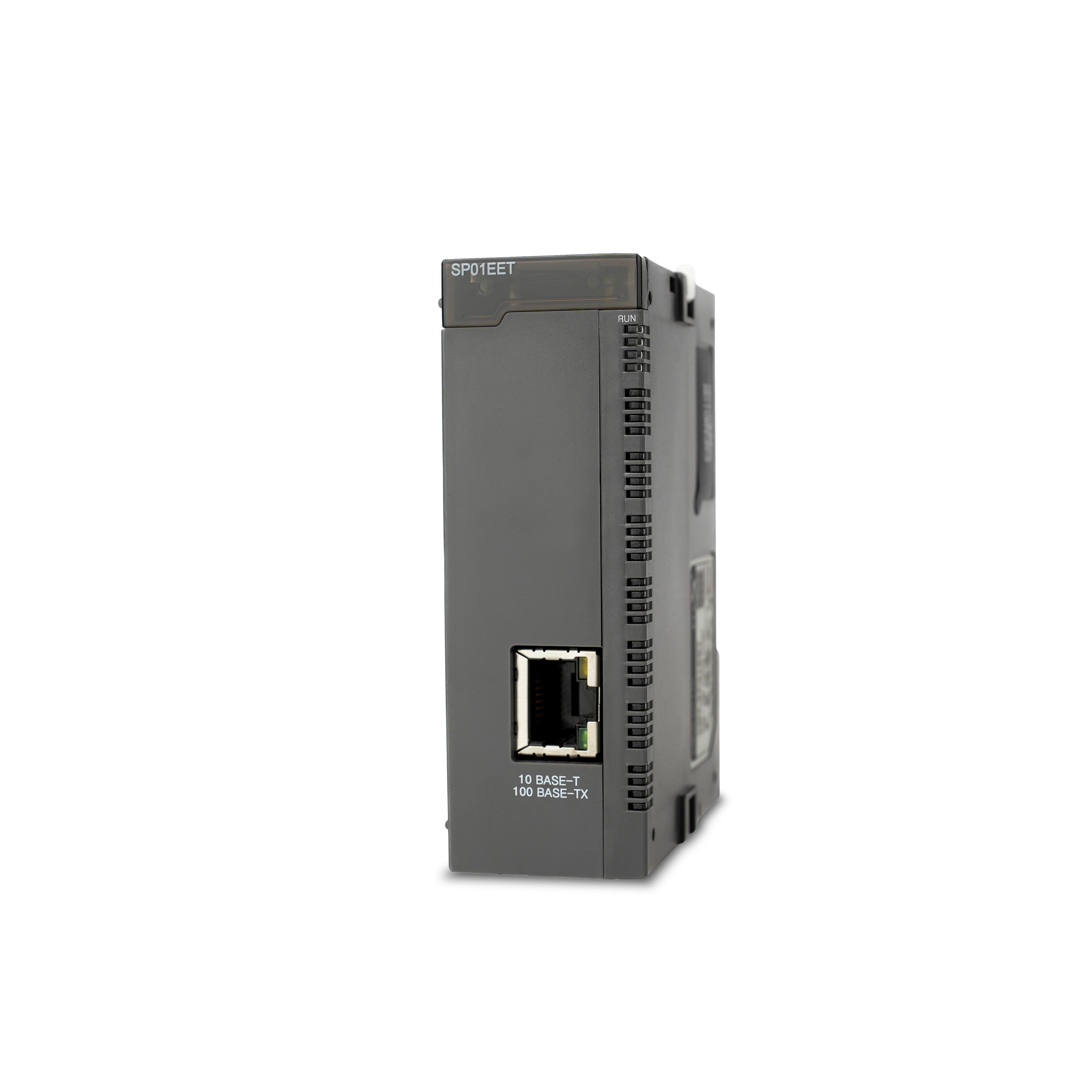

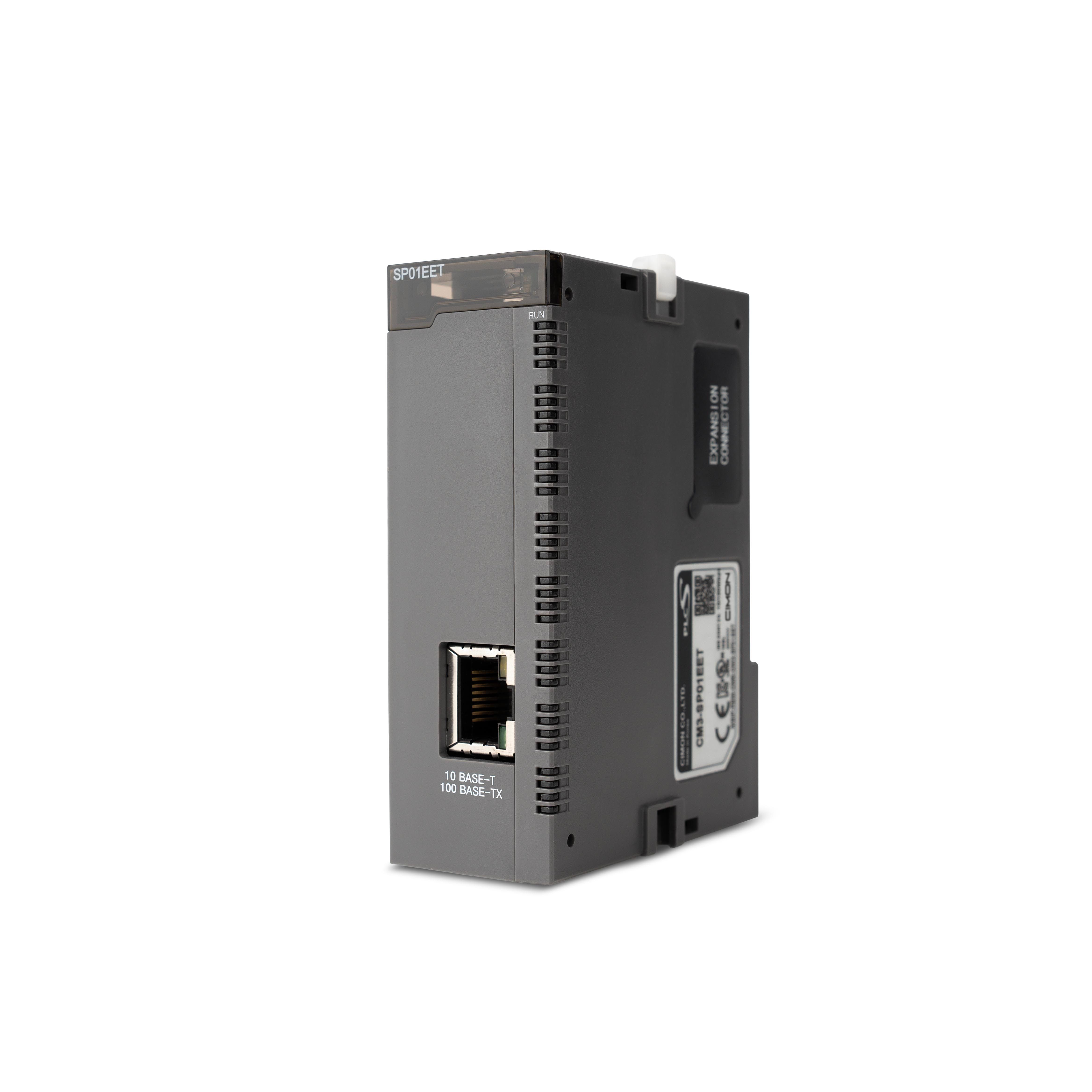

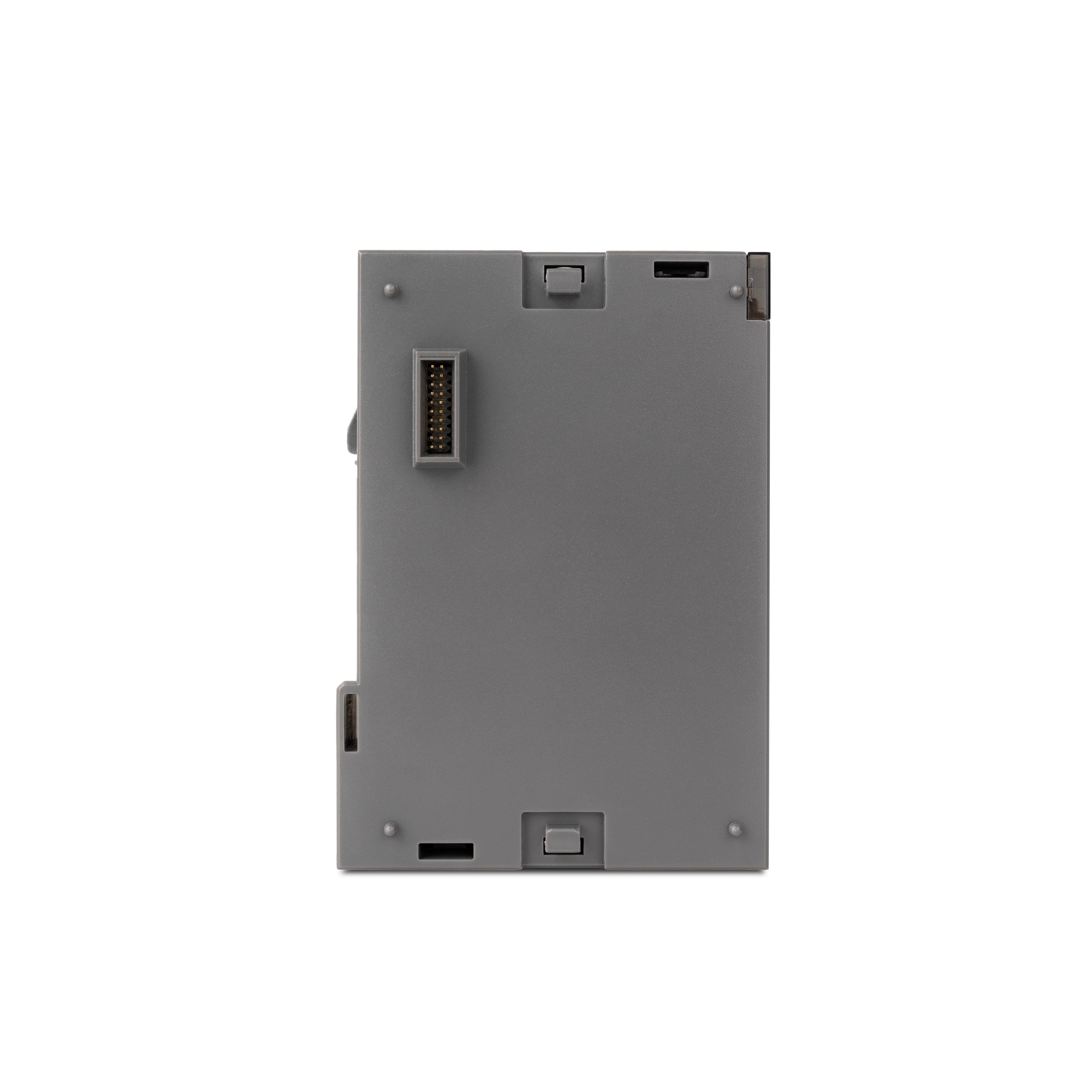

CM3-SP01EET
Ethernet Expansion Module
- 1 RJ45
- 10/100 Mbps
- User Protocol TCP
- Modbus TCP Master/Slave
PrintCM3-SP01EET
Ethernet Expansion Module
Print- 1 RJ45
- 10/100 Mbps
- User Protocol TCP
- Modbus TCP Master/Slave
Specifications
Functional
Service Interface Channel 1
RJ45
Service Transmission Speed
10/100 Mbps
Service Maximum Distance
100 m
ServiceCIMON HMI
Yes (TCP, UDP)
Service CIMON Loader
Yes (UDP)
Service Modbus Master
Yes (TCP)
Service Modbus Slave
Yes (TCP)
Service User Protocol
Yes (TCP, UDP)
Service PLC Link
No
Service High-Speed PLC Link
Yes
Service DHCP
Yes
Environmental
Operating Temperature
-10 – +65 °C (+14 – +149 °F)
Storage Temperature
-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous 1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
Square Wave Impulse Noise Standard
CIMON Standard
ESD Immunity
±4 kV - Contact Discharges ±8 kV - Air Discharges
ESD Immunity Standards
IEC 61131-2 IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2 IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2 IEC 61000-4-4
Physical
Product Dimensions (H x W x D)
90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in)
Product Weight
77 g (0.17 lb)
