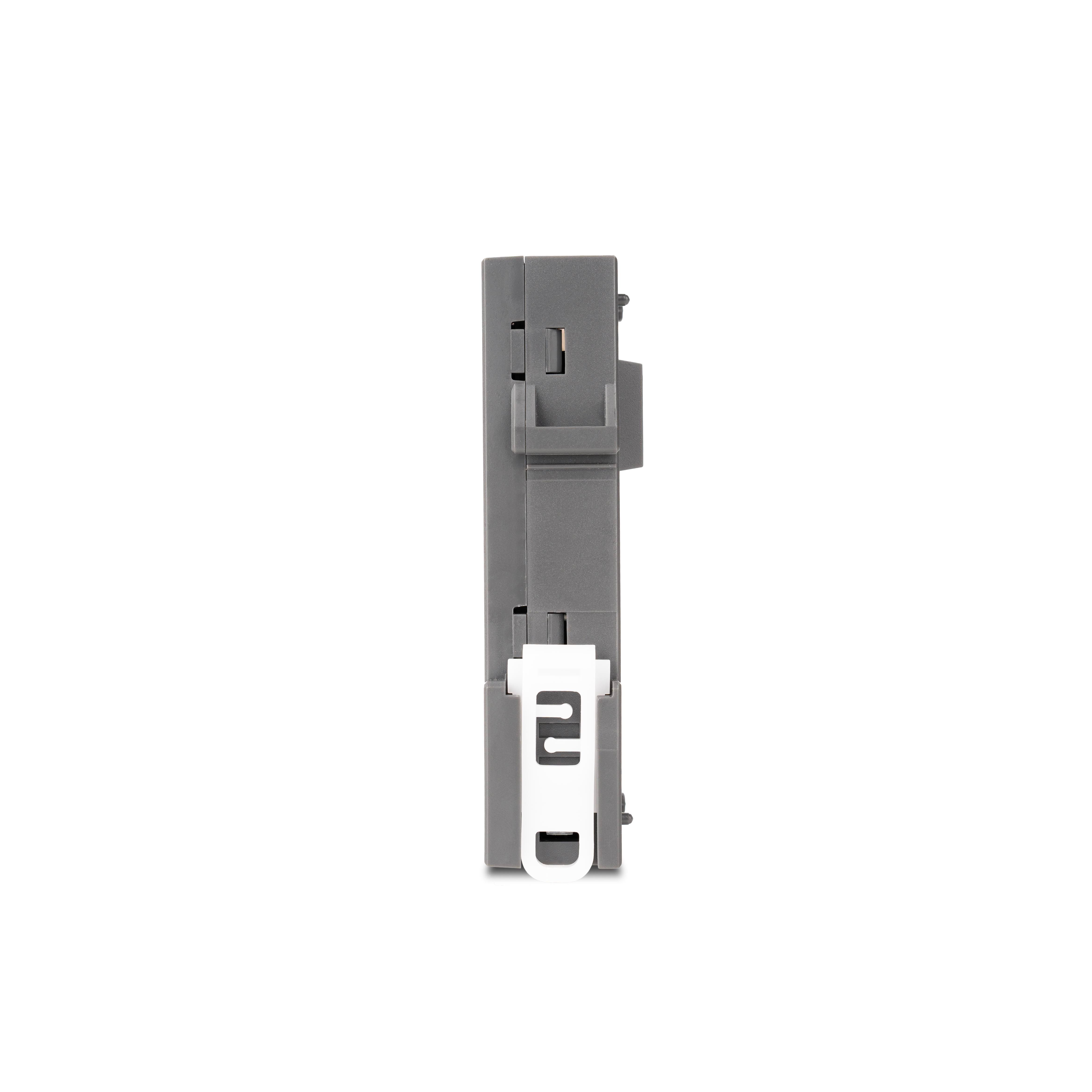

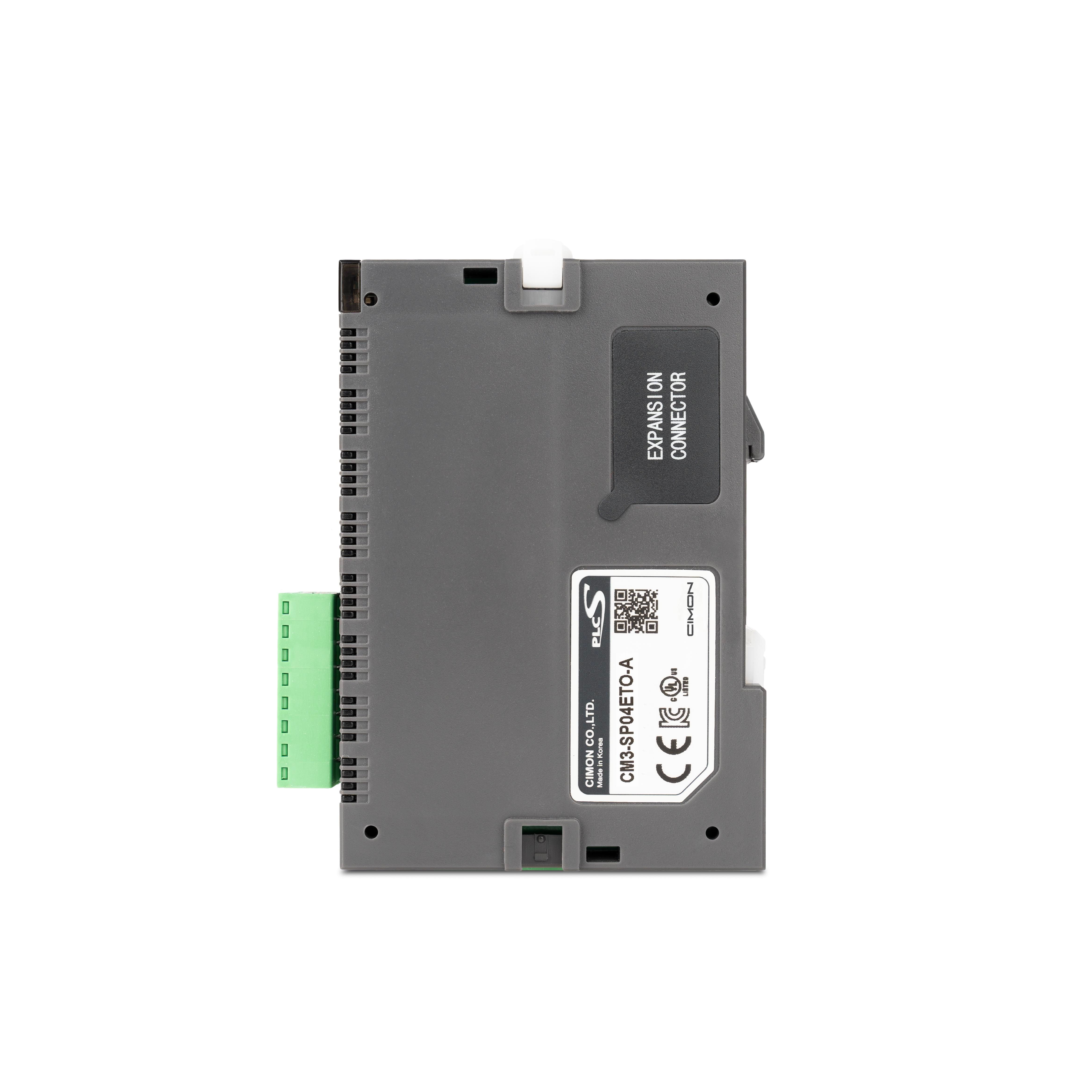

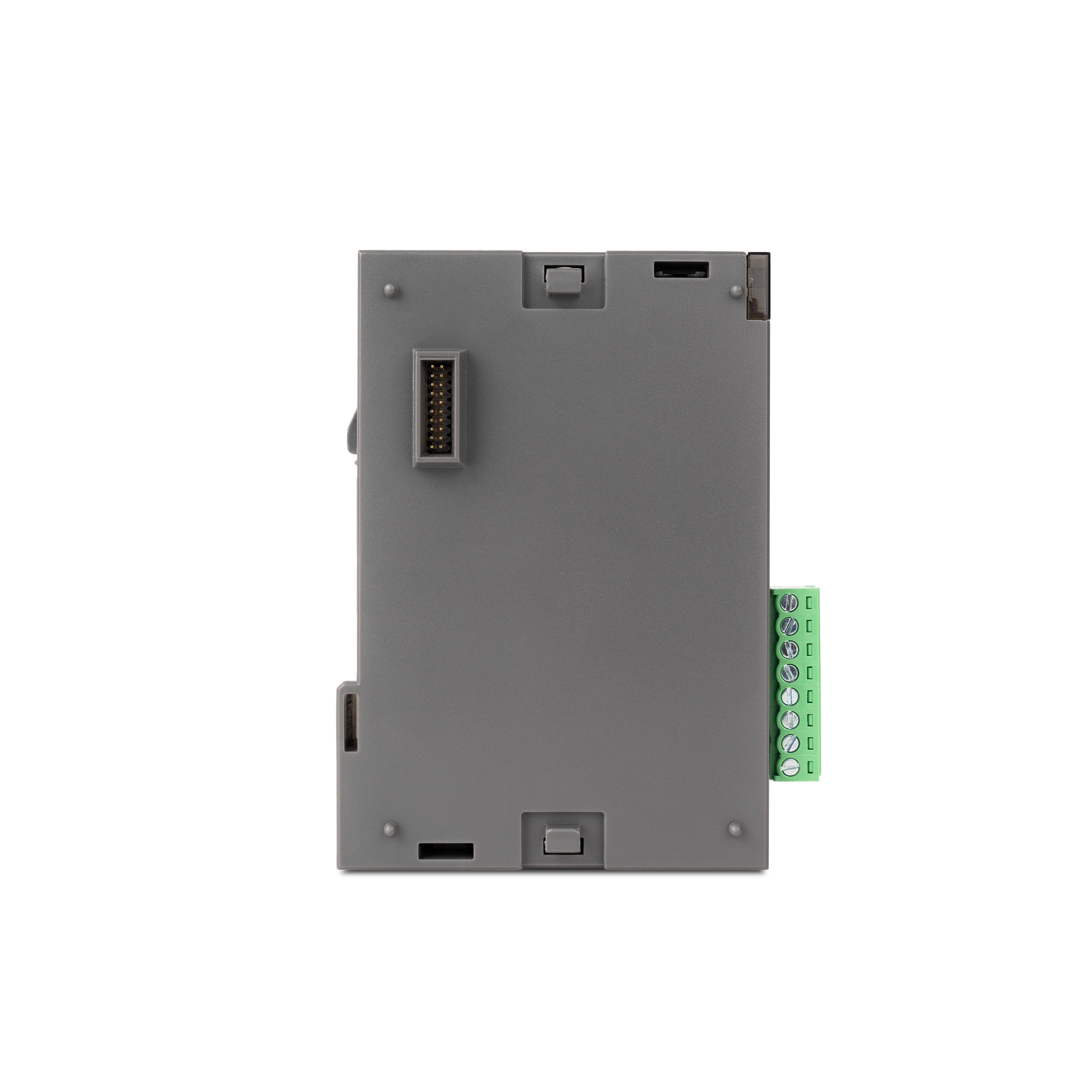

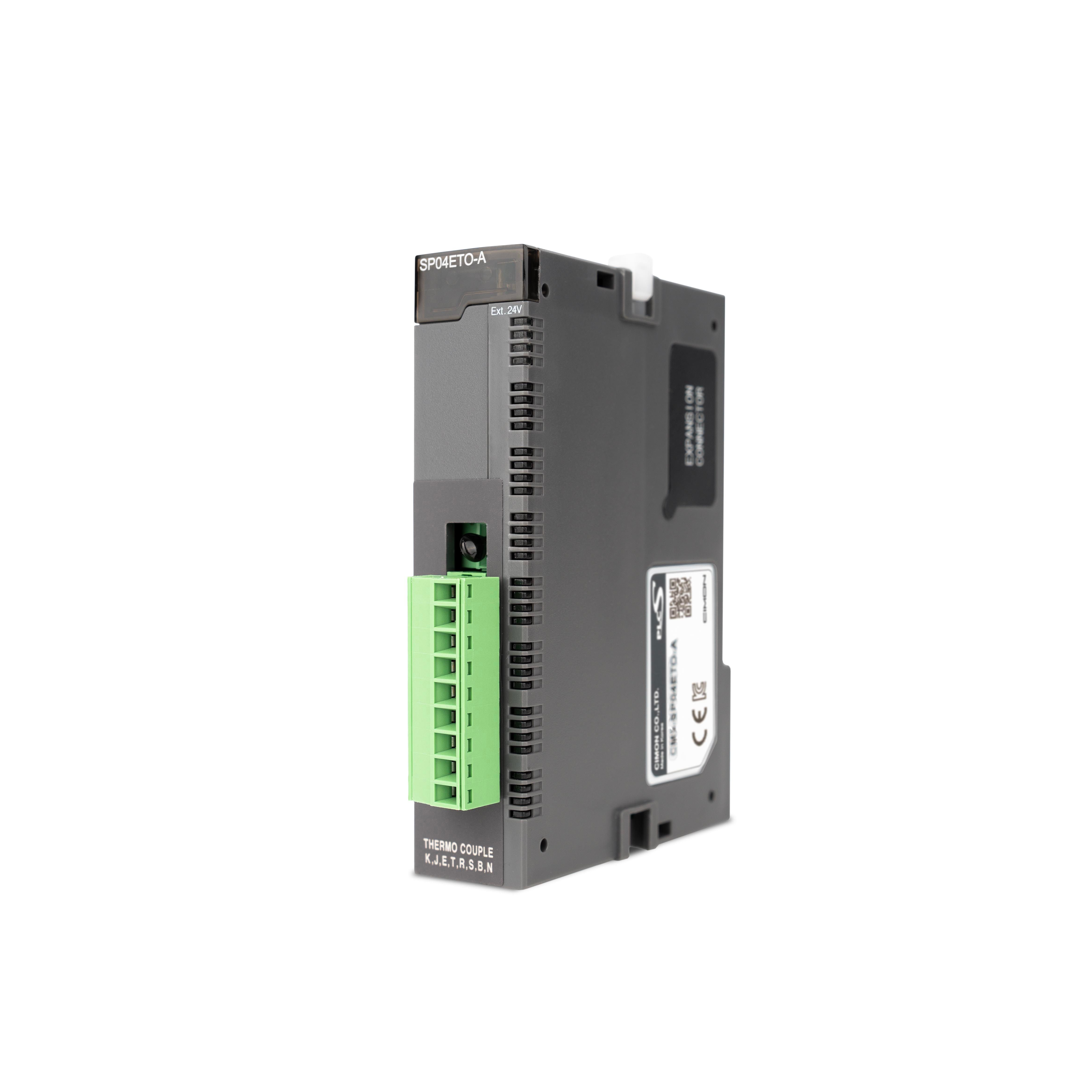

CM3-SP04ETO-A
Analog Input Expansion Module, Thermocouple
- Thermocouple (TC)
- 4-Channel
- 14-bit Digital Conversion
- Removable screw-based terminal blocks
PrintCM3-SP04ETO-A
Analog Input Expansion Module, Thermocouple
Print- Thermocouple (TC)
- 4-Channel
- 14-bit Digital Conversion
- Removable screw-based terminal blocks
Specifications
Functional
Type
Thermocouple
Sensor
K, J, E, T, B, R, S, N type
Temperature Input Range
K: -200.0 - 1200.0°C (-5891–48838 uV) J: -200.0 - 800.0°C (-7890–48494 uV) E: -200.0 - 600.0°C (-8825–45093 uV) T: -200.0 - 400.0°C (-5603–20872 uV) B: 400.0 - 1800.0°C (787–13591 uV) R: 0.0 - 1750.0°C (0–20877 uV) S: 0.0 - 1750.0°C (0–18503 uV) N: -200.0 - 1250.0°C (-3990–45694 uV)
Digital Conversion
Digitally converted value: 0–16000 (-8000–8000)/-192–16191 (-8192–8191) Converted temperature value: Range of measured temperature (one digit after the decimal point * 10)
Wire Disconnection Detection
Each channel
Accuracy
±[(Full Scale) x 0.3% + 1°C (RJC Error)]
Max Conversion Rate
50 ms/4 Channels
Number of Input Channels
4
Insulation Type
Photocoupler between input terminal and PLC power
Terminal Block
9 points Terminal Block
Current Consumption
40 mA (+3.3V) 10 mA (+24V)
Environmental
Operating Temperature
-10 – +65 °C (+14 – +149 °F)
Storage Temperature
-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous 1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
Square Wave Impulse Noise Standard
CIMON Standard
ESD Immunity
±4 kV - Contact Discharges ±8 kV - Air Discharges
ESD Immunity Standards
IEC 61131-2 IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2 IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2 IEC 61000-4-4
Physical
Product Dimensions (H x W x D)
90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in)
Product Weight
87.5g (0.19 lb)
