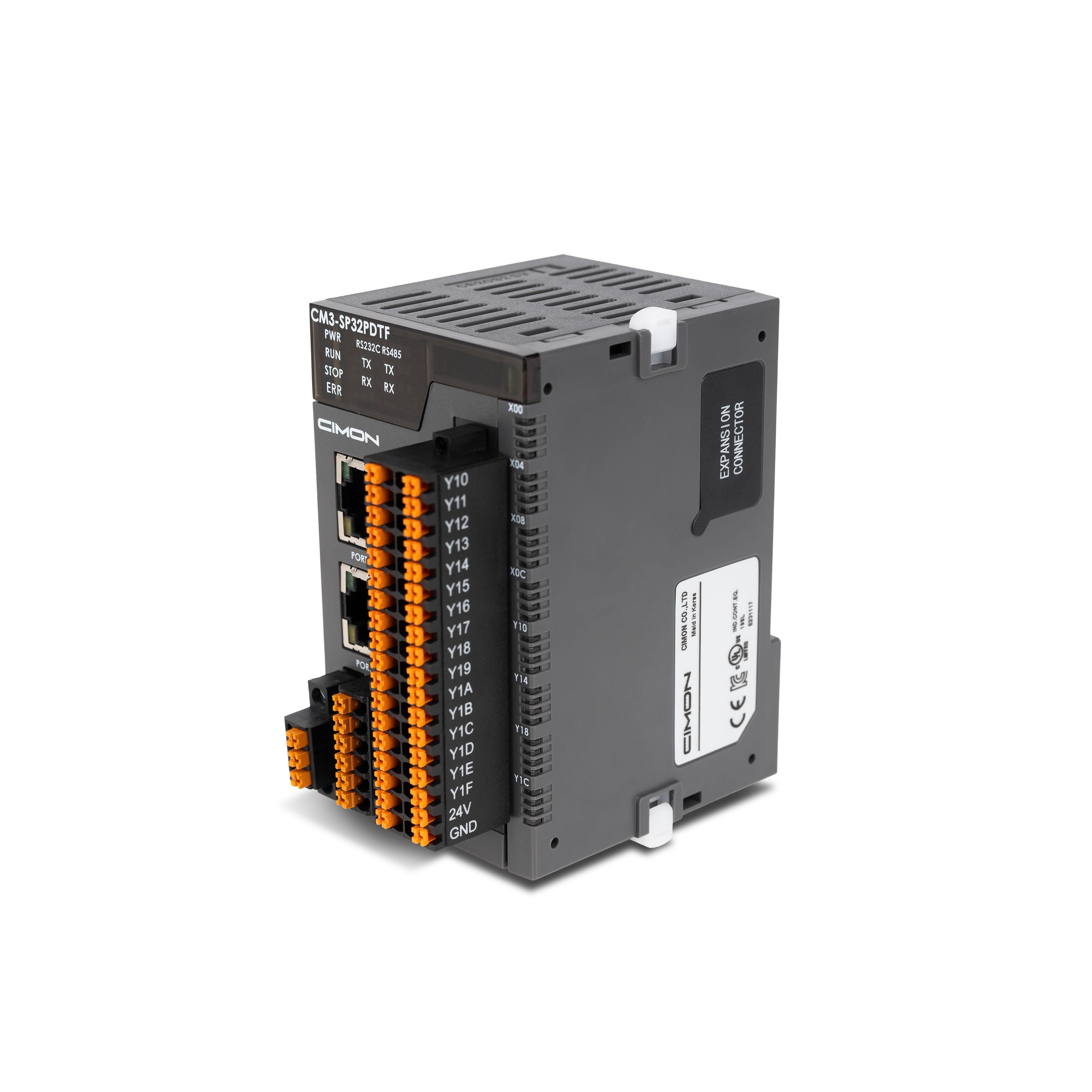

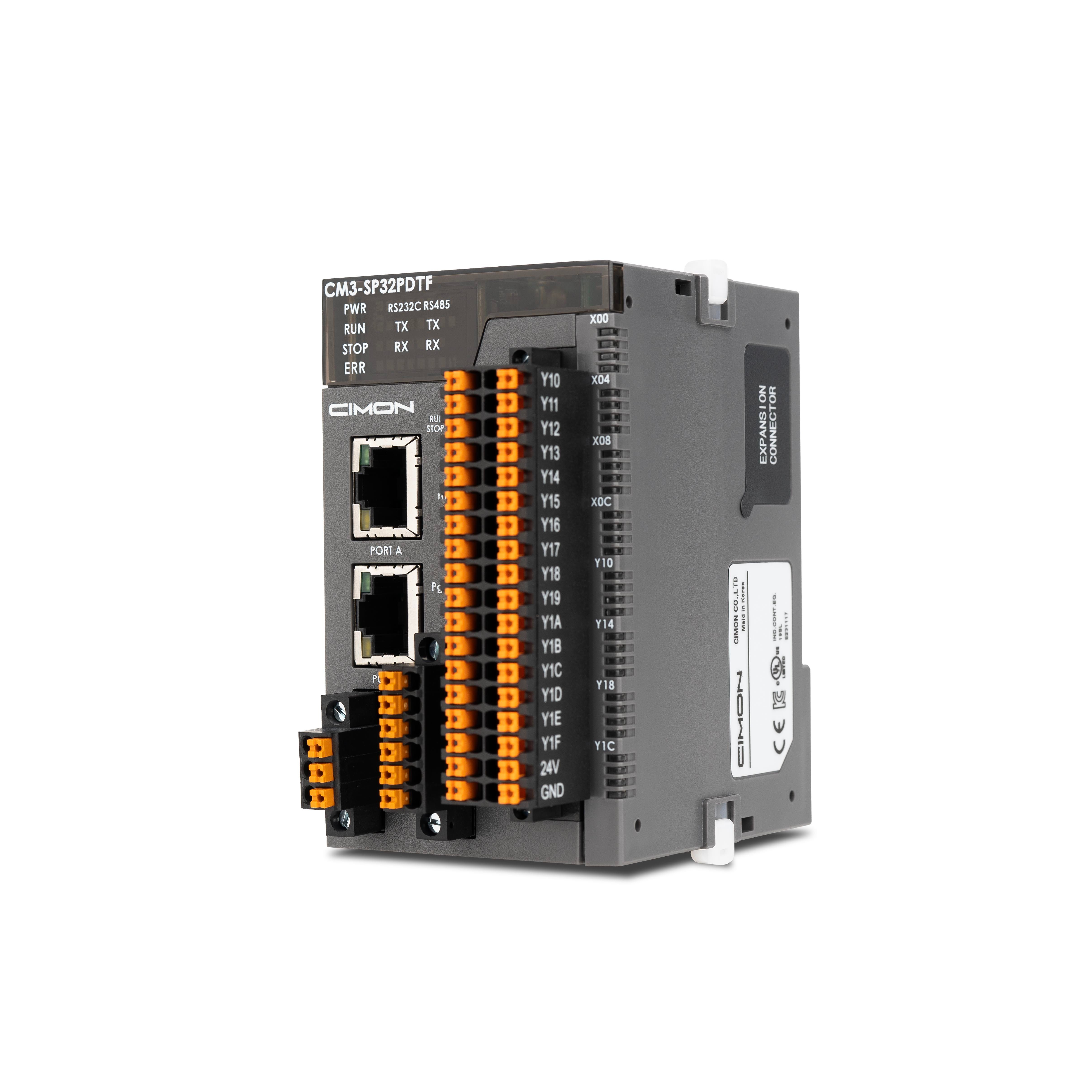

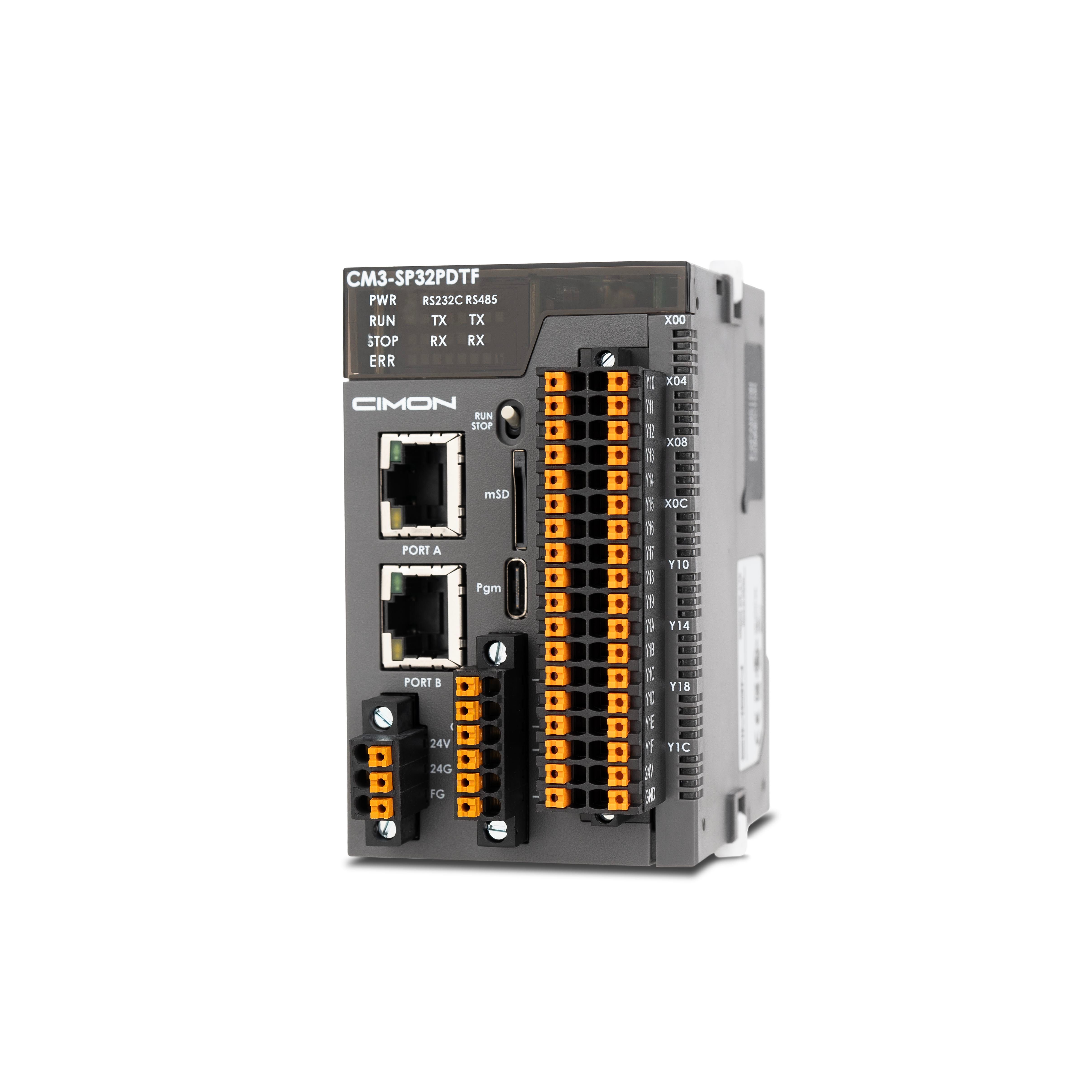

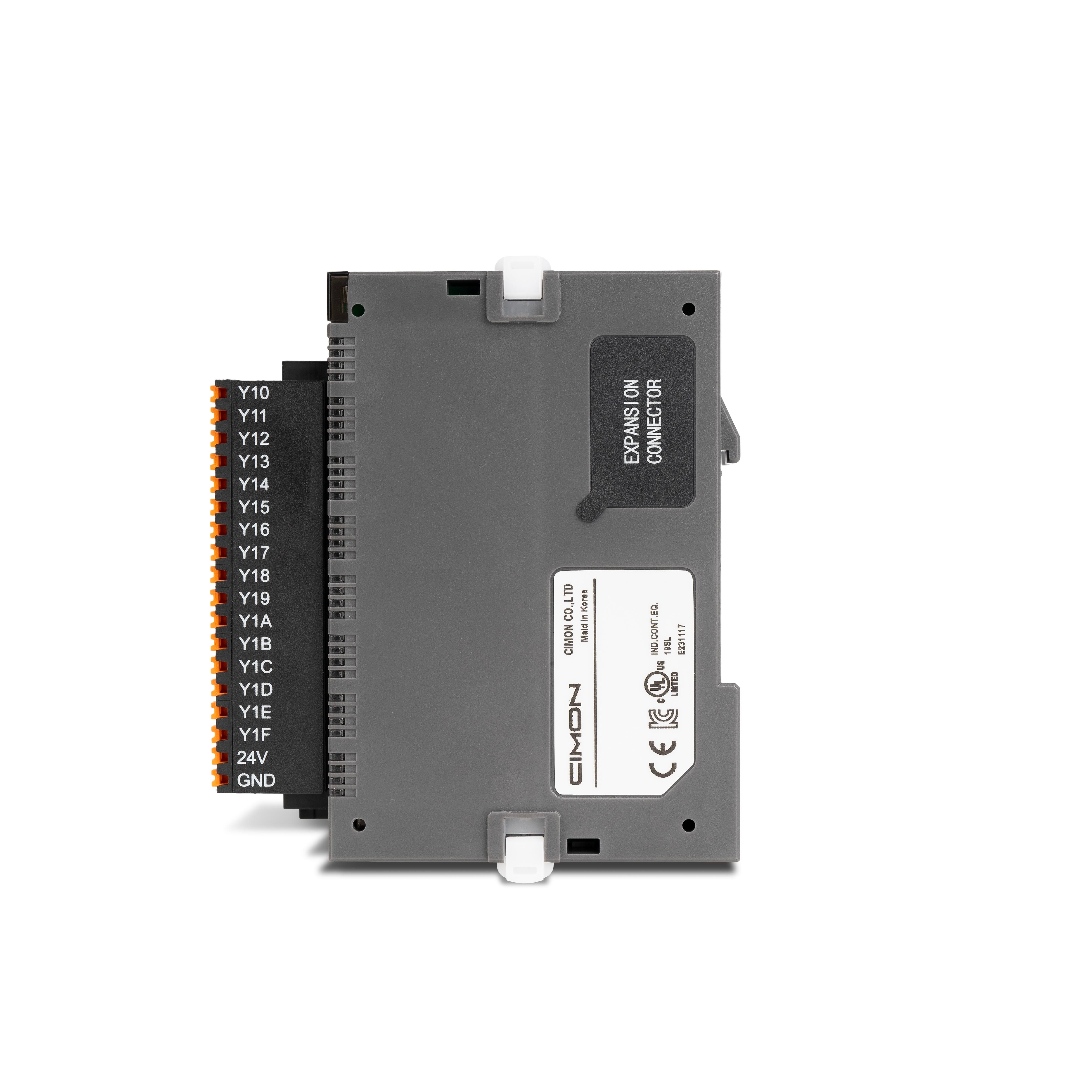

CM3-SP32PDTF

PLC-S PLUS, Digital Sinking/Sourcing Input, Digital Sinking Output, Ethernet

Power: 12/24 VDC
Expandable up to 15 + CPU (Total I/O 512)
2x Ethernet
1x Serial
1x USB-C Port
1x MicroSD Card Slot
Discrete Input: 16 Point, 12/24 VDC, Sink/Source
Discrete Output: 16 Point, 12/24 VDC, Sink, 0.2 A/Point
Removable Push-in Terminal Connector

Purchase Contact Us

CM3-SP32PDTF

PLC-S PLUS, Digital Sinking/Sourcing Input, Digital Sinking Output, Ethernet

Power: 12/24 VDC
Expandable up to 15 + CPU (Total I/O 512)
2x Ethernet
1x Serial
1x USB-C Port
1x MicroSD Card Slot
Discrete Input: 16 Point, 12/24 VDC, Sink/Source
Discrete Output: 16 Point, 12/24 VDC, Sink, 0.2 A/Point
Removable Push-in Terminal Connector

Purchase Contact Us

Specifications

Functional

Power Supply

12-24 VDC, 0.58 A
Tolerance : -5%, +10%

Power Consumption

4.8W (MAX: 23.9W)

Program Control Method

Cyclic Execution, Time Driven Interrupt, Stored Program

Total Data Memory (words)

243,989 (Device 64,789, Global Var 179,200)

User Data Memory

512KB(PLC Program : 128KStep) *ST program not included

Inrush Current

30A Peak

Permissible Instantaneous Power Failure Time

50 ms

Dielectric Strength - Between power and FE terminals

1,500V AC, 1 minute

Dielectric Strength - Between output and FE terminals

3,000V AC, 1 minute

Dielectric Strength - Between power and input terminals

3,000V AC, 1 minute

Dielectric Strength - Between power and output terminals

3,000V AC, 1 minute

Dielectric Strength - Between input and output terminals

500V AC, 1 minute

Insulation Resistance - Between power and FE terminals

100MΩ or higher (1,000V DC megger)

Insulation Resistance - Between output and FE terminals

100MΩ or higher (1,000V DC megger)

Insulation Resistance - Between power and input terminals

100MΩ or higher (1,000V DC megger)

Insulation Resistance - Between power and output terminals

100MΩ or higher (1,000V DC megger)

Insulation Resistance - Between input and output terminals

100MΩ or higher (1,000V DC megger)

I/O Control Method

I/O Refresh, Directed by program instruction

Program Language

IL (Instruction List), LD (Ladder Diagram), SFC (Sequential Function Chart), FBD (Function Block Diagram), FBD Extension, ST (Structured Text)

Data Processing Method

32-bit (4 Bytes)

Instructions - Sequence

Instructions - Application

Processing Speed - LD

16 ns/Step

Processing Speed - MOV

33 ns/Step

Processing Speed - Floating-point Arithmetic

+, -, x, / : 41 ns/Step

Floating-Point Arithmetic

Supporting instructions for floating-point arithmetic

Number of Program Blocks

Maximum 128 blocks

Max Expansion Blocks

CPU + Max 15 expansion blocks

Operation Mode

Remote Run, Remote Stop

Periodic Interruption

Maximum 15, cycle setting (1–60,000 ms, Unit: 1 ms), priority setting (0–14)

Data Preservation Against Power Failure

K device and retention (Latch) in M, L, T, C, S, D device
Devices that use the “Retain” option in the Global Variable

Watch Dog Timer (WDT)

10–10000 ms (Unit: 10 ms)

Restarting

Cold, Hot Restart

Timer

Cycle: 0.01 s-6,553.5 s (Either 10 or 100 ms)
On Delay, Addition, Monostable, Retriggerable

Counter

Counter range: -32,768–32,767
Up Counter, Down Counter, Up-Down Counter, Ring Counter

PID

64 Channels, Auto-Tuning

Comm. Channels - USB

USB 2.0 (C type): For Loader Protocol

Comm. Channels - Serial

RS-232C (Max 115,200 bps), RS-485 (Max 115,200 bps) 1 port each
CICON Loader, CIMON-HMI, Modbus RTU Master/Slave

Comm. Channels - Ethernet

10/100/1000Base-T/TX 2 ports
CICON Loader, CIMON-HMI, Modbus TCP Master/Slave

Event Log

Max 100 logs (Power, Mode, Error)

Etc.

I/O Reservation, RTC, Online Edit Option: SD/MMC Slot

Capacity of Scan Program

128k steps

RAM Backup

Backup Data: Program, Parameter, Latch data, Global var, clock data

RTC - Battery

Lithium primary battery (CR2032)

RTC - Battery Life

Approx. 8 years

RTC - Replacability

Possible

Memory Card - Spec.

SD Memory Card: FAT32, 32 GB

Memory Card - Function

Firmware up/down grade, Program download, Device Memory Backup

Device Memory - X

Device Memory - Y

Device Memory - M

Device Memory - L

Device Memory - K

Device Memory - F

Device Memory - T

Device Memory - C

Device Memory - S

100*100 Steps

Device Memory - D

32767 Words (524,272)

Device Memory - Z

1024 Words

Device Memory - Q

512 Words

Device Memory - R

16 Words (Index)

Input Filter

3 to 200ms (selectable in increments of 1ms)

Subroutines

Yes

For/Next Loops

Yes

Math (Interger and Hex)

Yes

Self-Diagnosis

Monitoring process delay, WDT (Detects delay of scan time), Memory error,
I/O error, Low Battery Power ON/OFF Status

Password Security

Yes

Internal I/O Specifications

Input Voltage Range

24V, Tolerance : +20%

Rated I/O Voltage - DC Input

24 VDC

Rated I/O Voltage - Relay Output

250 VAC, 24 VDC

Rated I/O Voltage - TR Output

12 VDC, 24 VDC

Rated I/O Current - DC Input

4 mA

Rated I/O Current - Relay Output

1 point 2A, COM 5A

Rated I/O Current - TR Output

1 point 0.2A, COM 2A

On V/A - DC Input

19 VDC, 3 mA

Off V/A - DC Input

6 VDC, 1 mA

Response Time - DC Input

3 ms or less

Response Time - Relay Output

10 ms or less

Response Time - TR Output

1 ms or less

Operation Indicator - DC Input

Input ON, LED ON

Operation Indicator - Relay Output

Input ON, LED ON

Operation Indicator - TR Output

Input ON, LED ON

Insulation Method - DC Input

Photocoupler insulation

Insulation Method - Relay Output

Relay insulation

Insulation Method - TR Output

Photocoupler insulation

Input Method - DC Input

Sink/Source

Output Method - Relay Output

Relay

Output Method - TR Output

Sink/Source

Minumum Load Current

1 mA @ 5VDC

Input Impedance

6.45kΩ

Polarity Protection

Power input is reverse polarity protected

External Load for I/O Interconnection

Not needed

Signal Determination Method

Filtered

Effect of Improper Input Connection

Both sinking and sourcing input signals can be connected; therefore, a reverse connection does not cause damage. If any input exceeding the rated value is ap-
plied, permanent damage may be caused.

Cable Length Limit

No length limit

Connector Insertion Durability

50 times minimum

Antenna Requirements

N/A

Commons

1 (16 points/common) Isolated

Minimum Switching Load

1mA/5VDC

Initial Contact Resistance

Max. 30 mΩ (By voltage drop 6 VDC 1A)

Electrical Life

Min. 100,000 (3 A 250 VAC, 30 VDC, resistive load)
Min. 50,000 (5 A 250 VAC, 30 VDC, resistive load) (at 20 times/min.)

Mechanical Life

Min. 20,000,000 (at 180 times/min.)

Rated Load

Resistive load - 250VAC 5A, 30 VDC 5A

Output Voltage Range - TR

12-24 VDC

Output Delay - Turn ON Time

Sink: 30μs, Source: 3μs

Output Delay - Turn OFF Time

Sink: 3μs, Source: 30μs

Voltage Drop (ON Voltage)

1.6V max 0.2A, 0.3V max 0.1A

Inrush Current

0.2A

Leakage Current

0.1mA maximum

Overcurrent Protection

No

External Current Draw

2A maximum, 12-24 VDC

Environmental

Operating Temperature

-20 – +70 °C (+14 – +149 °F)

Storage Temperature

-25 – +80 °C (-13 – +176 °F)

Operating / Storage Relative Humidity

5 – 95% Non-condensing

Shock

Max. impact acceleration: 147 m/s2 (15G)
Authorized time: 11 ms
Pulse wave: Sign half-wave pulse (3 times each in X,Y,Z)

Shock Standard

IEC 61131-2

Vibration

0.5G - Continuous
1G - Discontinuous

Vibration Standard

IEC 61131-2

Square Wave Impulse Noise

±2 kV

ESD Immunity

±4 kV - Contact Discharges
±8 kV - Air Discharges

ESD Standard

IEC 61131-2
IEC 61000-4-2

Radiated Electromagnetic Immunity

80–1000 MHz, 10 V/m

Radiated Electromagnetic Immunity Standard

IEC 61131-2
IEC 61000-4-3

Surge Transient Immunity

2 kV - CPU, Power
2 kV - Discrete I/O (VAC)
1 kV - Discrete I/O (VDC)
1 kV - Communication

Surge Transient Immunity Standard

IEC 61131-2
IEC 61000-4-4

Environmental Conditions

No corrosive gas and no dust

Altitude

2,000 m or less

Pollution

Pollution Degree 2 or less

Cooling

Natural Air Cooling

Emissions Standard

EN
IEC 61000-6-4:2019

Physical

Product Dimensions (H x W x D)

90 x 56 x 60 mm (3.5 x 2.2 x 2.4 in)

Product Weight

180 g (0.40 lb)

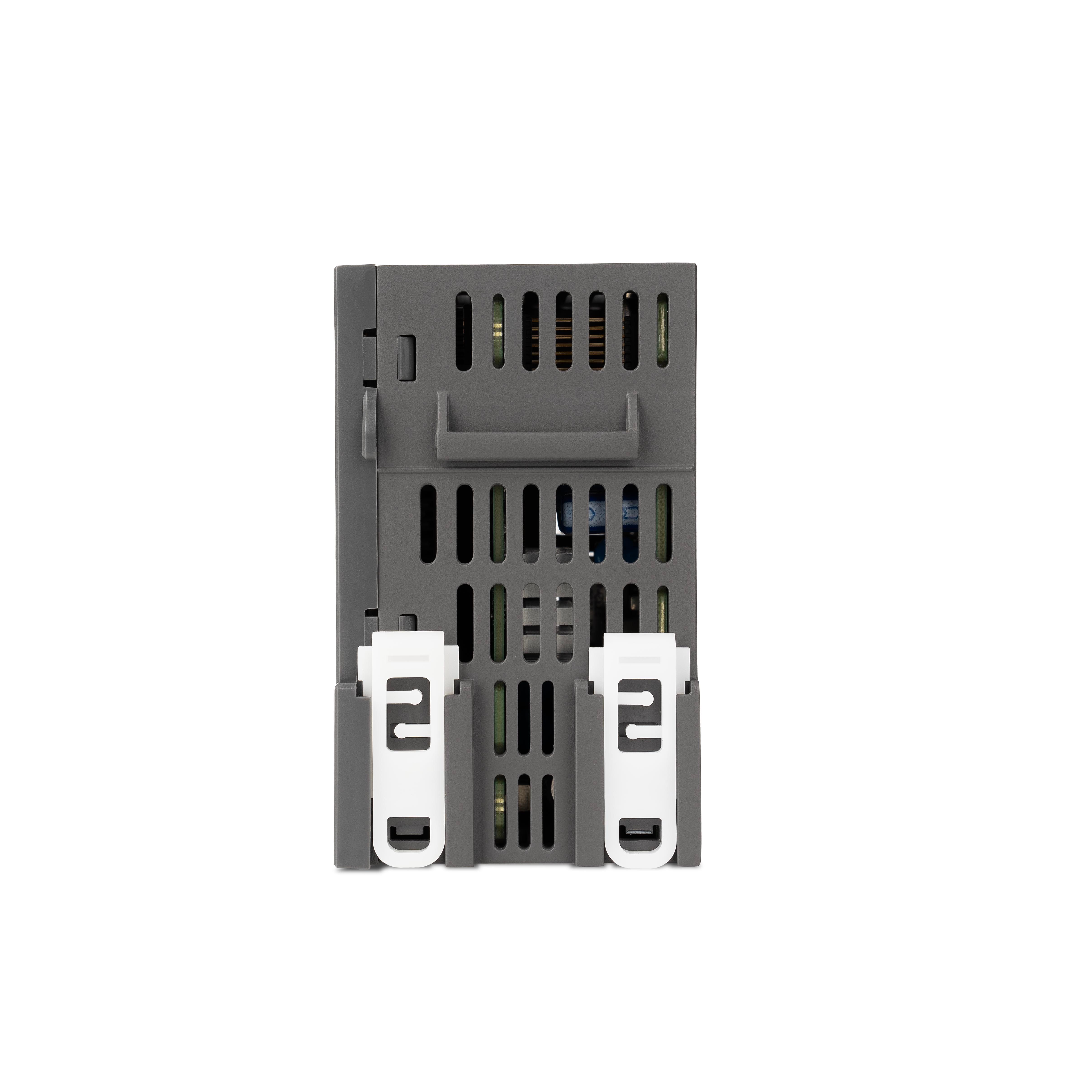

Mounting

DIN rail
