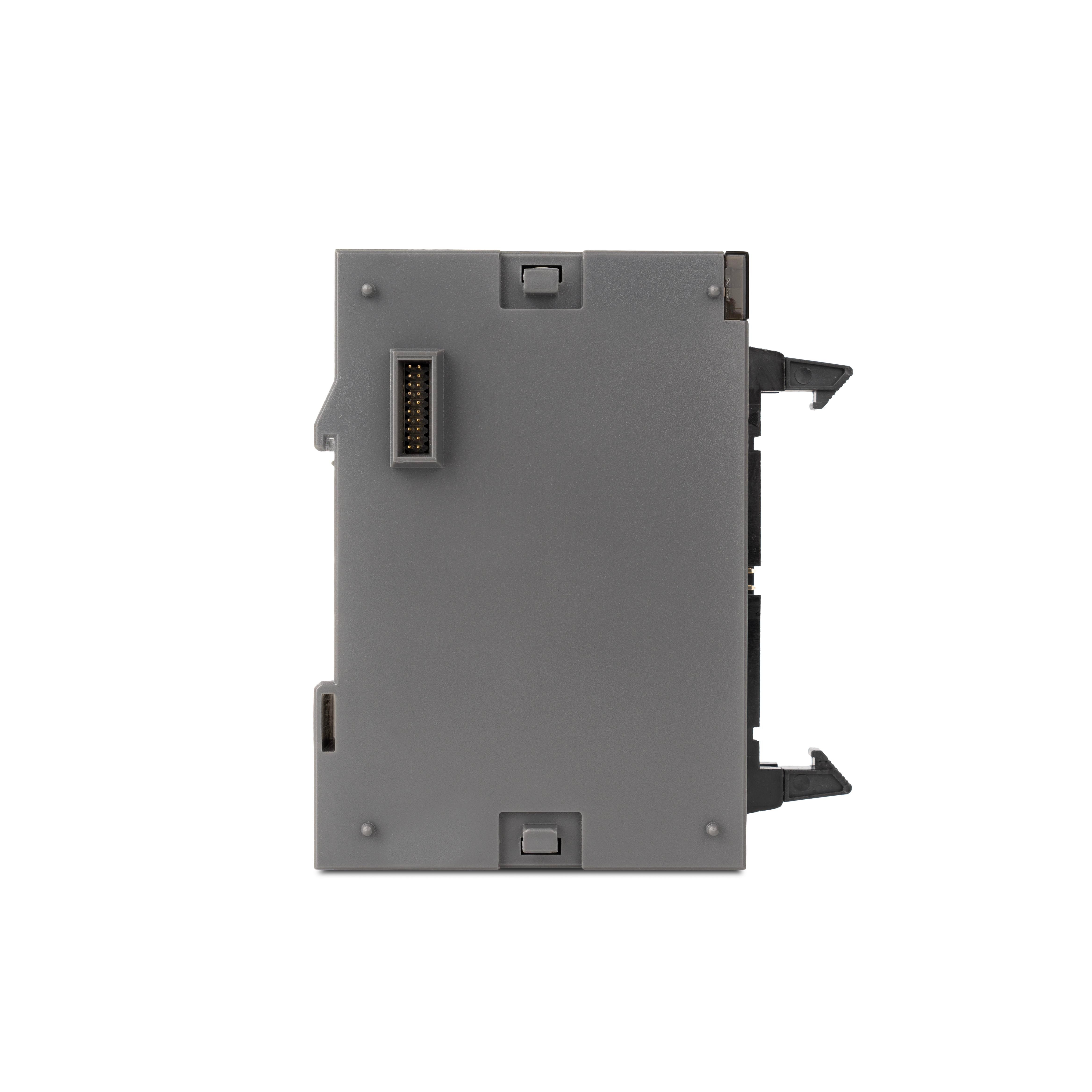

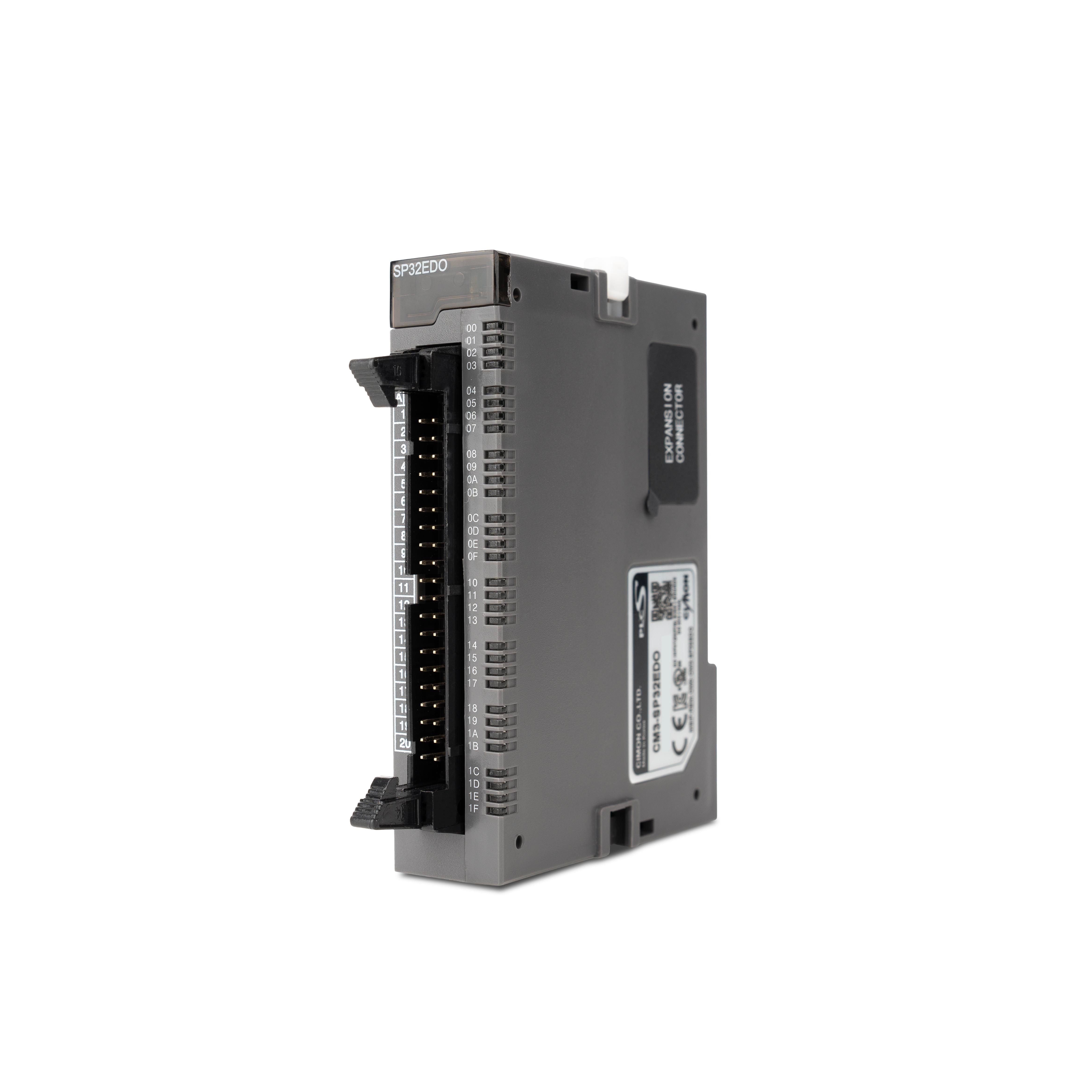

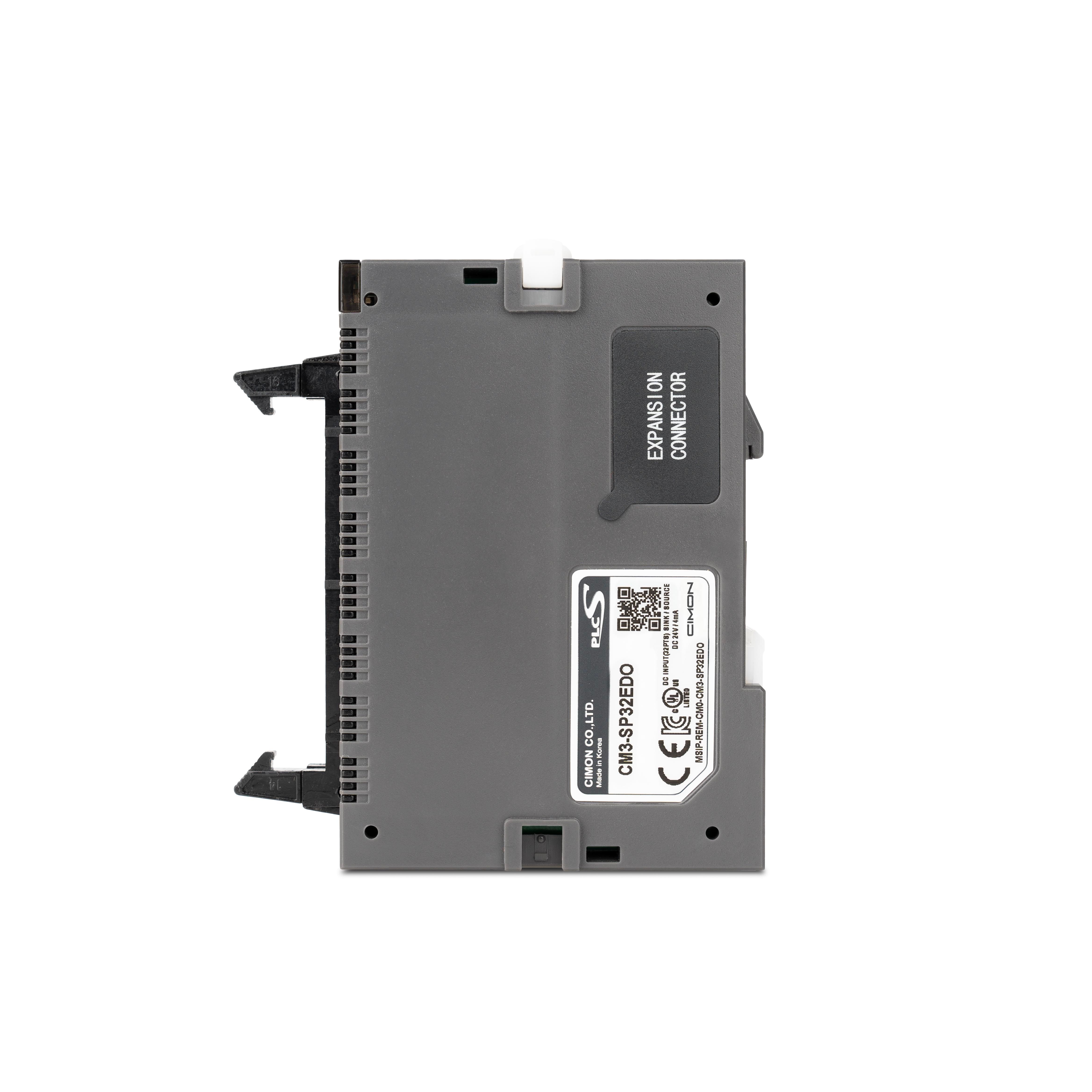

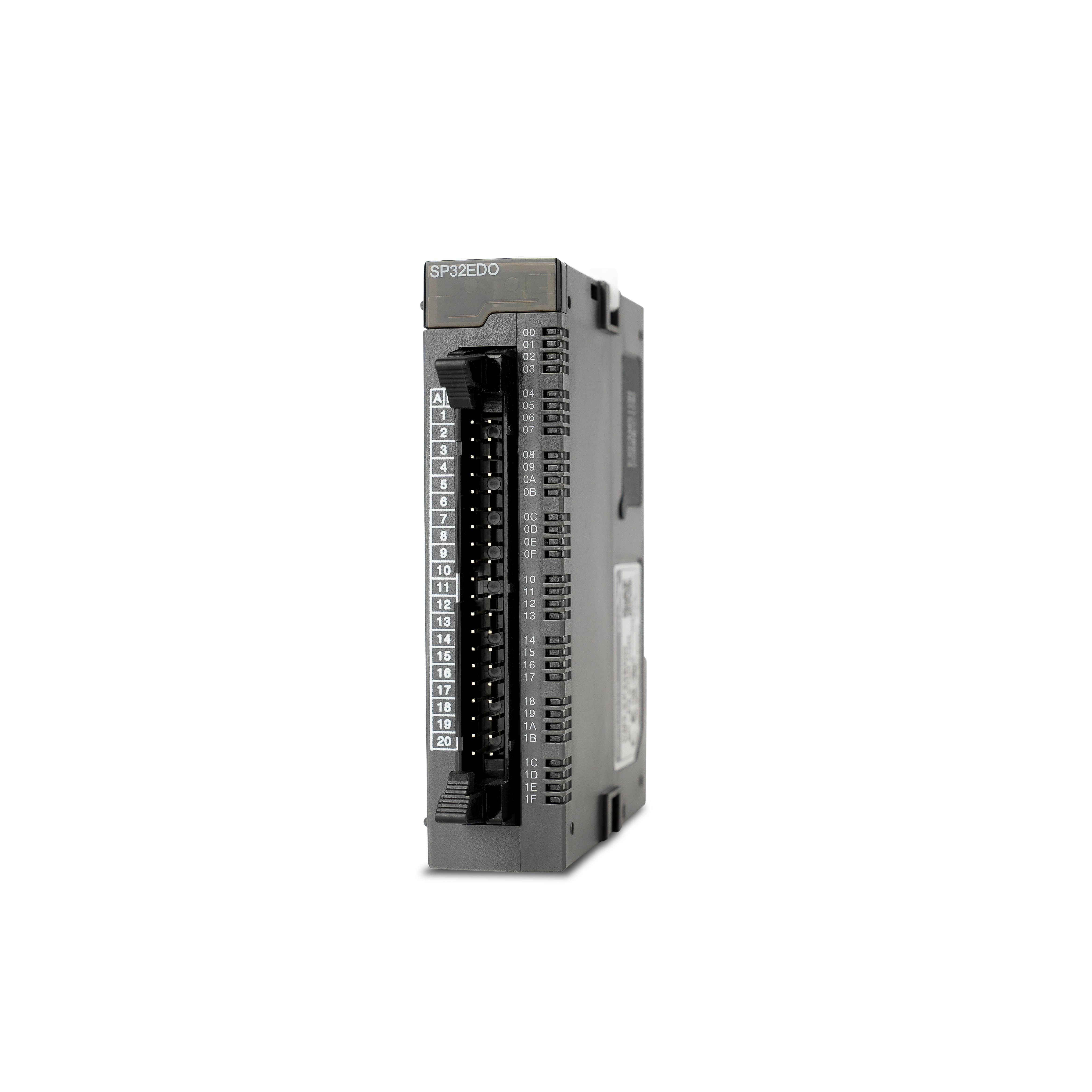

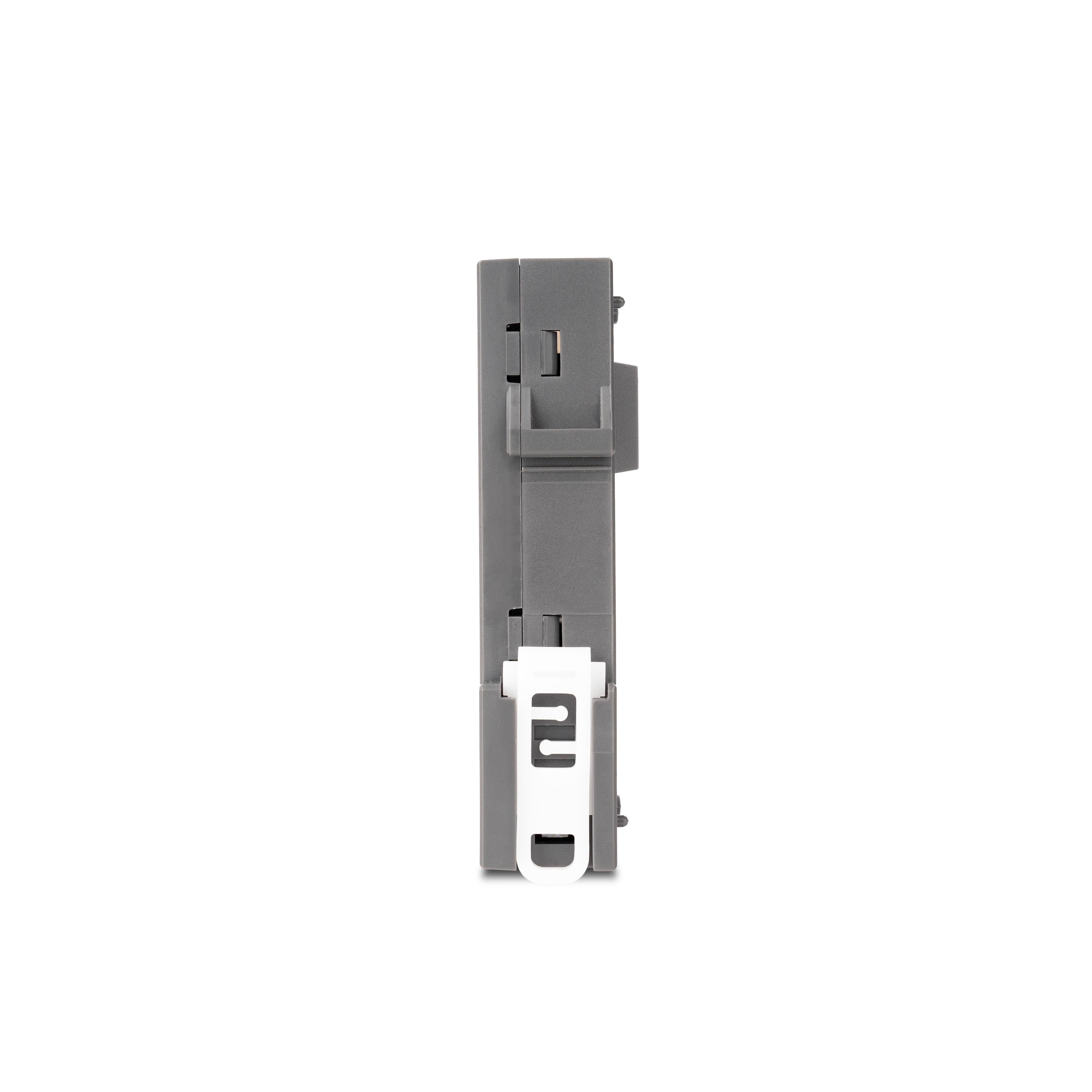

CM3-SP32EDO
Digital Input Expansion Module, Sinking/Sourcing Input
- 32 Point
- 24 VDC
- Sink/Source
- CM0-TB32M terminal block and CM0-SCB15M connection cable required
PrintCM3-SP32EDO
Digital Input Expansion Module, Sinking/Sourcing Input
Print- 32 Point
- 24 VDC
- Sink/Source
- CM0-TB32M terminal block and CM0-SCB15M connection cable required
Specifications
Functional
Frequency Range (Guarantee Duty Cycle)
1 – 4000 Hz (pps)
Maximum Frequency
65 kHz (kpps)
Duty Cycle Resolution
0.0 – 100.0% (1/1000)
RAMP Control
Frequency RAMP, Duty Cycle RAMP Control
Rated I/O Voltage
24 VDC
Rated I/O Current
4 mA
Service Modbus Slave
Yes (TCP)
Response Time Off -> On
≤ 3 ms
Response Time On -> Off
≤ 3 ms
Insulation Method
Photocoupler
Discrete Input Voltage/Current Thresholds
ON 19 VDC/3 mA OFF 6 VDC/1 mA
Notes
There must be 32 or less relay outputs per PLC-S chassis. • The maximum number of CM3-SP16EOR expansion modules is 2. • The maximum number of CM3-SP16EDR expansion modules is 4.
Environmental
Operating Temperature
-10 – +65 °C (+14 – +149 °F)
Storage Temperature
-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous 1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
Square Wave Impulse Noise Standard
CIMON Standard
ESD Immunity
±4 kV - Contact Discharges ±8 kV - Air Discharges
ESD Immunity Standards
IEC 61131-2 IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2 IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2 IEC 61000-4-4
Physical
Product Dimensions (H x W x D)
90 x 20 x 60 mm (3.5 x 0.8 x 2.4 in)
Product Weight
74 g (0.16 lb)
