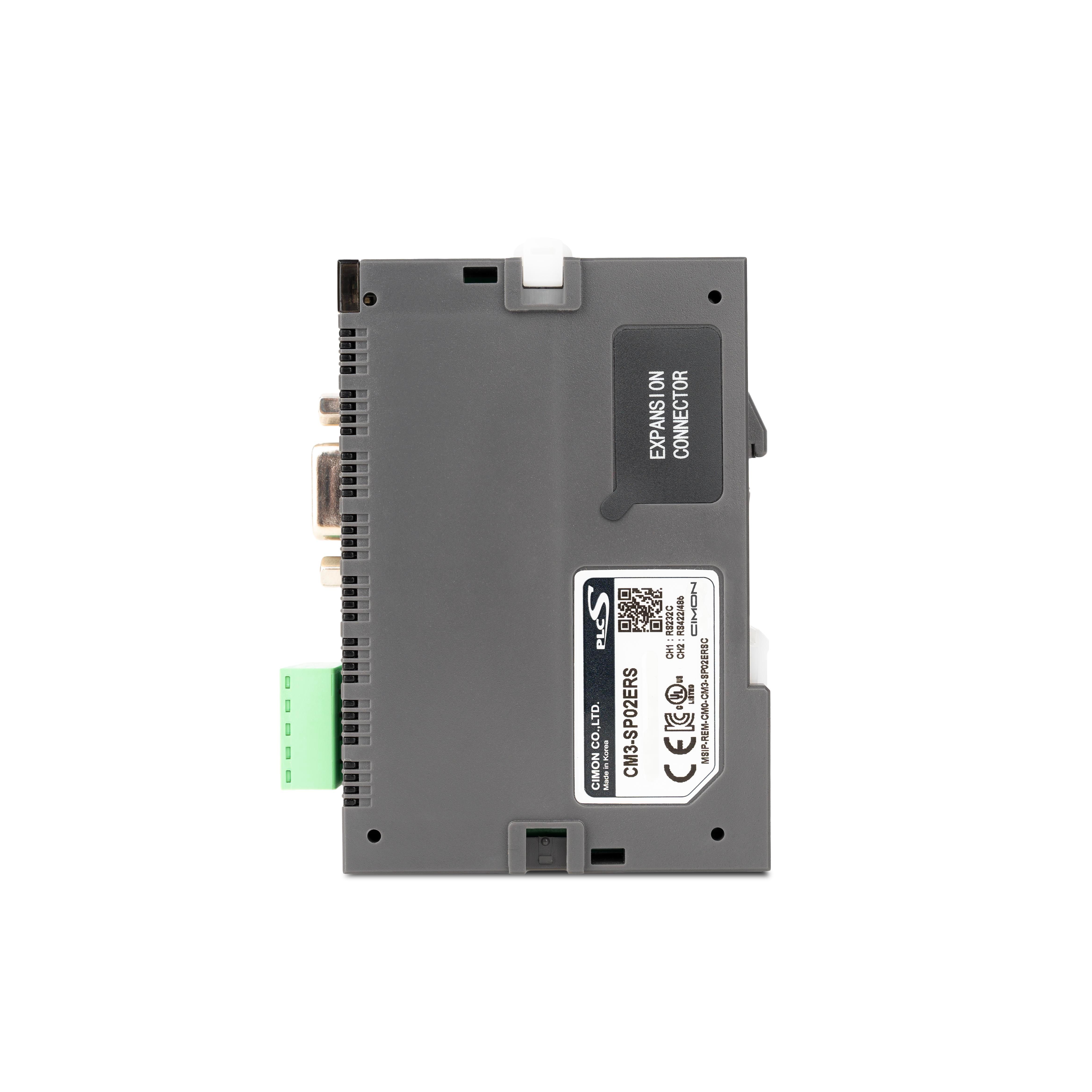

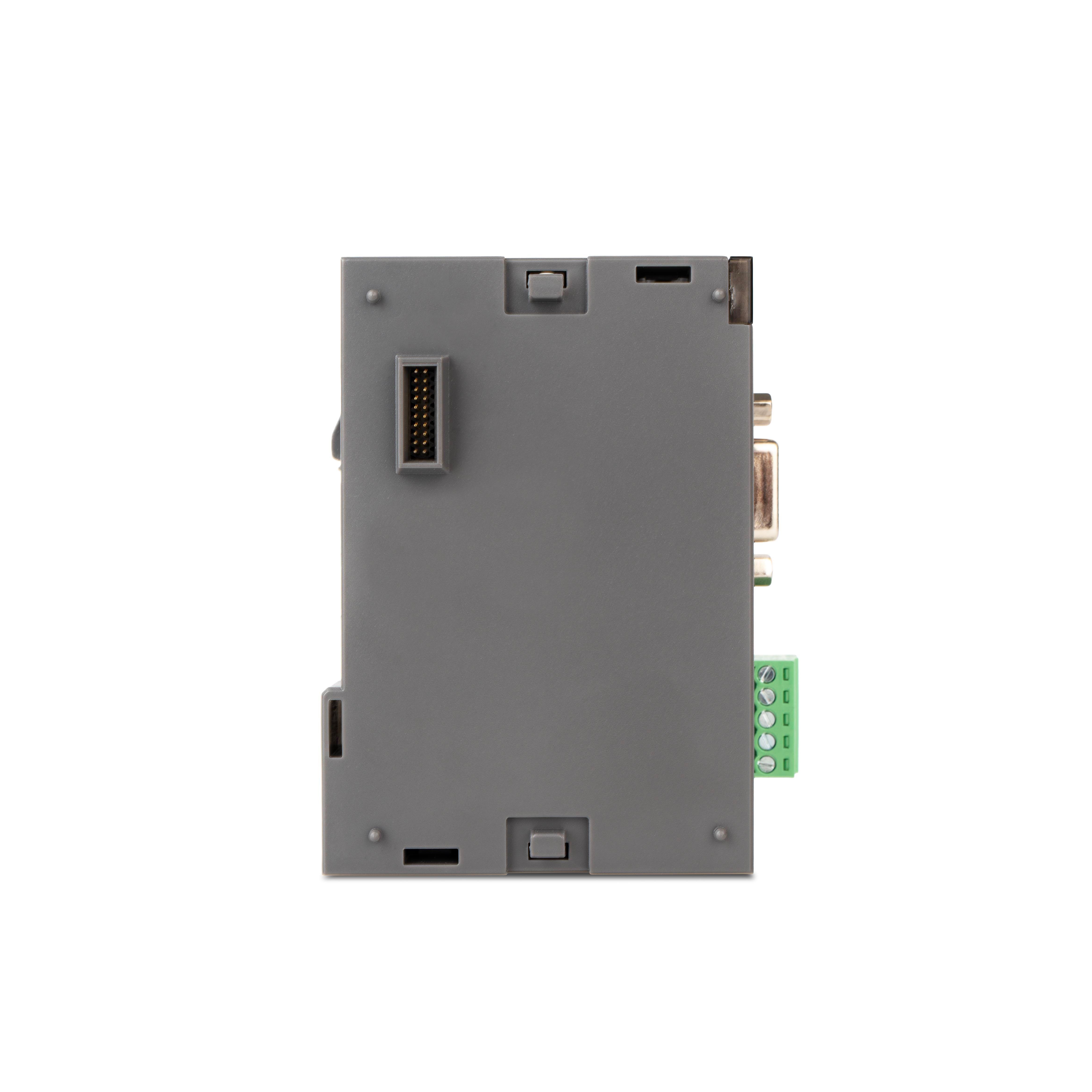

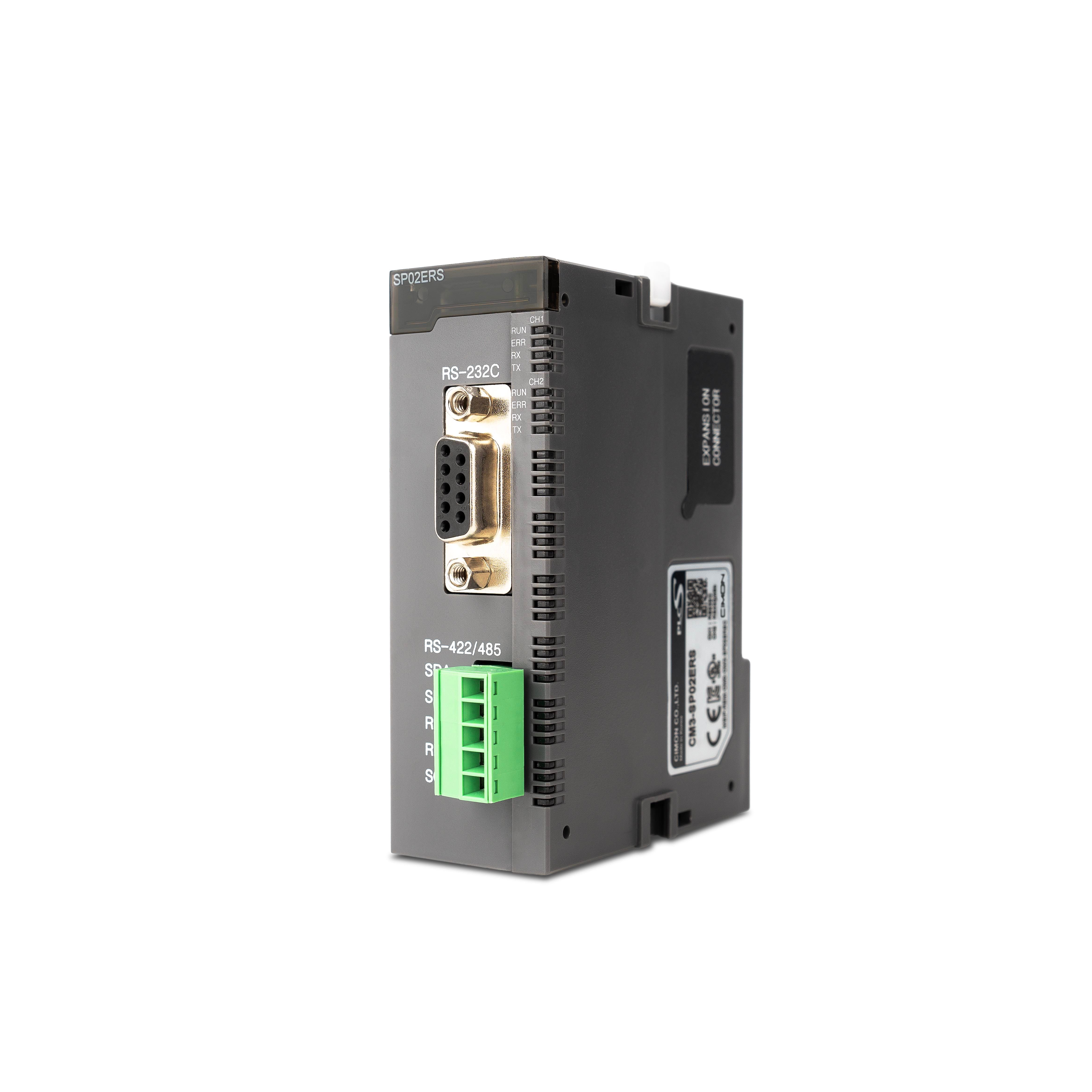

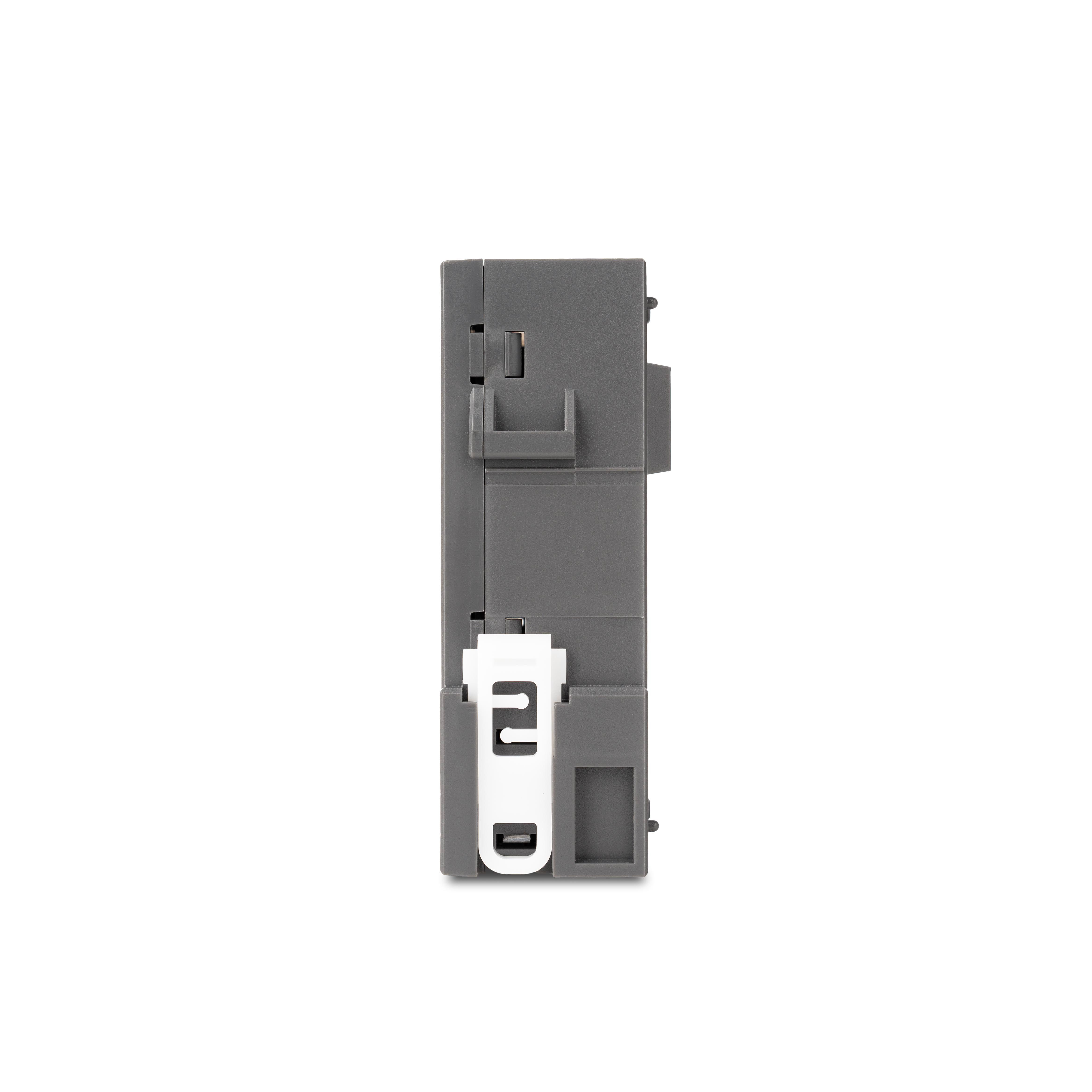

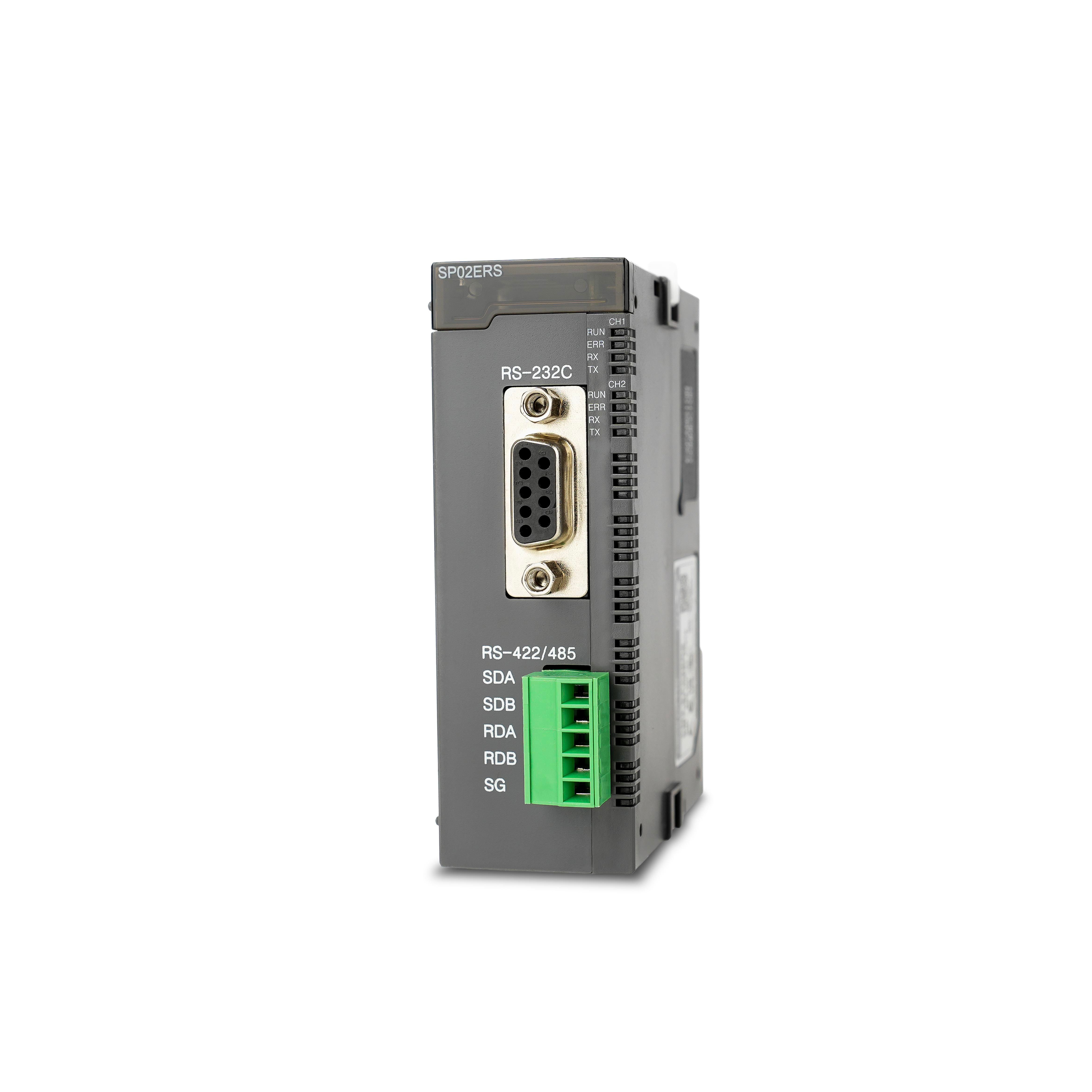

CM3-SP02ERS
Serial Expansion Module, RS-232, RS-422/485
- 1 RS232-C
- 1 RS422/485
- User Protocol RTU
- Modbus Master/Slave RTU
- Removable screw-based terminal blocks
PrintCM3-SP02ERS
Serial Expansion Module, RS-232, RS-422/485
Print- 1 RS232-C
- 1 RS422/485
- User Protocol RTU
- Modbus Master/Slave RTU
- Removable screw-based terminal blocks
Specifications
Functional
Interface Channel 1
RS-232C
Interface Channel 2
RS-422/485
Transmission Speed
1,200 - 38,400 bps
Service CIMON HMI
Yes
Service CIMON Loader
Yes
Service Modbus Master
Yes
Service Modbus Slave
Yes
Service User Protocol
Yes
Service PLC Link
No
Service High-Speed PLC Link
No
Environmental
Operating Temperature
-10 – +65 °C (+14 – +149 °F)
Storage Temperature
-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity
5 – 95% Non-condensing
Shock
15G
Shock Standard
IEC 61131-2
Vibration
0.5G - Continuous 1G - Discontinuous
Vibration Standard
IEC 61131-2
Square Wave Impulse Noise
±2 kV
Square Wave Impulse Noise Standard
CIMON Standard
ESD Immunity
±4 kV - Contact Discharges ±8 kV - Air Discharges
ESD Immunity Standards
IEC 61131-2 IEC 61000-4-2
Radiated Electromagnetic Immunity
80–1000 MHz, 10 V/m
Radiated Electromagnetic Immunity Standard
IEC 61131-2 IEC 61000-4-3
Surge Transient Immunity
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication
Surge Transient Immunity Standard
IEC 61131-2 IEC 61000-4-4
Physical
Product Dimensions (H x W x D)
90 x 30 x 60 mm (3.5 x 0.8 x 2.4 in)
Product Weight
34 g (0.07 lb)
